FPV Cage V2 For 14mm Cam (Carbon Only)
Price :
$
7.31
Propeller size :
None
Item List
-

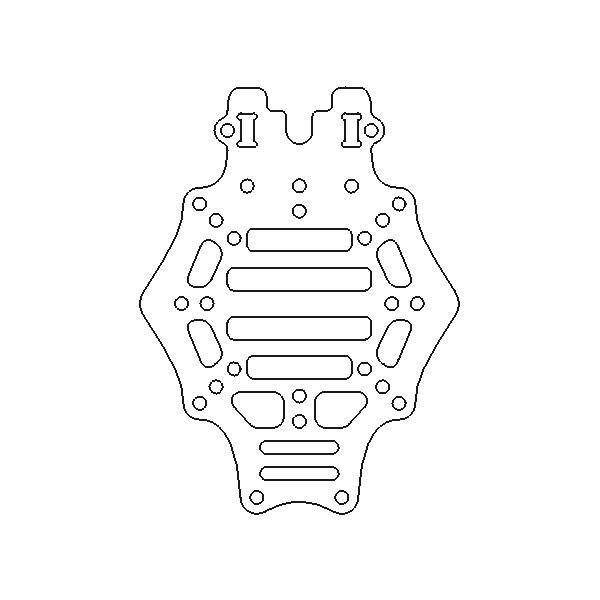

FPV CAGE V2 FOR 14MM CAM BASE PLATE 2MM
Quantity :1
-

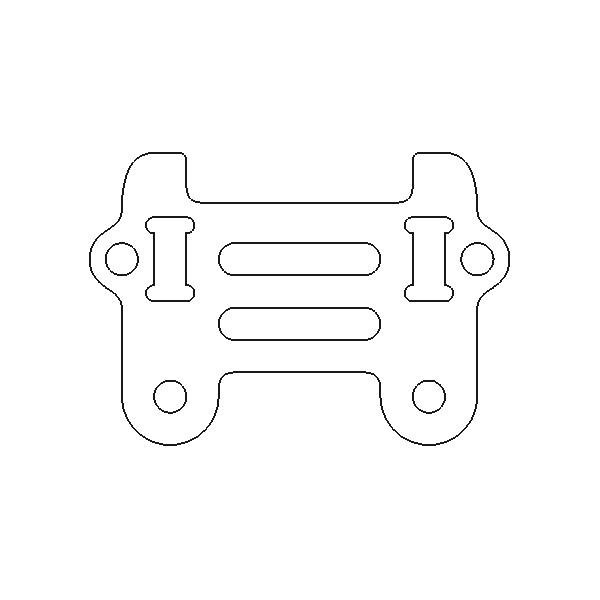

FPV CAGE V2 FOR 14MM CAM TOP PLATE 2MM
Quantity :1
-

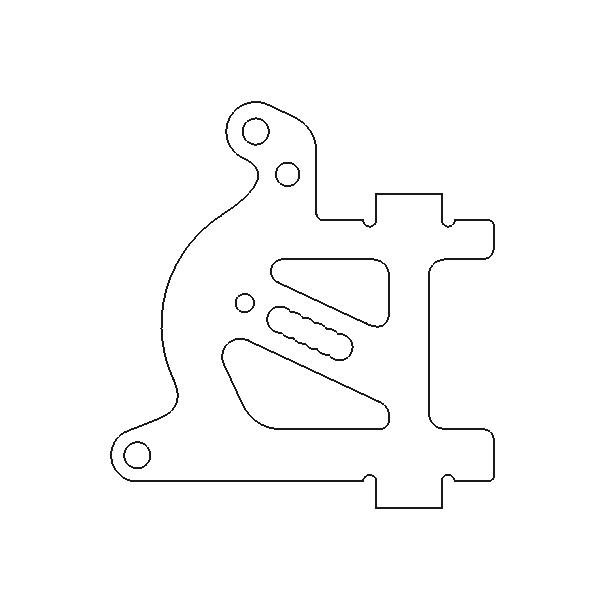

FPV CAGE V2 FOR 14MM CAM SIDE PLATE 2MM
Quantity :2
Description
This frame kit is designed to mount a nano-sized (14 mm wide) FPV camera and VTX on a simple Toothpick-like frame using appropriate length standoffs.
- Compatible camera width : 14mm
- VTX mount holes : 20x20mm, 25.5x25.5mm, M2
- Thickness : 2mm
- Weight : Approx. 7.5g (Carbon only)
- Necessary Standoffs : 4 M2x20mm, 2 M2x14mm
Note: The side plates may not be able to be inserted into the top plate or base plate because the thickness varies from lot to lot. If this is the case, please widen the insertion hole by filing. However, even if they are loose, it is not a problem as they are secured by the four standoffs on the camera mount.
Dimensions :
VTX Size 30x30mm :
VTX Size 33x33mm :
VTX Size 34x34mm :
Two configurations for camera :
