MFS - Martin Frame Studio
Solomons X3 Kit
Price :
$
16.12

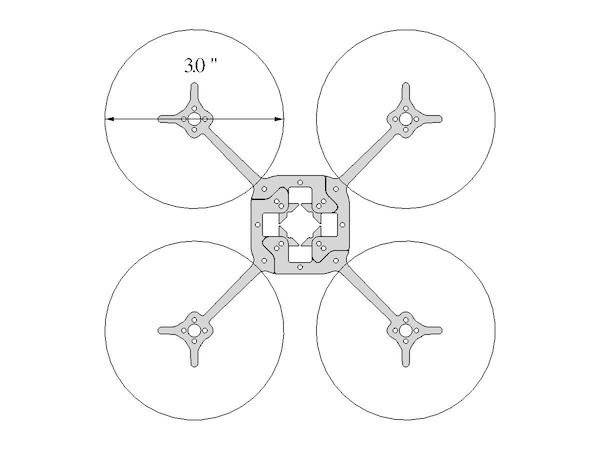

Propeller size :
3"
Item List
-
Solomons X3 Arm (Upper) 2mm
Quantity :4
-
Solomons X3 Arm (Lower) 2mm
Quantity :4
Description

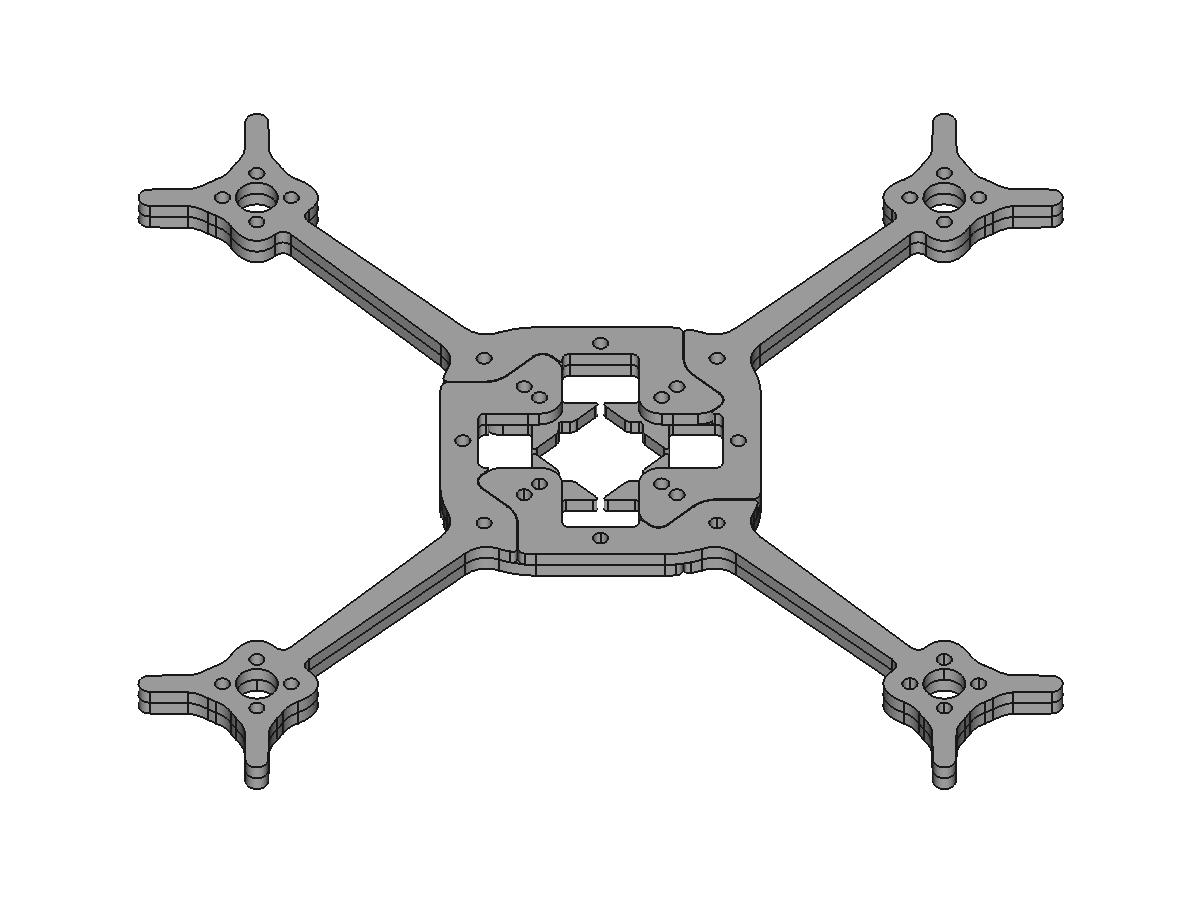

This frame kit is designed for a module type Toothpick frame with a flat unibody-like form. Consisting only of arms, screws, and nuts. Each two-layered arm is supported not only by two adjacent arms but also by its diagonal arm. Replacing broken arms is not as easy as with a regular frame, but the interlocking of the eight modules eliminates the need for upper and lower plates for fixing.

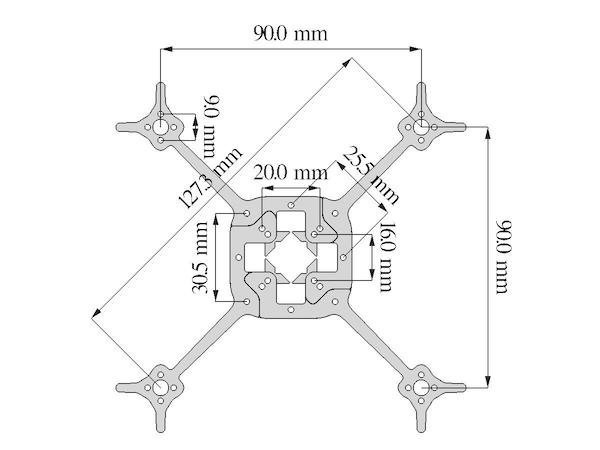

- Wheelbase : 127.3mm
- Total thickness : 4mm (2mm each layer)
- Motor mount : φ9mm, M2
- FC mount : 25.5x25.5mm, 20x20mm, 16x16mm
- Compatible with whoop style USB connector
- Built-in battery strap holder (can use up to 10mm width strap)
- Weight : Approx. 14g (Carbon only)
Dimensions :
Lower Layer :
Upper Layer :
