Tyson super six
Item List
-
top plate 1.5mm
Quantity :1
-
front arm 6 mm
Quantity :2
-
rear arm 6 mm
Quantity :2
-
front plate 2mm
Quantity :1
-
rear plate 2mm
Quantity :1
Description

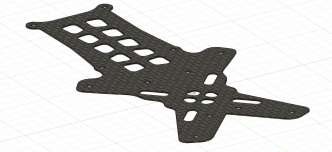

the tyson supersix is a light, compact and very resistant 6 inch quad! the 6 mm thick arms give excellent rigidity to the frame avoiding annoying vibrations and resonances ... the frame has suitable fixing holes for the dji 03 unit (but also other vtx with 20x20 or 25.5x25.5 holes) also they are not there are propellers in the fov of the camera 03. as regards the stack, the holes foresee installation from 20x20 m2 to 30.5x30.5 m3. the entire frame is assembled on m2 hardware. the frame weighs 96 grams, complete build about 399 grams.
Additional Information
to complete the frame you will need
4 m2 x 20mm standoffs and 4 m2 x 28mm standoffs
https://a.aliexpress.com/_Eyafd2Z
16 m2 x 6mm screws
8 m2 x 10mm screws
https://a.aliexpress.com/_Ev8RjJx
8 pressnuts m2
https://betafpv.com/products/m2-clamping-nuts
x dji o3 4 screws m1.6 x 10 mm
https://a.aliexpress.com/_EwI5NKD
for any other info, for the stl, etc ... you can contact me on social networks
facebook : stefano run , page RUN FPV , group TEAM TYSON
instagram : stefano run
