Bolter FPV 2020 Season Race Frame
Price :
$
46.99
Propeller size :
5"
Item List
-
Mid Plate 2.5mm Sunknuts
Quantity :1
-
Brace Plate 2.5mm - Along the weave
Quantity :1
-
Roll Cage 2.5mm
Quantity :2
-
Wiggle Plate 3mm
Quantity :1
-
Back Arm 5mm
Quantity :2
-
Front Arm 5mm
Quantity :2
-
11mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
-
7mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
-
14mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
-
20mm M3 F/F Alumi Tapped Stepped Standoff Black Anodized 5.5mm O.D.
Quantity :4
-
M3 Stainless Steel Sunk Nuts (per piece)
Quantity :12
-
M2 Nylon Washer (per piece)
Quantity :2
-
5mm M2 Steel Cap Head Bolt Black Anodized (per piece)
Quantity :4
-
6mm M3 Steel Button Head Bolt Black Anodized
Quantity :8
Description

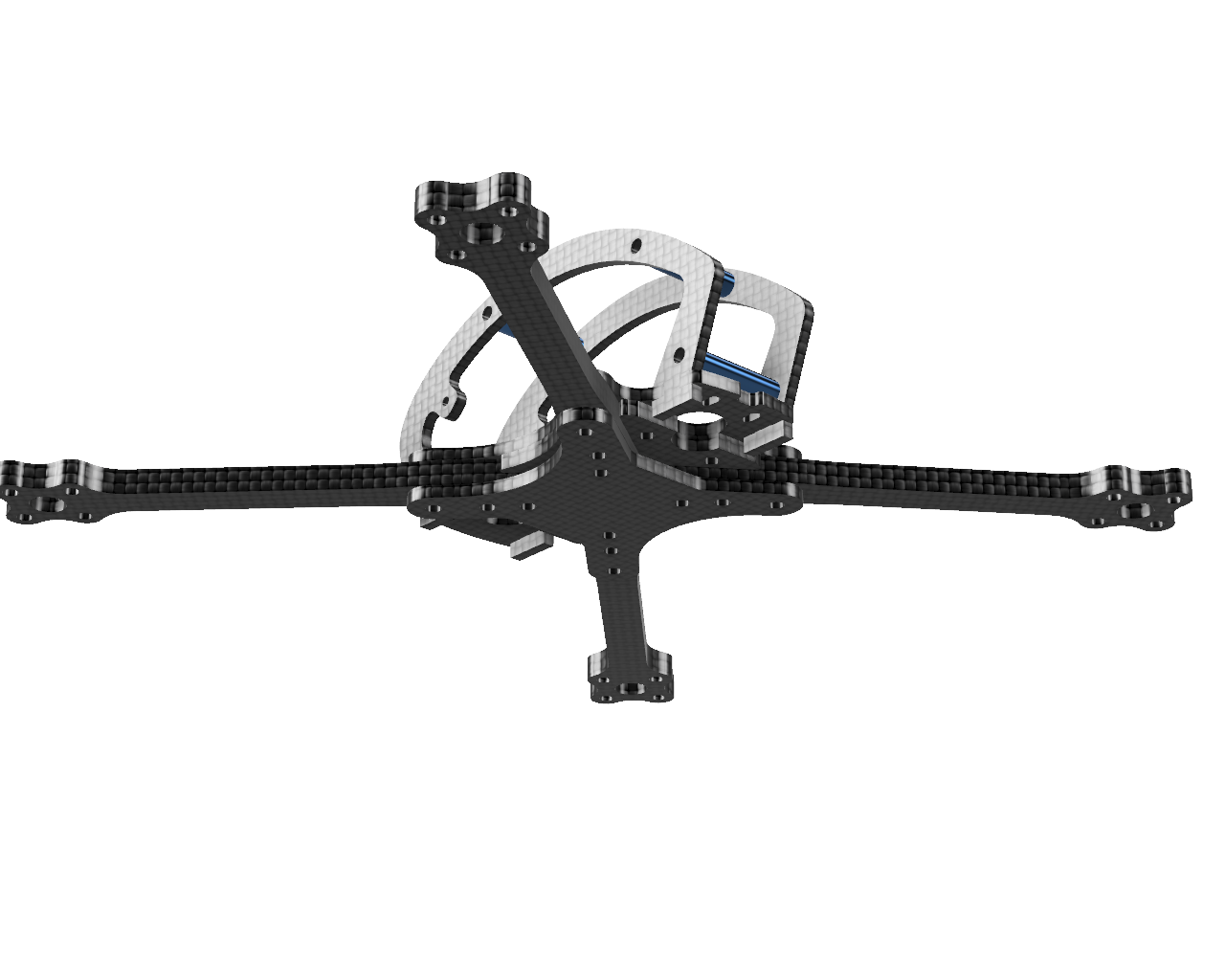

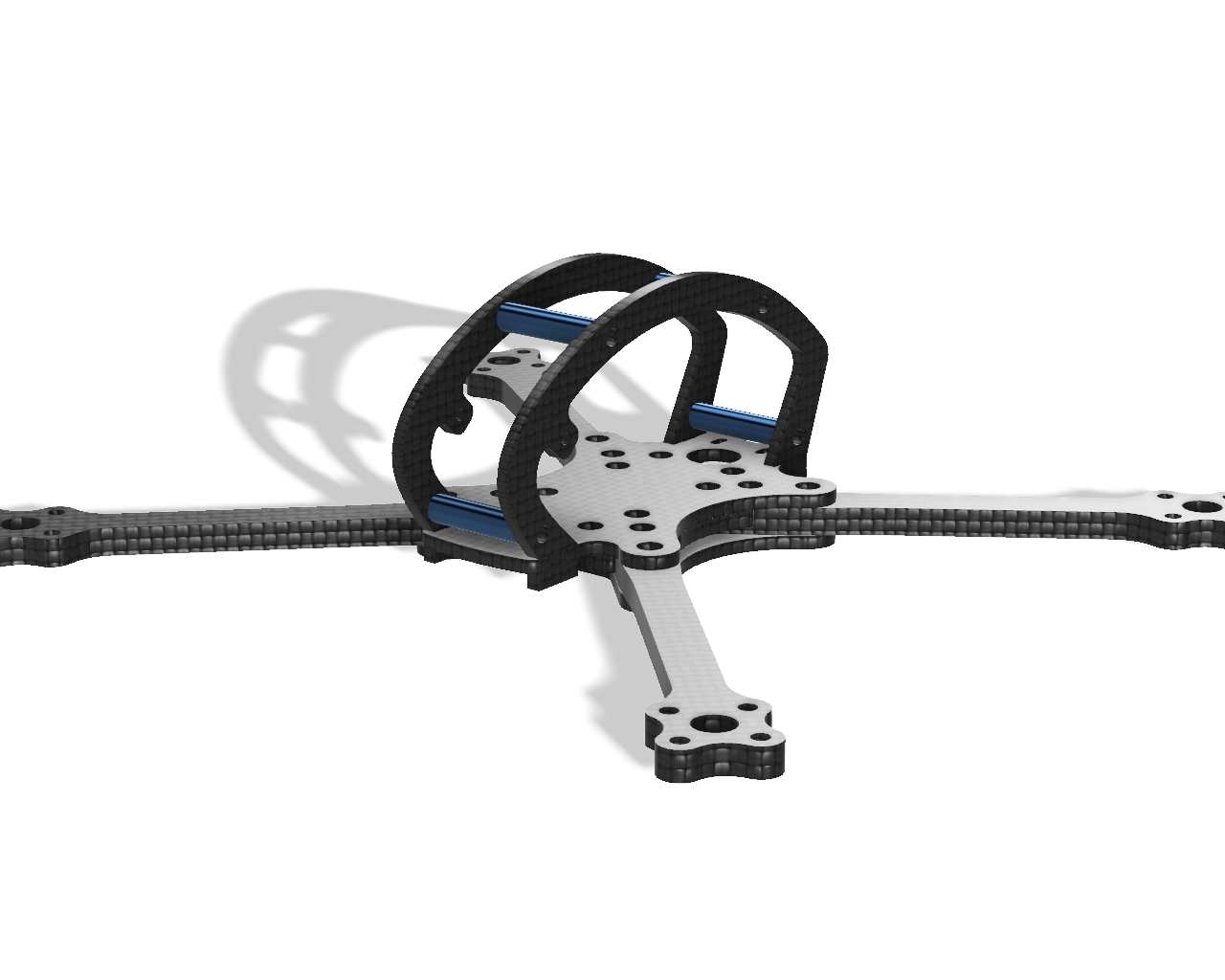

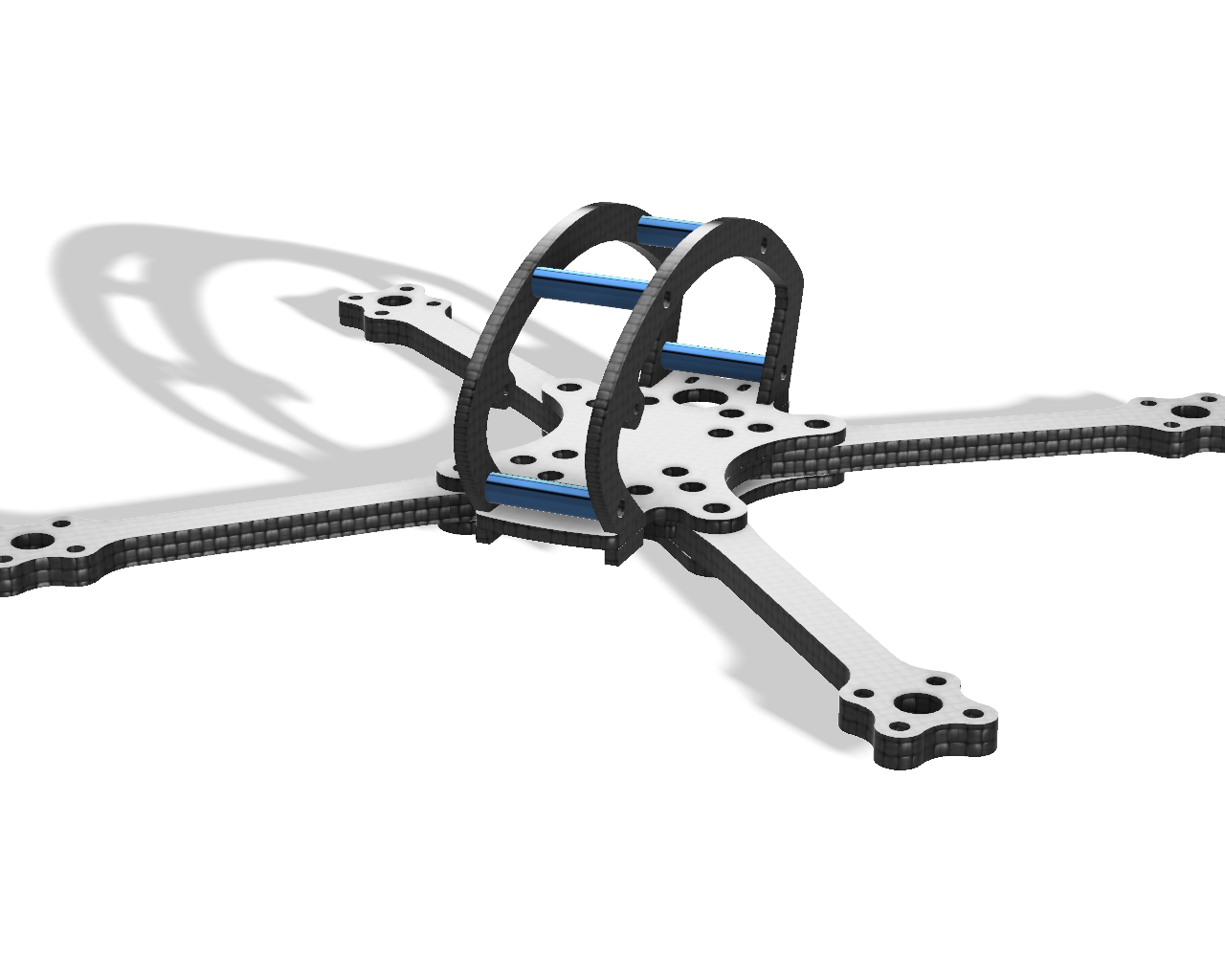

Bolter FPV 2020 Season Race Frame
Featuring:
- Roll Cage Design
- 5mm Arms
- Wiggle Plate - Rigidity and stiffness - Reduces arm wiggle and slop
- 20x20 and 30.5x30.5 electronics mounting
- 16x16 motor mounting only - suitable for most modern motors
- Supports 5.1 inch propellers
Requires 1mm thick M2 washer for use with micro cameras. (included)

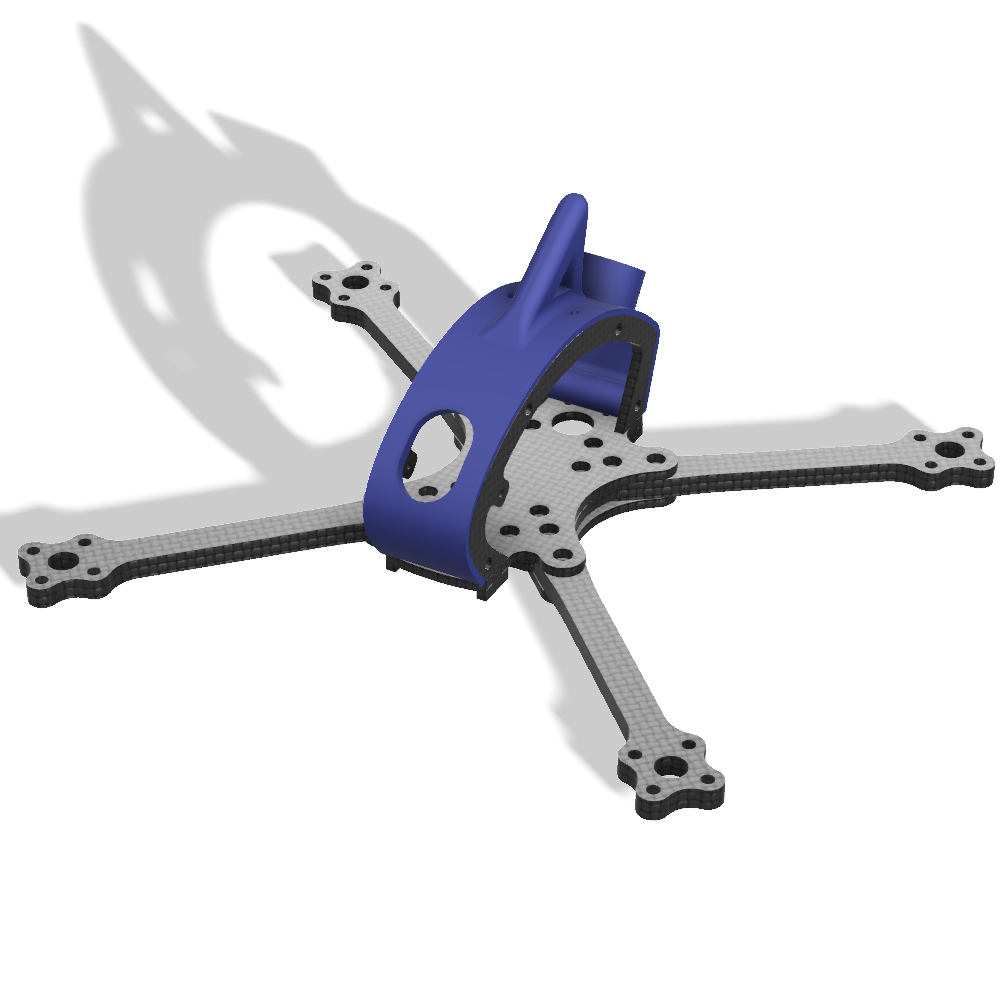

3D Printed Roll Cage Canopy (optional) (See Pictures Below) (Email me so I can send you the STL file for canopy)
3D Printed Roll Cage Canopy:
- Features both TBS Unify sma pigtail mount, and lumenier axii ufl mount.
- 30-70 degrees cam tilt
