Oliver- Gallery
northe
Item List
-

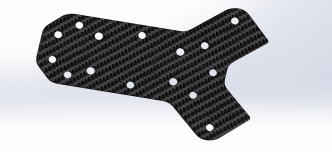

bottomplat north 4mm
Quantity :1
-

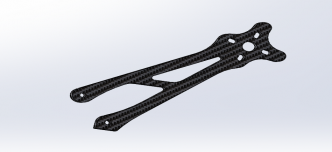

arm 4mm
Quantity :4
-

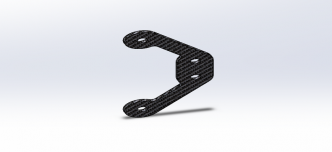

batbrase 1
Quantity :2
-

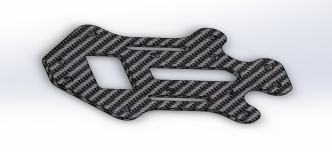

topplat 1
Quantity :1
-

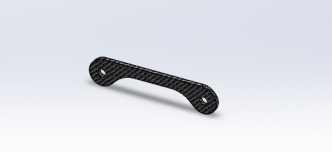

armebrace
Quantity :2
-
16mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
-
14mm M3 Steel Button Head Bolt Black Anodized
Quantity :2
-
12mm M3 Steel Button Head Bolt Black Anodized
Quantity :2
-
M3 Nylon Insert Nut Black Anodized (Nylock)
Quantity :4
-
20mm M3 F/F Alumi Tapped Stepped Standoff Black Anodized 5.5mm O.D.
Quantity :4
-
Quantity :4
Description
This is the first racing frame from RotoWorks. The split arm design with braces makes it a very durable quad designed to eat gate polls without breaking.
It is designed for 20x20 FC and ESC stacks with M3 holes. It is recommended to use a nano-sized RX (e.g. FrSky R-XSR or Crossfire Nano) and nano-sized VTX (e.g. TBS Nano).
The 3D printed parts are not included - they are necessary to complete the quad. The parts are camera mount, battery pad, and fin (for turtle mode). The antenna mount is designed for Foxeer Lollypop antennas. All 3D files can be downloaded from Thingiverse: https://www.thingiverse.com/RotoWorks/designs
Additional Information
Recommended screws:
2 x M3x12 socket head
2 x M3x16 socket head
Recommended parts:
FC: Aikon F4 20x20, BrainFPV Radix LI, maba ,succex f7,succex f4mini, flywoo f7 goku
ESC: Aikon 35A 20x20
Camera: Any micro sized (one thet can flip its vue 180degers)
VTX: TBS Nano32
RX: FrSky R-XSR, TBS Crossfire Nano
