JRCS Serenity 240 V2
Item List
-

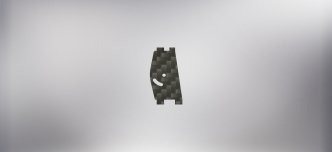

JRCS Serenity 240 Camera Support 2mm
Quantity :2
-
JRCS Serenity 240 Top Cover 2mm
Quantity :1
-

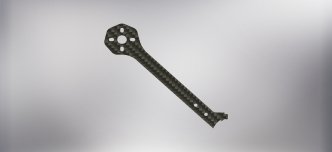

JRCS Serenity 240 Rear Left 4mm
Quantity :1
-

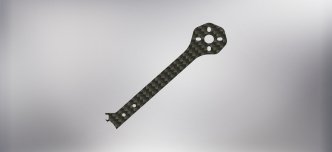

JRCS Serenity 240 Rear Right Arm 4mm
Quantity :1
-

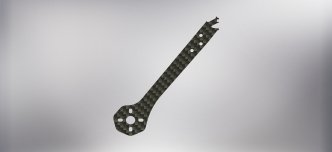

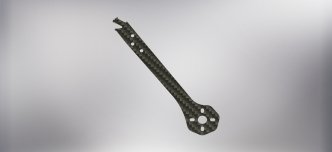

JRCS Serenity 240 Front Left Arm 4mm
Quantity :1
-
JRCS Serenity 240 Front Right Arm 4mm
Quantity :1
-

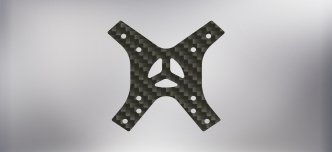

JRCS Serenity 240 Bottom Brace 4mm
Quantity :1
-

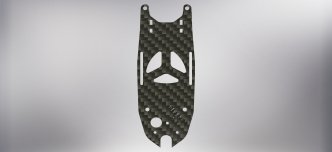

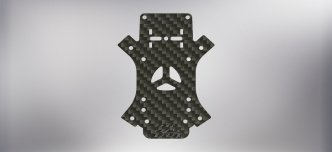

JRCS Serenity 240 Main Frame Body 3mm
Quantity :1
-
16mm M3 Steel Button Head Bolt Black Anodized
Quantity :12
-
M3 Nylon Insert Nut Black Anodized (Nylock)
Quantity :8
-
6mm M3 Steel Button Head Bolt Black Anodized
Quantity :10
-
30mm M3 F/F Alumi Tapped Stepped Standoff Black Anodized 6.3mm O.D.
Quantity :5
-
XT-60 Male Battery Connector
Quantity :1
-
6mm M3 M/F Nylon Standoff (per piece)
Quantity :14
-
M3 Nylon Nuts (per piece)
Quantity :5
Description

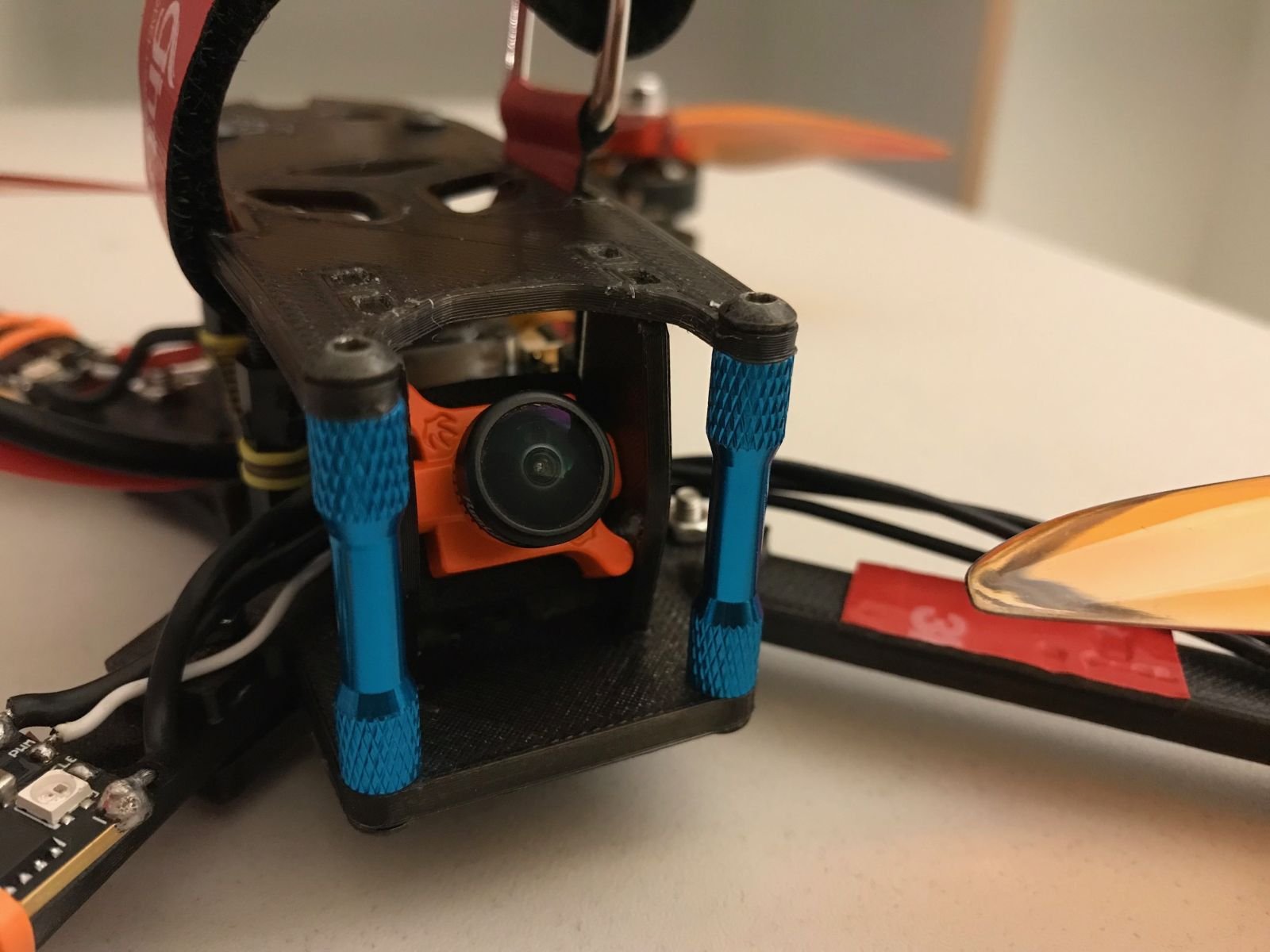

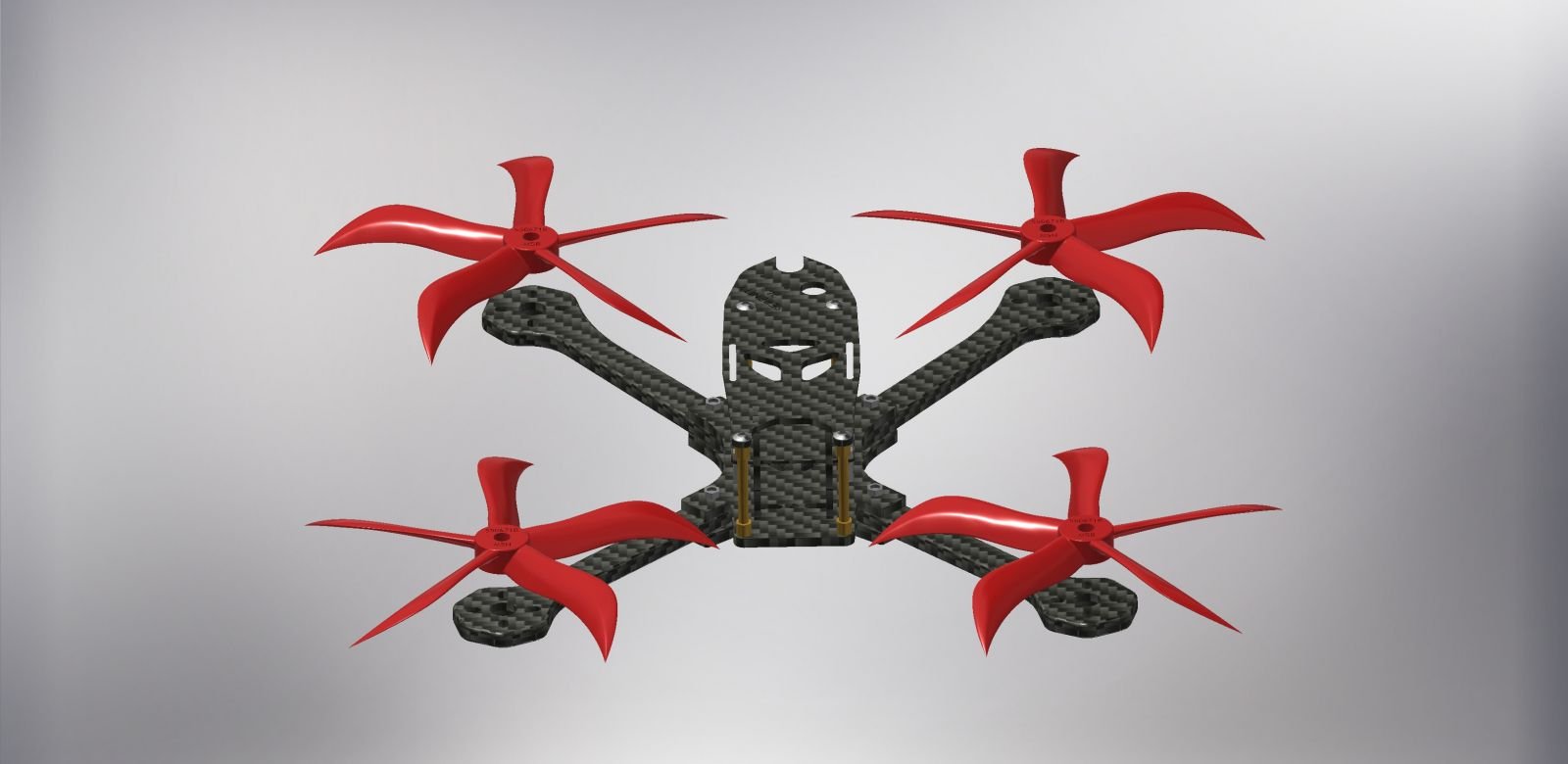

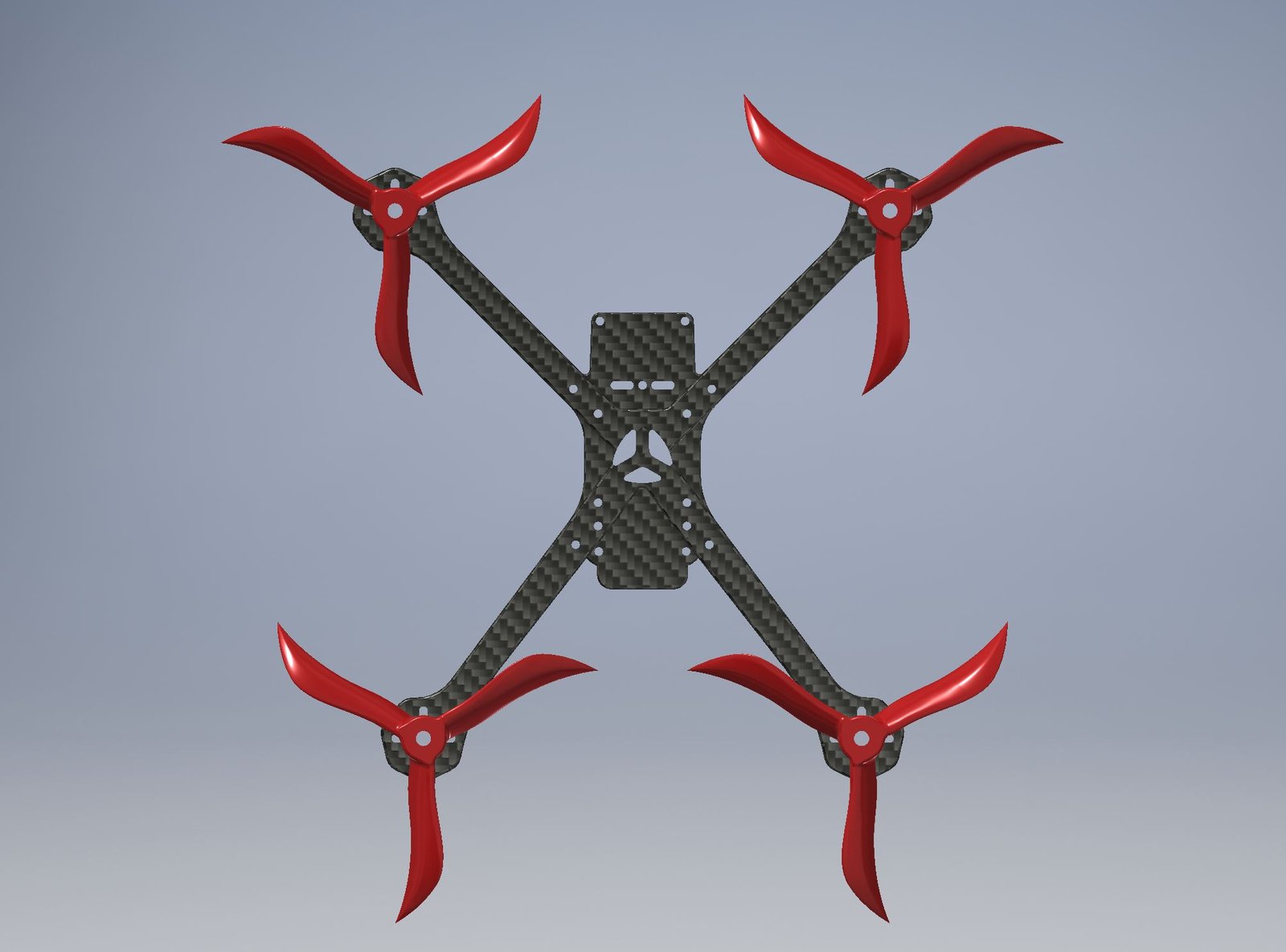

Fits 5-5.5inch props. Stretched X Butterfly style frame (e.g. slightly wider front arm angle than rear arm angle for propwash reduction at corner turns and other reasons). Featuring exact size mounting holes for RunCam Swift Mini 2 base mount.
©2019 Josefsson Radio Control Systems, PDvmt. Designed by Joss “zooroofpv” Kwok.
Additional Information
6mm button head screws for motor mounting required
Stick on M3 Landing pads optional

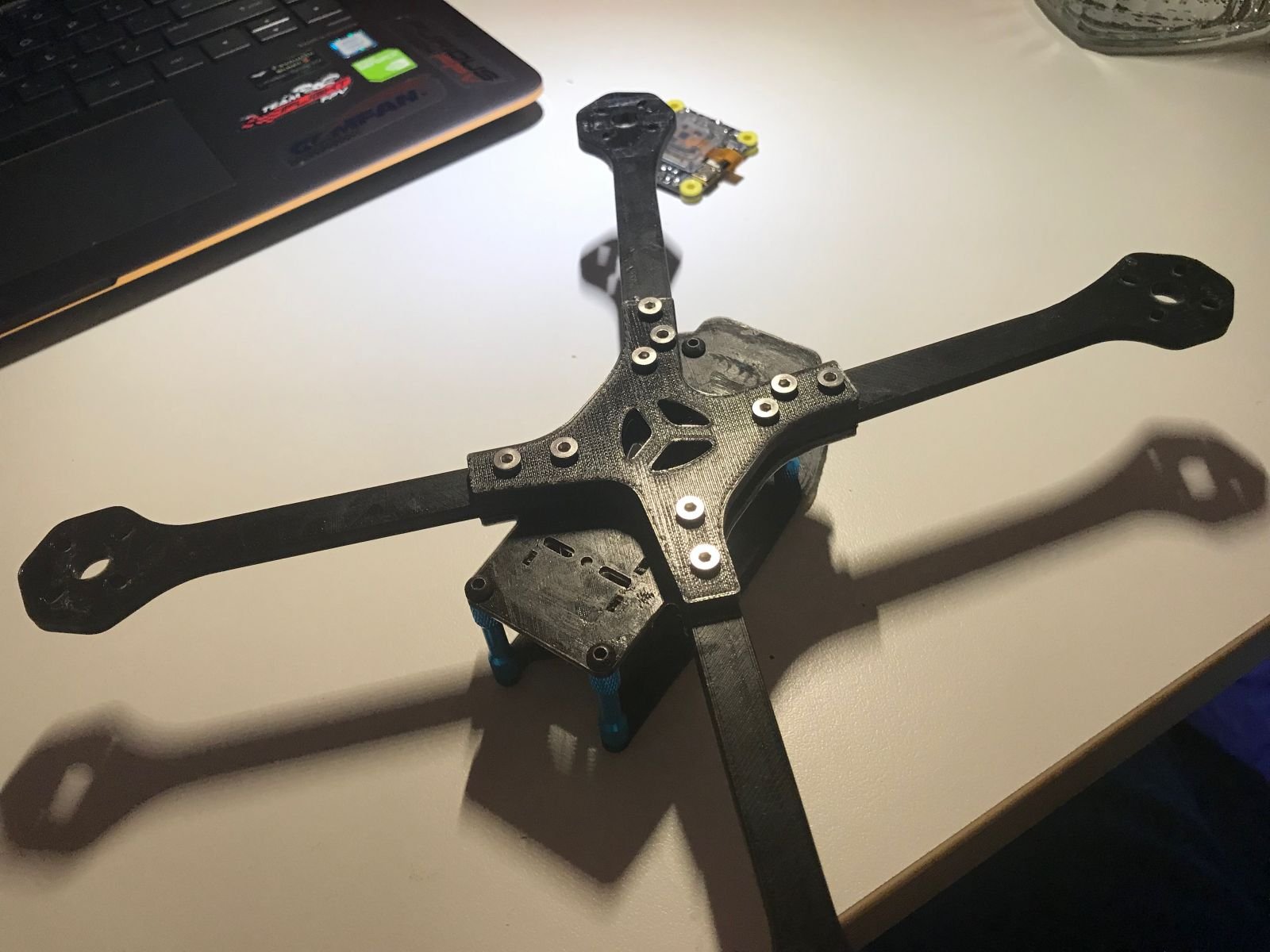

Hardware Assembly:
-6mm M3 button head screws for mounting 30mm standoff only, 8pcs reqd.

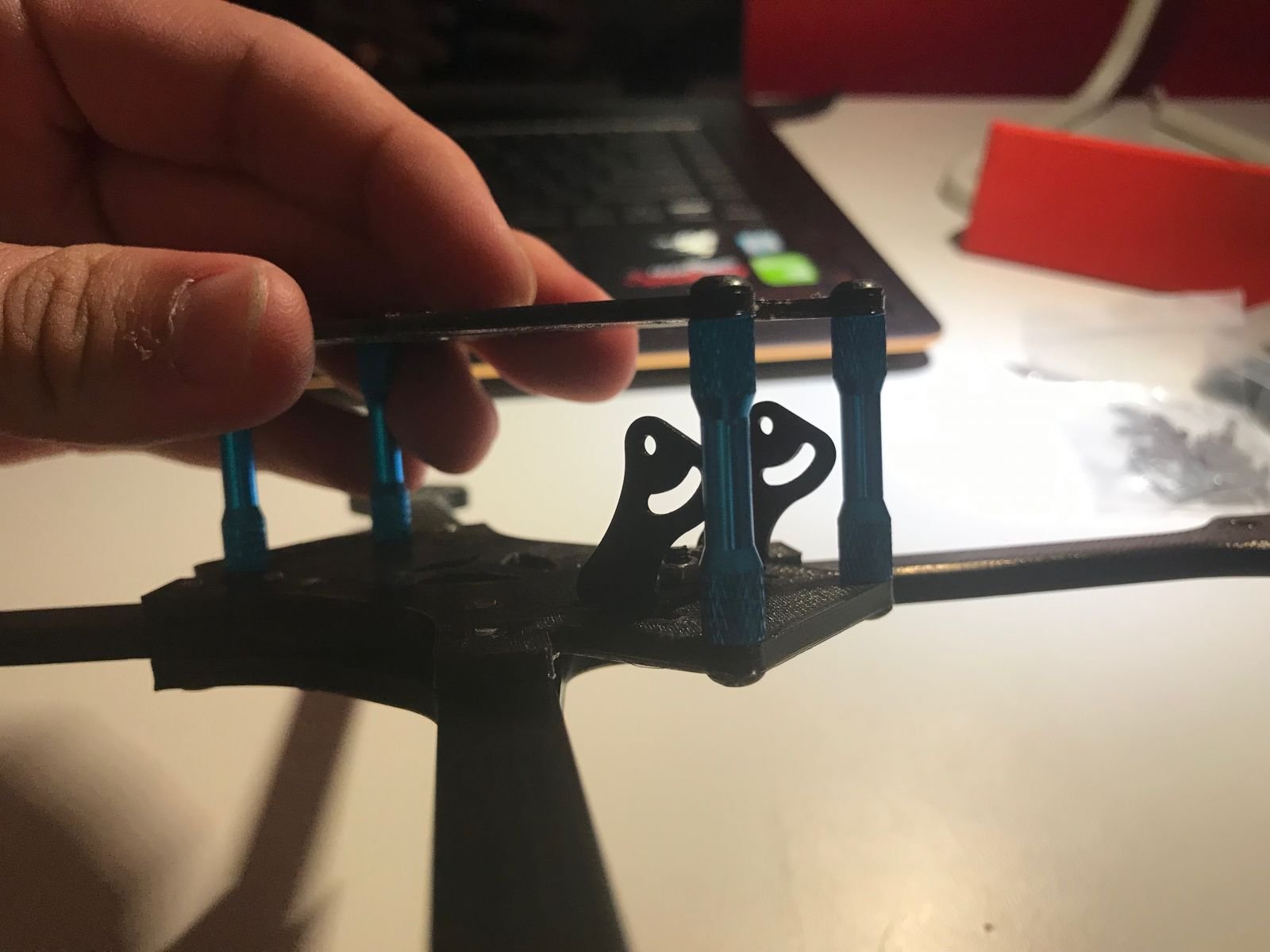

-30mm M3 standoffs, 1 on each outer corner of Main Body Plate, 4pcs reqd.
-16mm M3 button head screws for arm assembly only, outer 6 for arms, inner 4 for shared FC standoff mounting, 10pcs reqd.
-M3 stop nuts for capping the 6 outer arm screws only, 6pcs reqd.
-6mm nylon standoffs for core electronics mounting only, your descretion.
-M3 nylon nuts for capping top nylon standoffs, your descretion.
-XT60 battery plug for your convenience.
