skonkworx qwads
i design, test and tune my own frame desgins in 3-5" racing and acro airframes
lowRIDE airframe
Item List
-

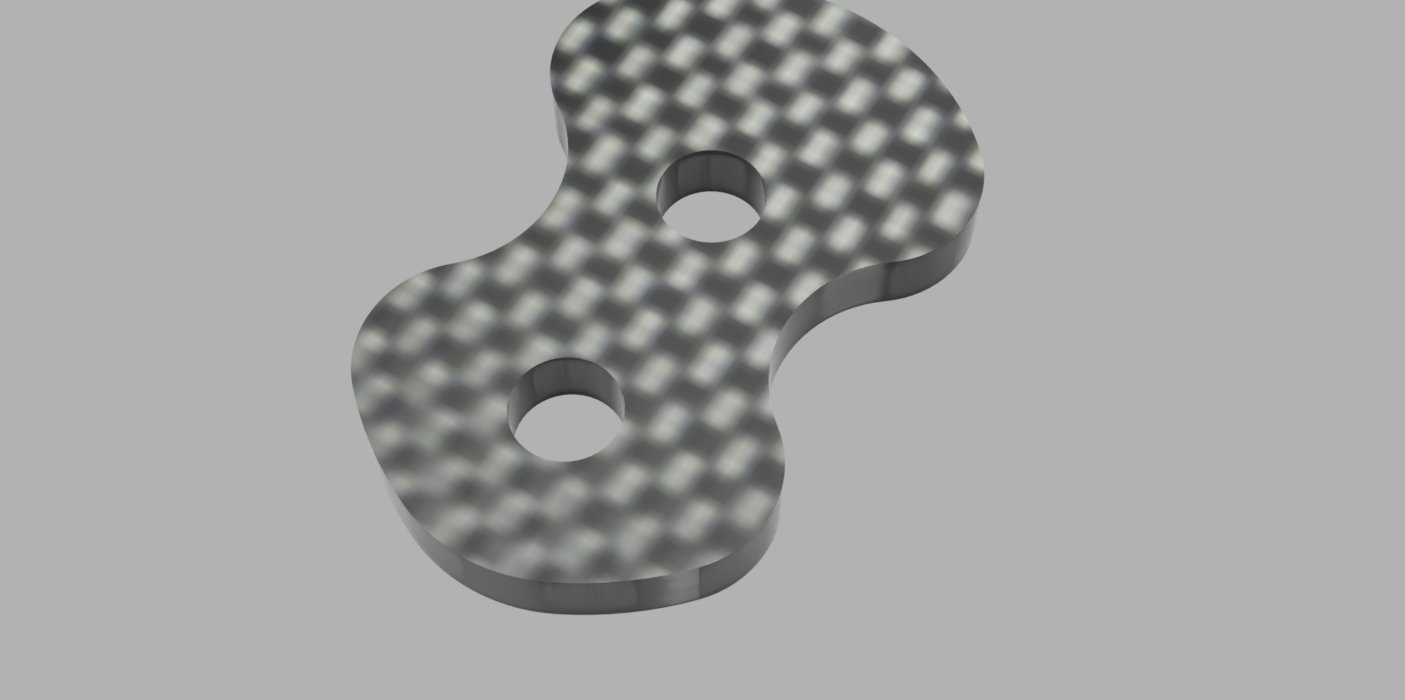

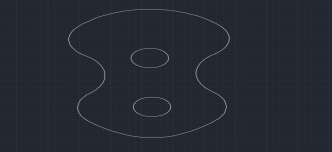

lowRIDE 2mm camera plate spacer
Quantity :6
-

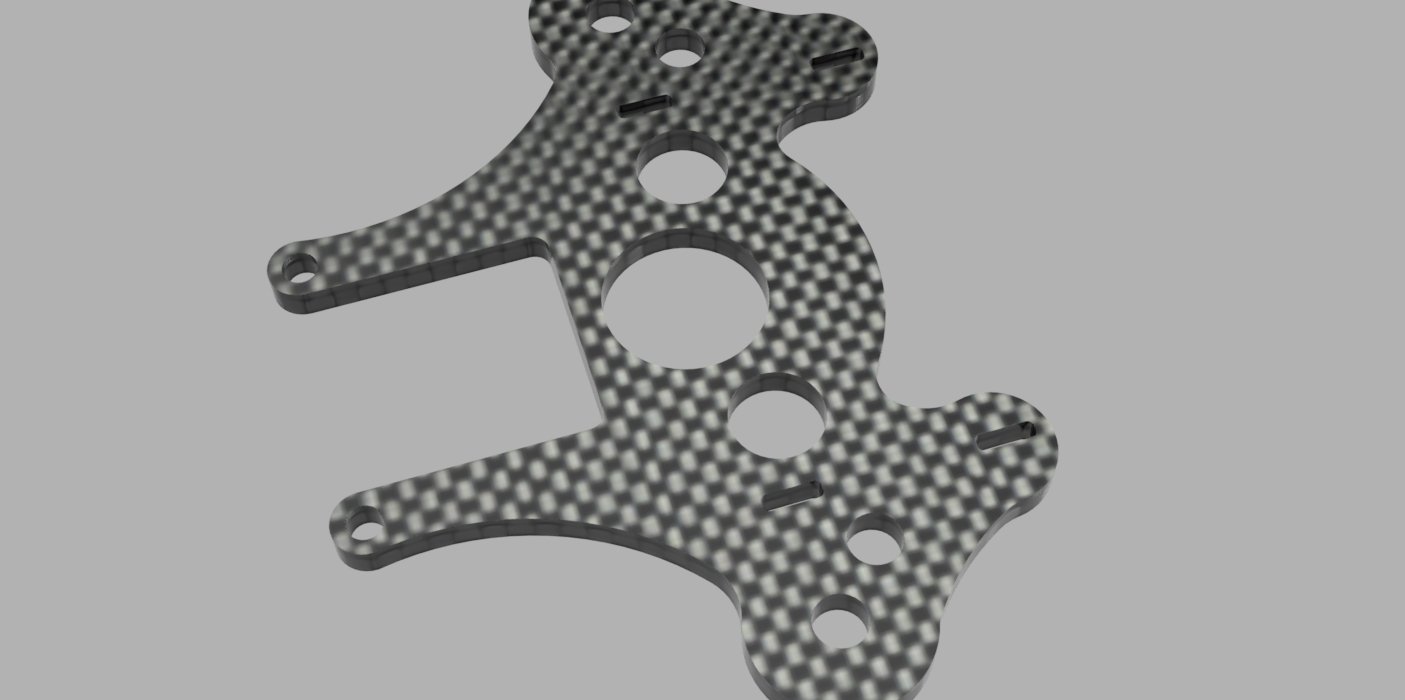

lowRIDE 3mm camera plate
Quantity :1
-

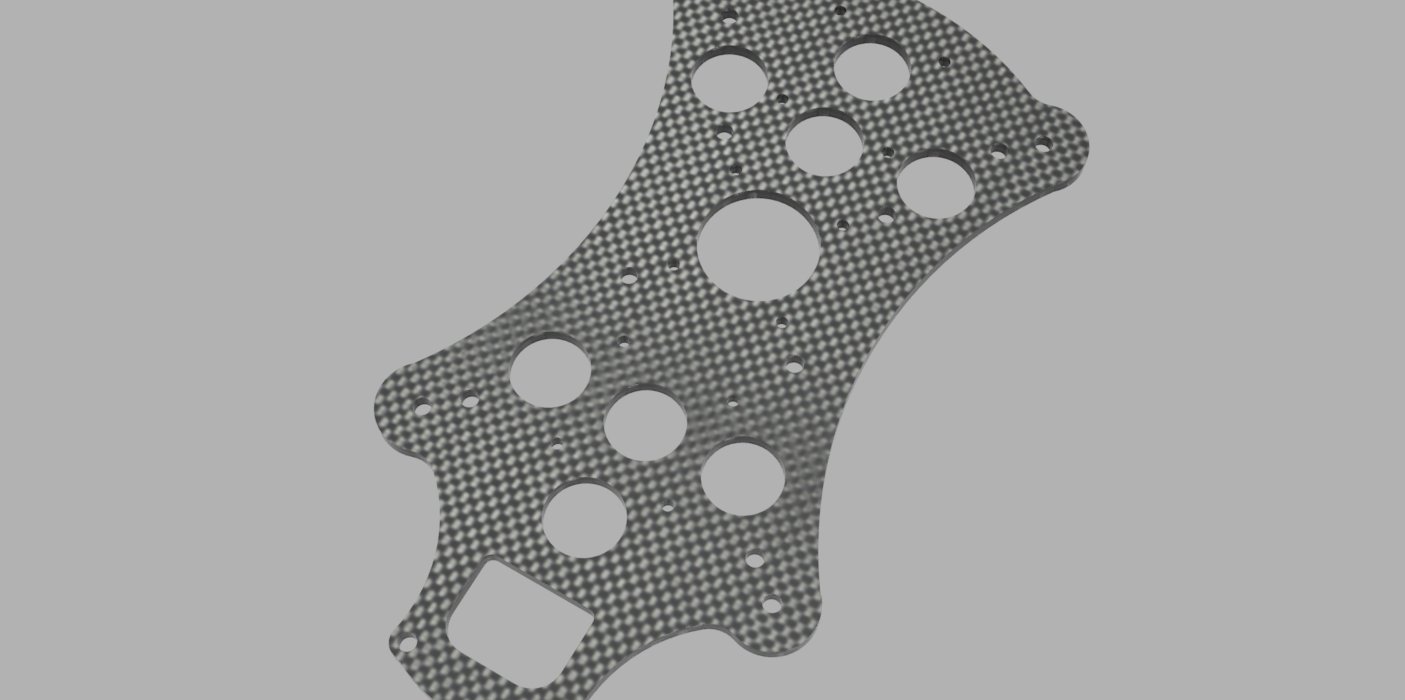

lowRIDE 3mm bottom plate
Quantity :1
-

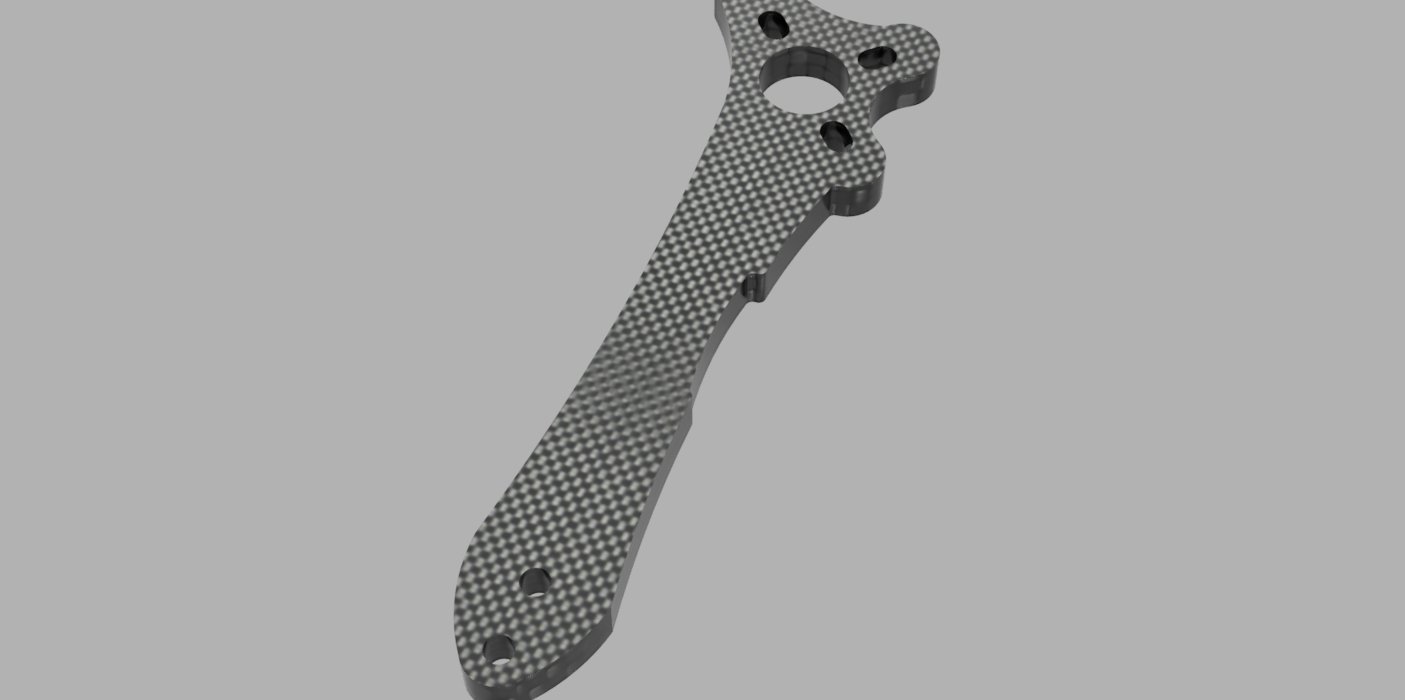

lowRIDE 5mm 5inch arm
Quantity :6
-
lowRIDE 5mm go pro mount riser block
Quantity :1
-

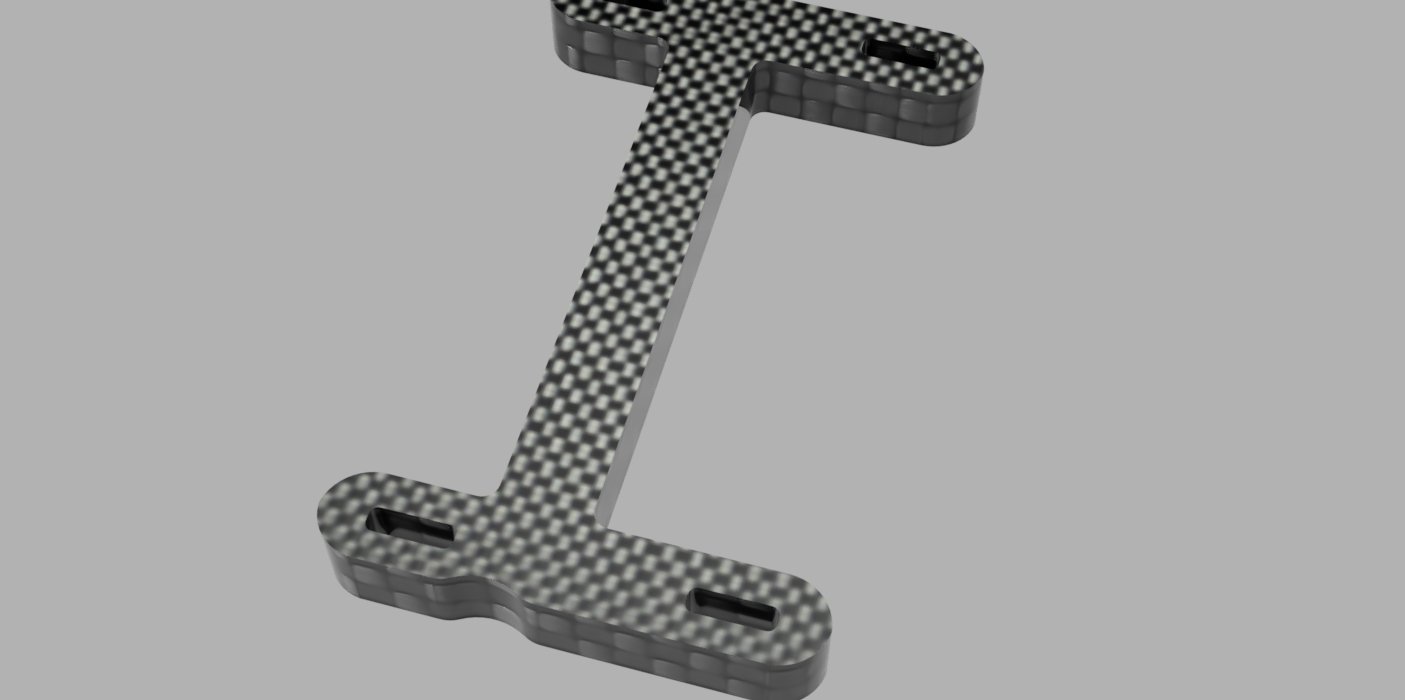

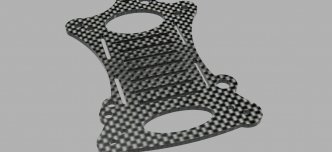

lowRIDE 3mm battery plate
Quantity :1
-
lowRIDE 5mm arm spacer
Quantity :4
-
8mm M3 Steel Button Head Bolt Black Anodized
Quantity :6
-
20mm M3 Steel Button Head Bolt Black Anodized
Quantity :8
-
M3 Stainless Steel Sunk Nuts (per piece)
Quantity :10
Description
so this beast is my personal take on a mid mount acro frame. she is one of the lowest designs with a 10mm avioincs bay with your stack split accross the bottom deck. while im a 4n1 kinda guy you could use an AIO type fc and escs under the arms. it has some interesting ideas going on with the spit stack and the top mounted pressnuts that mean if you release all the arm bolts you can remove the battey plate and access the electronics with the arms and spacers all staying in place
airframe is around 110g built with hardware
Additional Information
the esc/AIO fc can be either a 20x20 or a 30x30 while the forward fc mount is 20x20 as is the vtx mount.
my one is built with
airbot nanoV6 f4 fc
airbot typhoon 32bit esc
akk f3 600wm vtx
and tmotor f60pro v2 in 2350kv
all running 6s... its a bloody beast
