Ka0s Design
Octopuss 3inch Octo
Item List
-

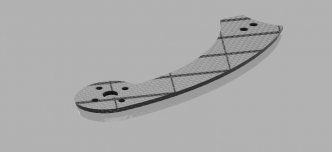

Octopuss arm 3mm
Quantity :8
-

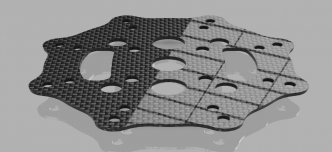

Octopuss bottom sandwitch plate
Quantity :1
-
Octopuss top sandwitch plate
Quantity :1
-

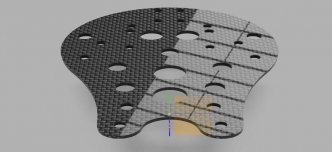

Octopuss top plate
Quantity :1
-
12mm M3 Steel Button Head Bolt Black Anodized
Quantity :14
-
14mm M3 Steel Button Head Bolt Black Anodized
Quantity :6
-
M3 Nylon Insert Nut Black Anodized (Nylock)
Quantity :16
-
Quantity :6
-
6mm M3 Steel Button Head Bolt Black Anodized
Quantity :6
-
16mm M3 Steel Button Head Bolt Black Anodized
Quantity :6
Description

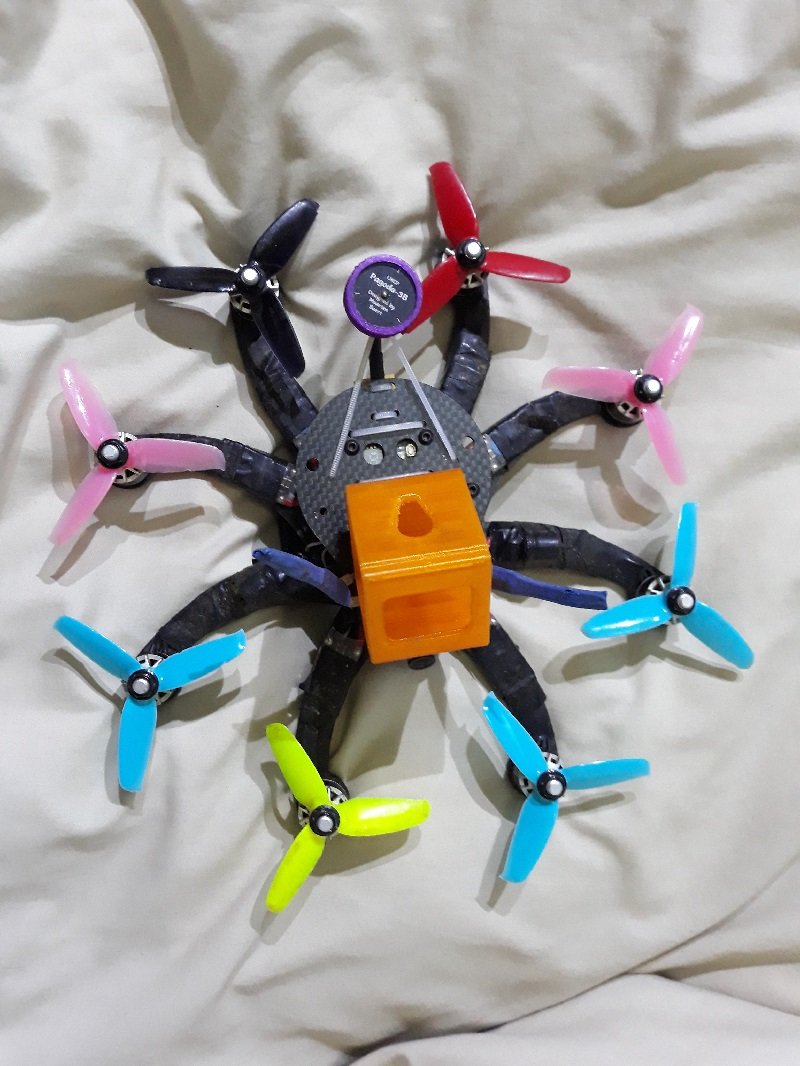

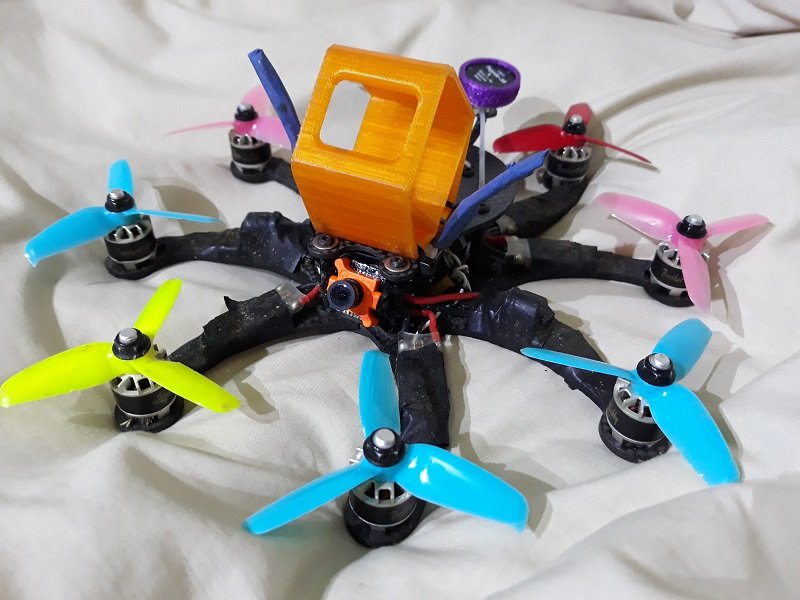

Octopuss
The 3 Inch Octo
A stupidly fun multirotor with a super snappy response and unique flight feel
Motors - 1407 12x12 mounting, 4s 4100Kv
Props - 3 Inch
Stack - 30.5x30.5 and 20x20
Battery - 1300mah to 1500mah 4s
Battery connector - XT60 standard (not XT60H-M or XT60+)
Battery connector holder - CNC-XT60 Plug-Connector-Holder-Fixture-Deck-Mount
Camera Mount - TPU micro camera mount
ESCs - 20A Blheli S or Blheli 32. Something small if you want to fit it on the arm, or use 2 x 4in1.
Flight Controller - Nothing i could find supports 8 motors. Use what you like, set it up as a quad and split the motor output to 2 ESCs.
Build Instructions.
The hardware allows for a 26mm and 30mm hight top plate. Use the 14mm screws with the standoffs for 26mm and use the 16mm screws with locknuts and standoffs for 30mm height. Use the top plate as a reference as to where the longer screws need to go.
