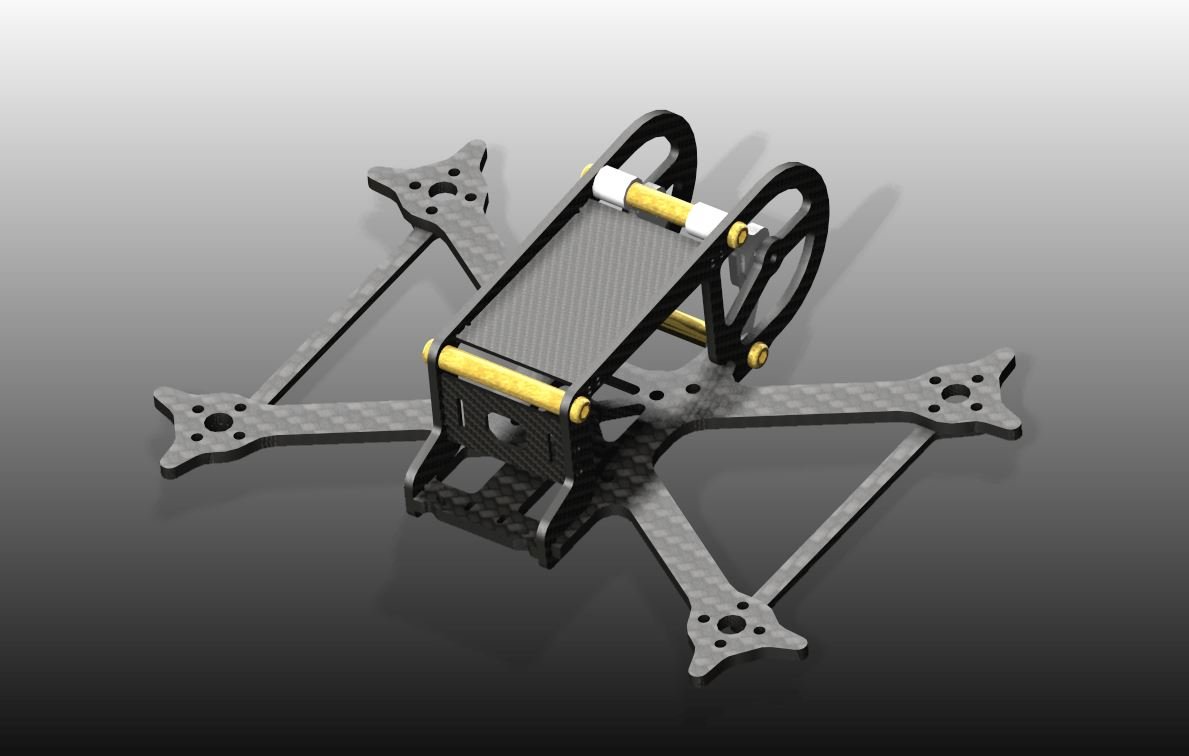

Runcam Split Frame 3-inch (with no props in view)
Price :
$
47.92
Propeller size :
3"
Item List
-
Arm Verstaerkung - 3inch Runcam Split Frame
Quantity :2
-
Top plate - 3inch Runcam Split Frame
Quantity :1
-
Back Plate - 3inch Runcam Split Frame
Quantity :1
-
Base Plate - 3inch Runcam Split Frame
Quantity :1
-

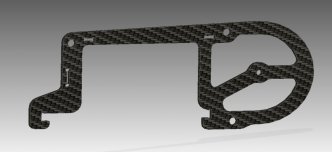

Sideplate - 3inch Runcam Split Frame
Quantity :2
-
6mm M3 Steel Button Head Bolt Black Anodized
Quantity :6
-
30mm M3 F/F Alumi Tapped Stepped Standoff Black Anodized 6.3mm O.D.
Quantity :3
-
8mm M2 Steel Cap Head Bolt Black Anodized (per piece)
Quantity :8
Description

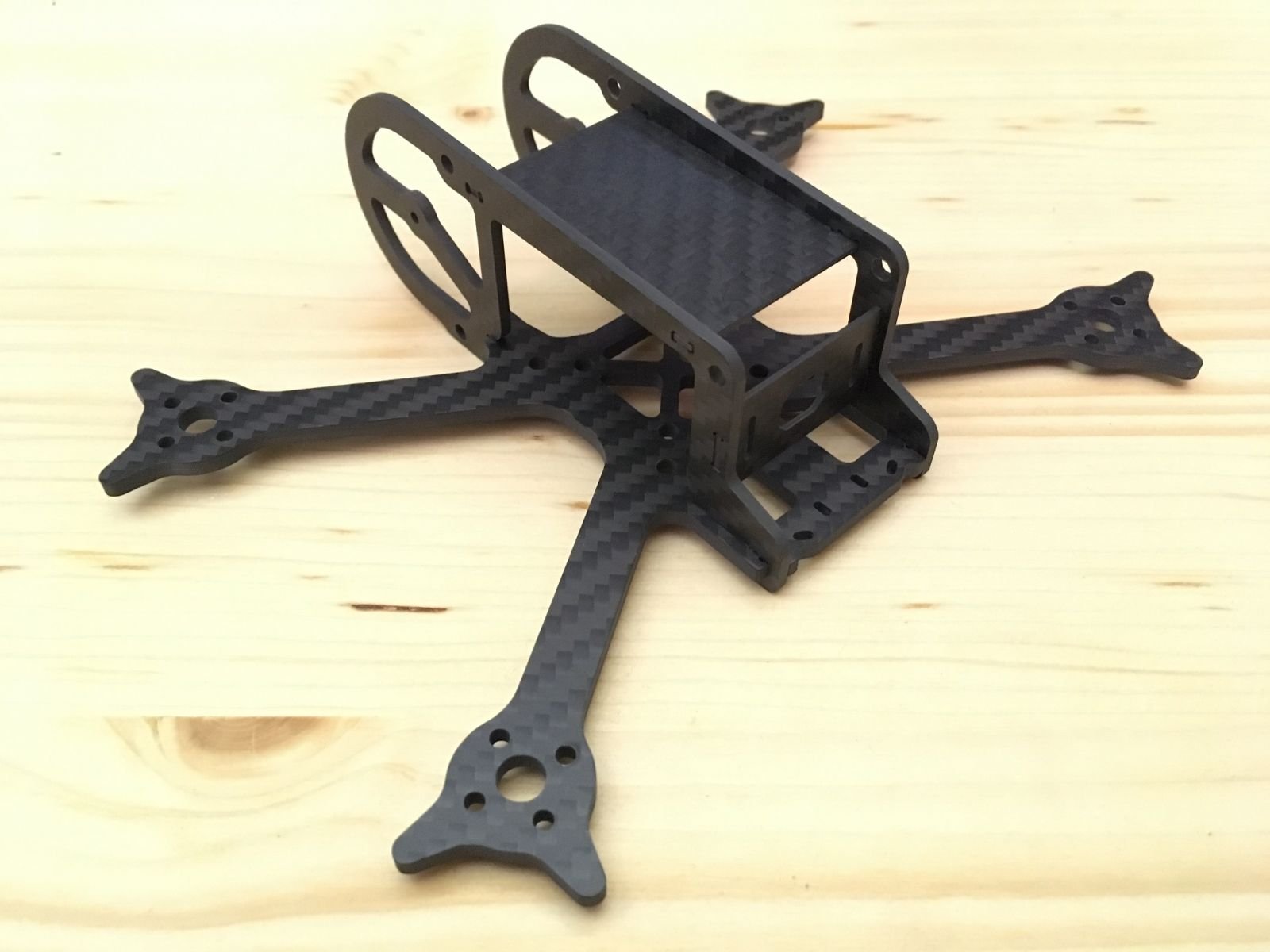

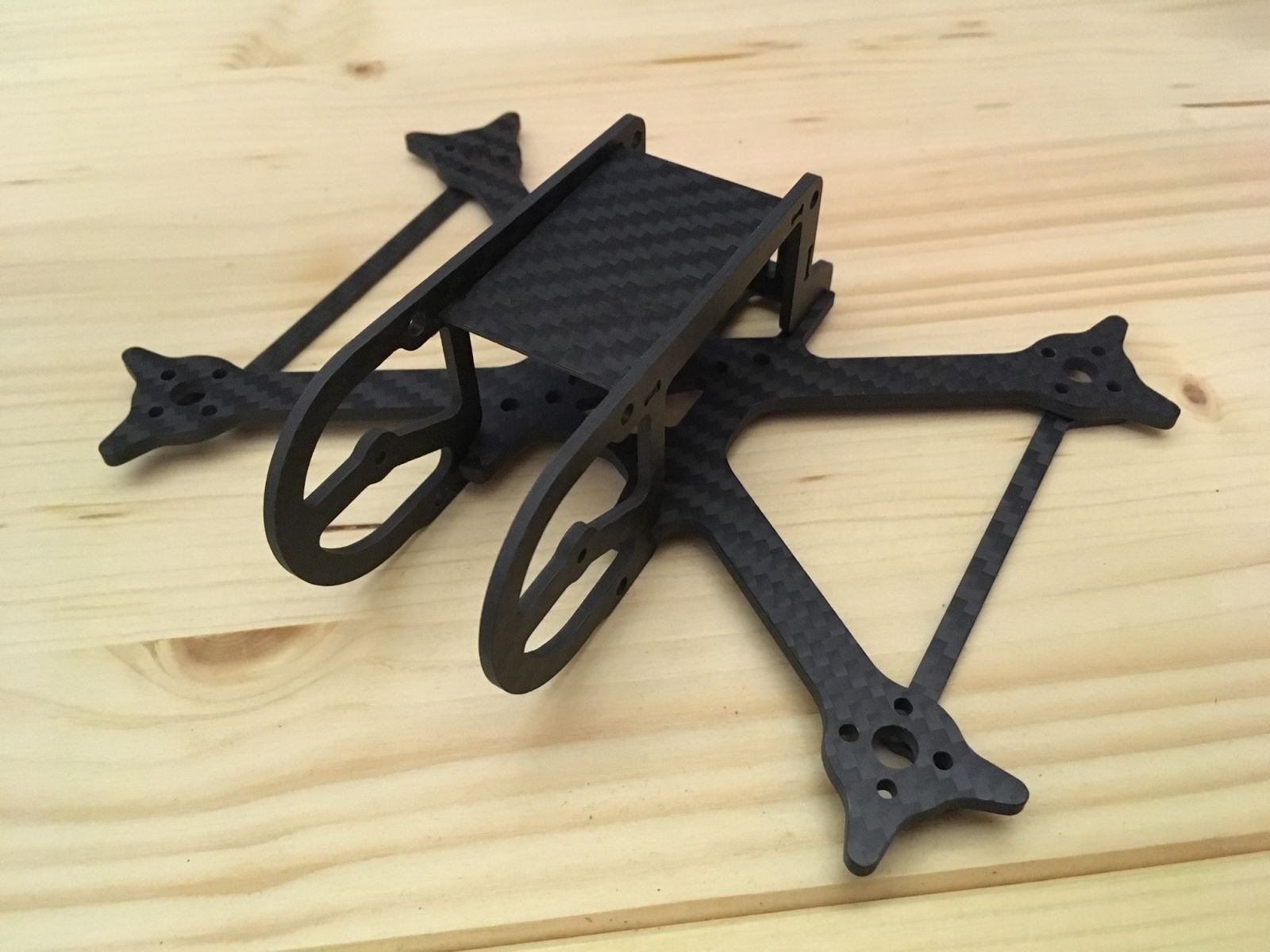

Runcam Split - 3" Frame (with no props in view)
All legal to fly full HD camera Drone (with addional mounting space for GPS)
Designed that no props are in view (Runcam Split v1+2 with GoPro Lens)

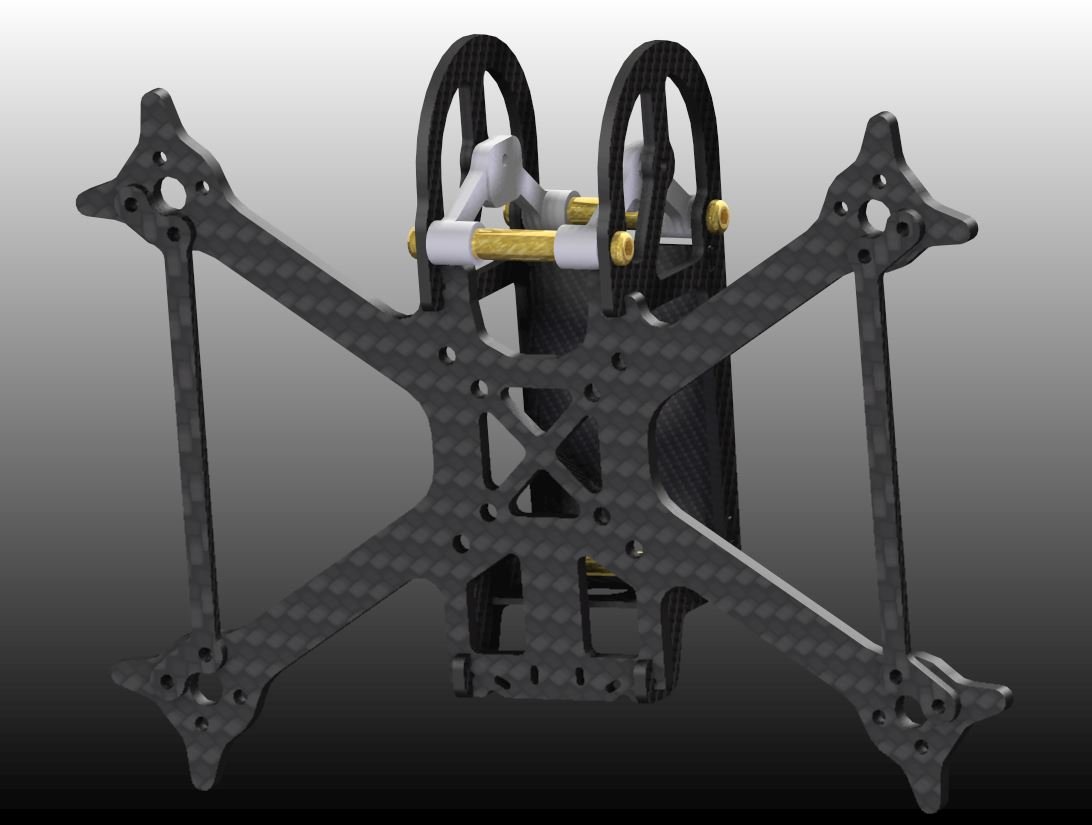

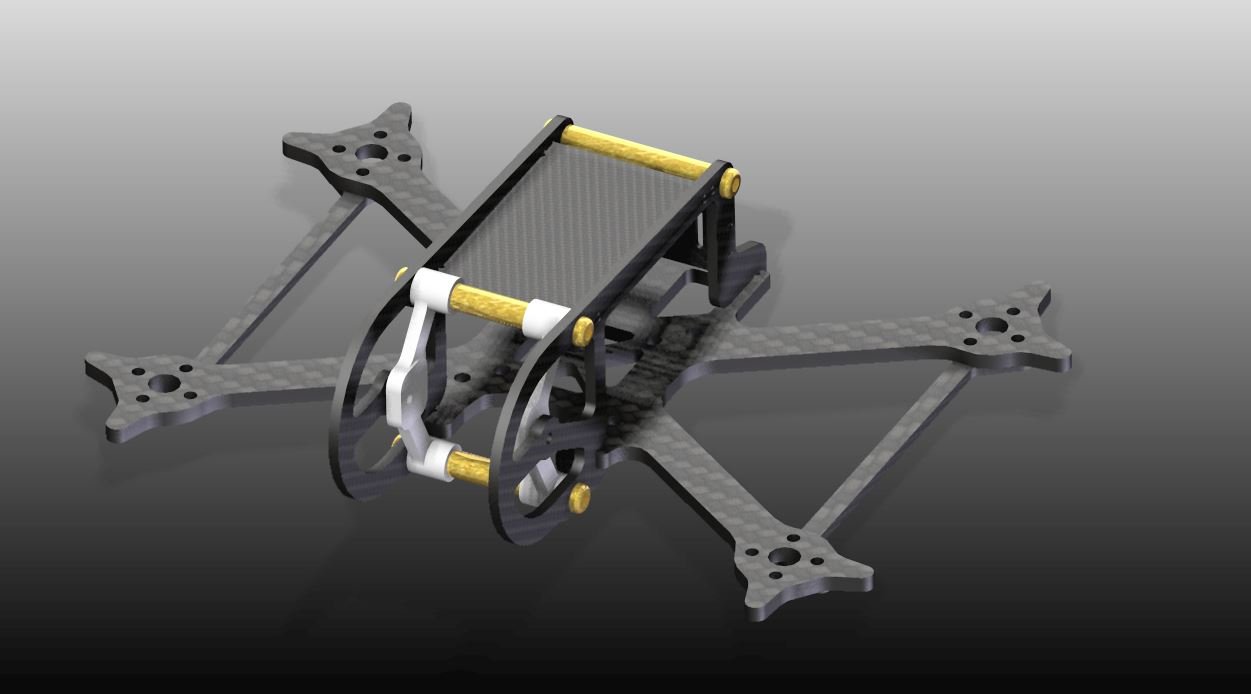

Two camera mounting options: 1. hard mounted with the Runcam bracket on the sideplates or 2. with TPU 3D-printed mounts (https://www.thingiverse.com/thing:2975838)
In the package:

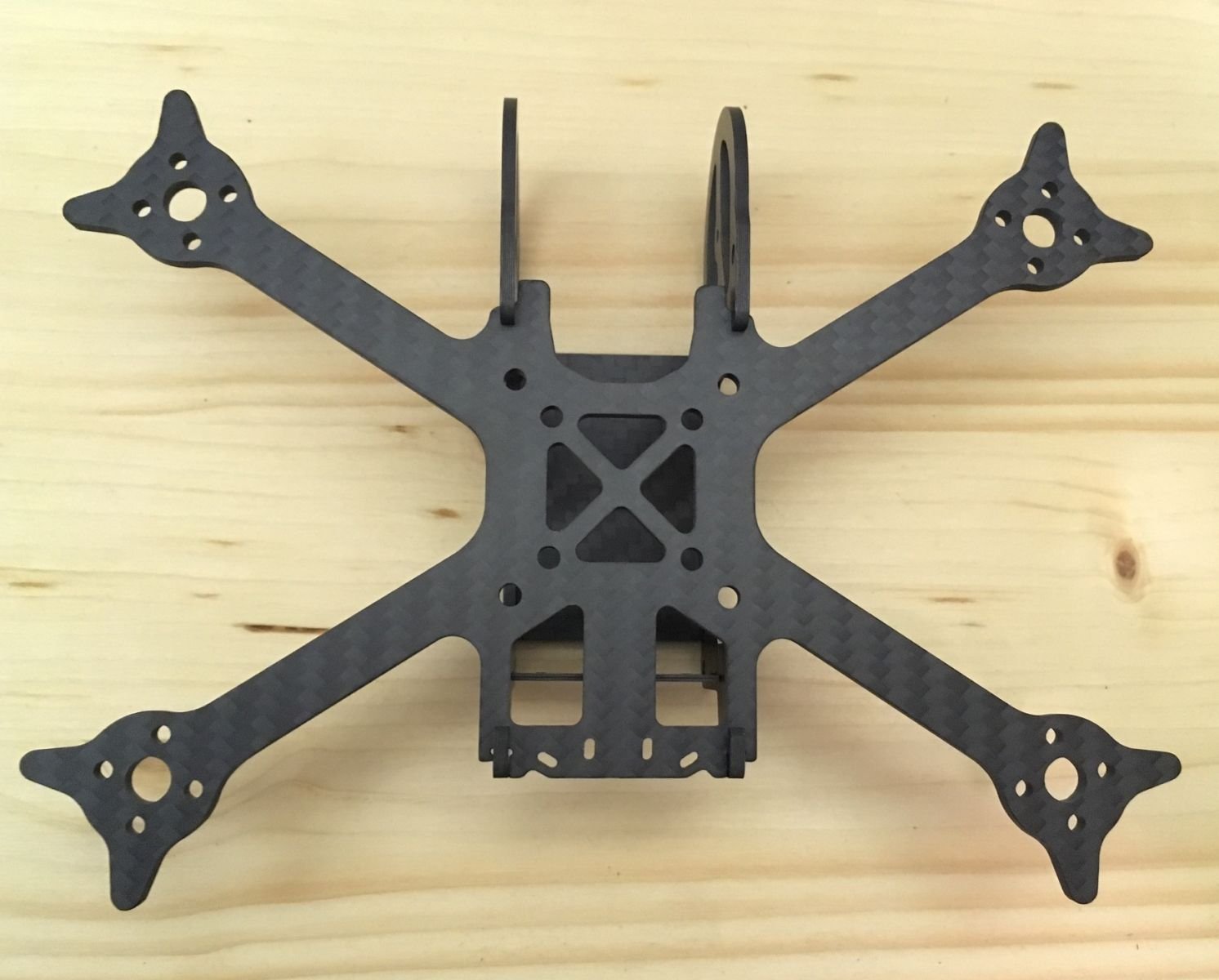

- 1x 3mm Baseplate
- 2x 2mm Sideplates
- 2x 2mm Arm Brackets
- 1x 1mm Topplate
- 1x 1mm Backplate
- 3x M3x30mmm Standoff
- 6x M3x6 Aluminium Screws
- 8x M2x8 Screws for Motor mounting with bracket
Info:

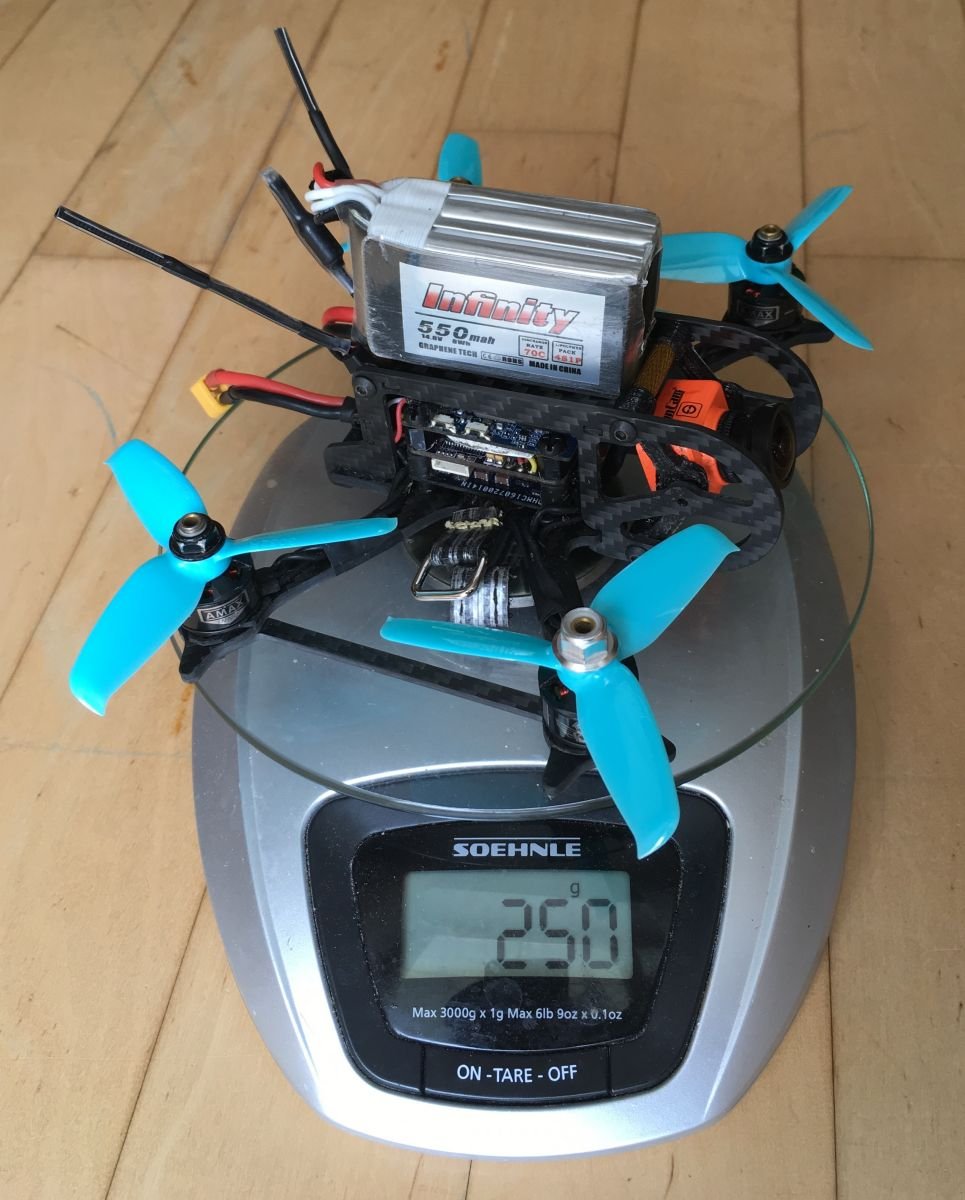

- Frameweight: carbon only ~32g | with standoffs and screws: ~39g (if you want to go minimal you can only use baseplate and sideplates at about 29g+additional screws and standoffs)
- Mounting pattern: 30x30mm and 20x20mm
- max. stack height= 26mm
- full protection cage for Runcam Split (from 80° downwards to 90° upward camera angle)
- Motor mounting pattern 12x12mm (2.5mm holes)
- the cuts on the Sideplates - where they fit into the main plate - are intentionally made smaller so that the fit is very tight (if needed just file a little bit out until you can get it in for a strong tight fitting frame)
- if you don't like the additional arm holders you can leave them away. they are just there to make the frame almost undestroyable. The Mainplate is designed to hold up a lot of abouse on its owne. The brackets are just there if someone likes to have them addionally.
cheers MBx
