Hi all. My name Vitali (@VinT_FPV). I am a member of the Droneband team and frame designer for my team. In this store you can buy the frames on which we fly. We tried to make frames for our needs and vision, maybe you like them too.
NOTE: All kits purchased through this store are made to order.
Kits/parts listed here are custom made and are not kept in stock.
Expect 7-14 business days for production prior to shipment.
Any questions regarding your order should be directed to support@armattanproductions.com.
DRANIK
Item List
-

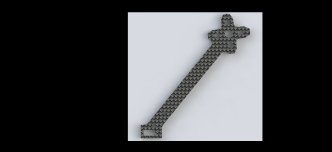

Arm_4mm
Quantity :4
-

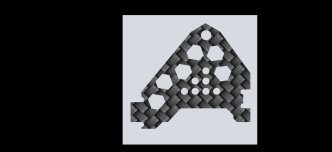

Side plate
Quantity :2
-

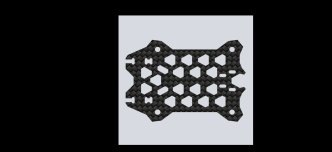

Top plate
Quantity :1
-

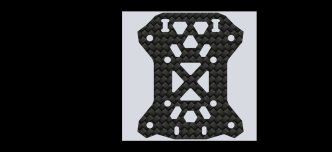

Bottom plate
Quantity :1
-
20mm M3 F/F Alumi Tapped Stepped Standoff Black Anodized 5.5mm O.D.
Quantity :1
-
25mm M3 F/F Alumi Tapped Standoff Black Anodized 5.5mm O.D.
Quantity :4
-
10mm M3 Steel Button Head Bolt Black Anodized
Quantity :2
-
16mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
-
20mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
Description
DRANIK Stretch X 210 frame.
I made this frame with the idea of using micro cameras and parts under a 20x20 stack. At the same time I wanted to make the camera as secure as possible and the frame not very heavy. As it seems to me it turned out not bad :)
The frame consists of:
- lower plate 3 mm
- top plate 2 mm
- side plates 2 mm
- Arm 4 mm thick and 10 mm width
- bolts and standoffs
But I recommend buying bolts and standoffs by yourself, to choose your favorite color, as well as bolts and nuts. List of used by me:
- M3 Flange Nylon Nut https://goo.gl/DXy8ie
- M3 20mm Knurled Standoff https://goo.gl/ykwbm8
Part list wich I use to buil this frame:
- Flight controller - OMNIBUS F4 Nano v5 https://store.myairbot.com/flight-controller/omnibus-f3-f4/omnibusf4nanov5.html
- ESC - Ori32 4in1 ESC 4x25A https://store.myairbot.com/esc/ori324in14x25a.html
- Motors - I use ZMX FINX23 http://pirofliprc.com/ZMX-FINX23-FR05-26K-IJN-UMIKAZE-Motor_p_4403.html . This is interesting motors, light, powerful but unfortunately not very durable.
- Camera - Foxeer Arrow Micro https://goo.gl/ai892J , or you can try this https://goo.gl/n1EA9W
- Reciver - FrSky r-xsr https://goo.gl/KuH3zb, You can try another receiver, but there is not much room in the frame, with larger ones there may be difficulties in placing
- VTX - FuriousFPV STEALTH https://goo.gl/haeLzj , ore TBS nano
- VTX antenna FuriousFPV BigMac https://goo.gl/qiiG8B , I like this antenas
Also, I made several options for mounting antennas (furiousfpv bigmac and AXII) for printing on a 3d printer. Best print int from TPU plastic. will upload soon
