Chinook 239 Hex Frame
Item List
-

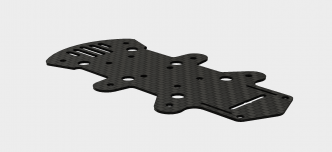

Chinook Top Plate 2mm
Quantity :1
-

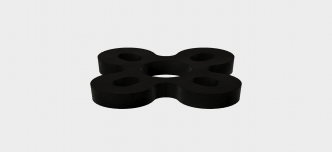

Chinook Motor Spacer 5mm
Quantity :6
-

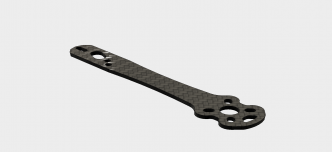

Chinook Mid Arms 4mm
Quantity :6
-

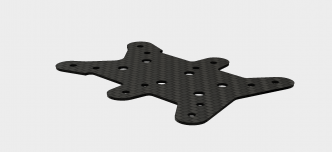

Chinook Arm Brace 2mm
Quantity :1
-

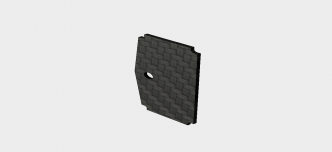

Chinook HS1177 mount 1mm
Quantity :2
-

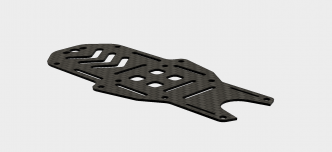

Chinook Bottom Plate 2mm
Quantity :1
-
28mm M3 F/F Alumi Tapped Stepped Standoff Black Anodized 5.5mm O.D.
Quantity :2
-
30mm M3 F/F Alumi Tapped Stepped Standoff Black Anodized 6.3mm O.D.
Quantity :4
-
M3 Stainless Steel Sunk Nuts (per piece)
Quantity :6
-
M3 Nylon Insert Nut Black Anodized (Nylock)
Quantity :2
-
14mm M3 Steel Button Head Bolt Black Anodized
Quantity :8
-
10mm M3 Steel Button Head Bolt Black Anodized
Quantity :6
-
8mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
-
12mm M3 Steel Button Head Bolt Black Anodized
Quantity :2
-
20mm M3 Steel Button Head Bolt Black Anodized
Quantity :8
-
Quantity :4
Description
Chinook 239 Hex Frame is an experimental 5 inch hexacopter frame.
The base configuration was designed by Alpha Squad Team Pilot JAZFPV.
The design approach was to use same arm bolt patterns as Tomcat Flex X and Super Hornet Flex X.
The frame is a staggered hexa design, with the middle motors raised 15mm (spacers included) so that the motor to motor distance can be kept compact (239mm motor to motor distance)
This frame kit comes with frame related parts needed including bolts, nuts, and standoffs.
Chinook 239 Hex is exclusively sold only in armattan production under Alpha Squad Multirotor account.
please be sure to check out Alpha Squad Multirotor account too over at thingiverse.com. 3D print accessories files will be uploaded regularly and can be downloaded for free.
Thank you! happy flying!
