Welcome to Carbonite RC. My name is Mark. Since 2014 I have been designing and flying drones. I have built and designed everything from AP type drones to ultralight racing frames. My focus over the last couple of years has been almost completly devoted to mini quads. Up to this point, I typically design a frame and cut them myself. This has mostly been for me, and some local guys who end up with my frames. I haven't tried to make a business out of this hobby, and with my current day job I dont intend to. I do, however, feel like some of my designs should be availble to people if they want them. So, I will be adding things to this store for people to purchase directly through Armattan. If you like my work head over to the Facebooks and give the page a like!
https://www.facebook.com/Carboniterc/?view_public_for=1723960937892975
.JPG)
Chris Hass Signature
Item List
-

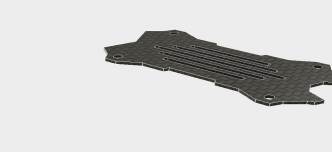

Hass Top Plate
Quantity :1
-

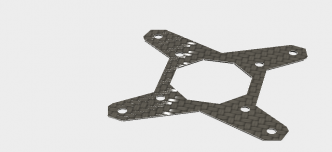

Hass Mid Plate
Quantity :1
-

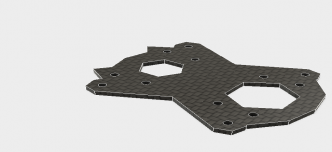

Hass Bottom Plate
Quantity :1
-

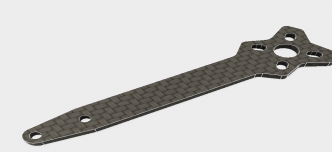

Hass Arm 5mm
Quantity :4
-
7mm M3 Steel Button Head Bolt Black Anodized
Quantity :8
-
M3 Nylon Insert Nut Black Anodized (Nylock)
Quantity :8
-
14mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
-
25mm M3 F/F Alumi Tapped Standoff Black Anodized 5.5mm O.D.
Quantity :4
-
6mm M3 M/F Nylon Standoff (per piece)
Quantity :4
-
20mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
Description
Designed in collaboration with Pro Pilot Chris Hass, this frame was designed to be a light weight, top mounted battery racing ship. It is designed around a micro FPV camera, and a full size 30.5mm mounting FC and ESC stack. I have 3d printed camera mount and antenna mount files on Thingiverse avalible for download.
