Firefly X 2.5"

Top mounted battery 2.5" quad that rocks. FC / ESC mounting pattern 20 x 20, M3 screw holes. Micro cam fully protected.

Bottom plate is 3 mm, top plate 1.5 mm and camera plates 2 mm. Frame weight with all hardware - 24.5 gr.

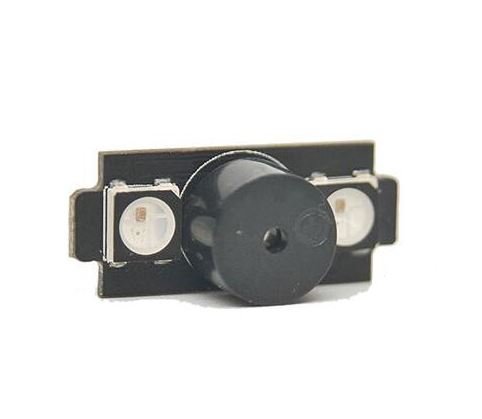

HGLRC buzzer + led combo board neat and hassle free buzzer and 2 smart leds connection.

Build height is at 15 mm - this is challenging build, plan and purchase parts accordingly.

TrueX configuration, dimensions are 93.5 mm (in both directions); diagonal is 132.2 mm.

Kit content: Bottom plate, top plate and x2 camera plates. (Carbon only)

Additional hardware needed for assembly: (click on blue text for direct links)

1. x4 15 mm M3 standoffs.
2. x1 20 mm M3 standoff.
3. x10 M3x6 Screws - Ti is recommended to shave additional weight but steal will also work.
4. x1 HGLRC - buzzer + led combo board.

Recommended electronics: (click on blue text for direct links)

1. HGLRC Zeus - single board FC + ESC up to 3S
2. Runcam Swift Micro 2
3. VTX03 / ATX03.
4. R-XSR Frsky Reciever / XM+ Frsky Reciever.
5. Motors:
   1. Emax 1106, 6000 Kv
   2. SunnySky 1106, 6500 Kv
   3. GepRC 1106, 6000 Kv

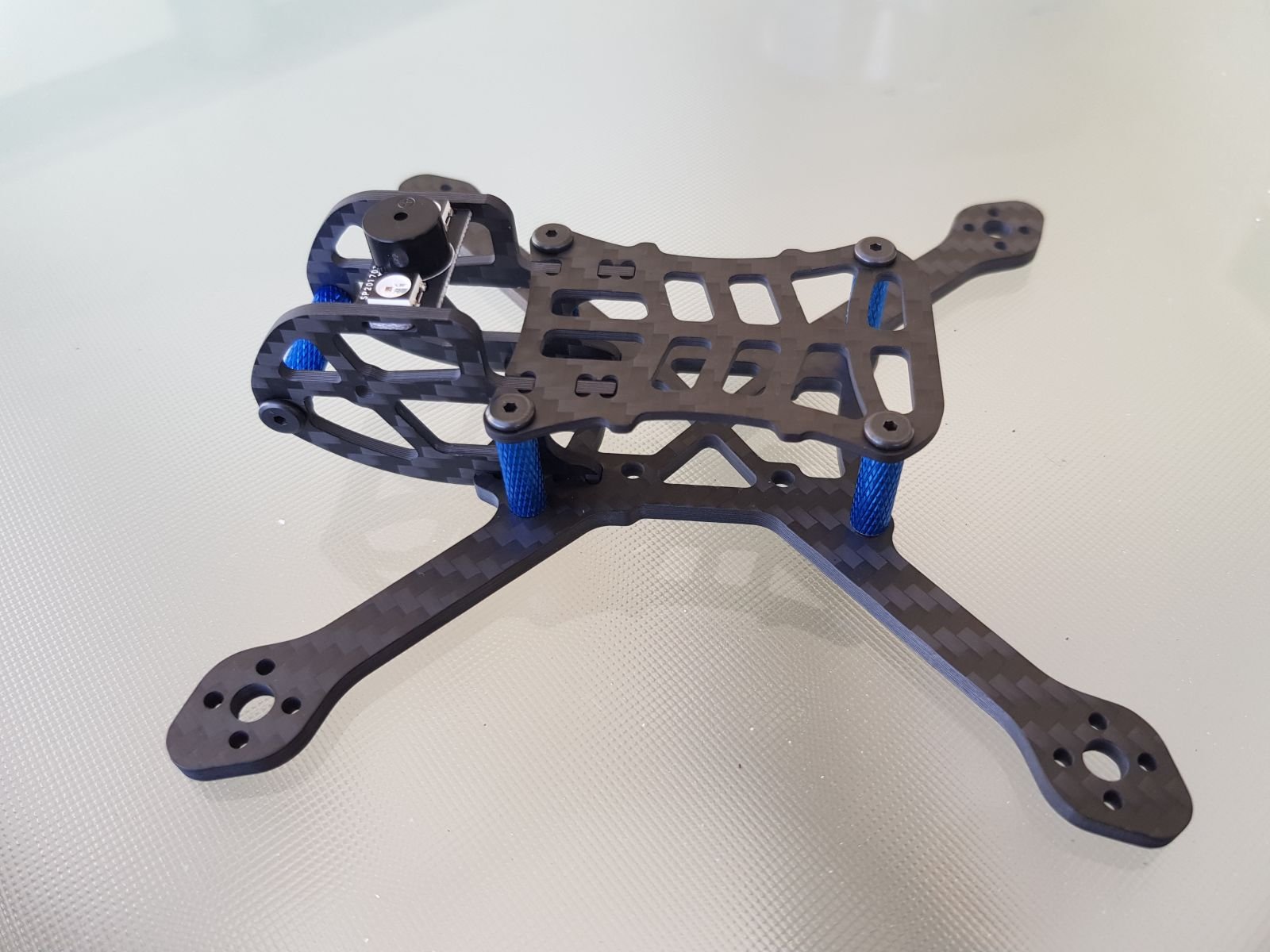

Frame assembled pictures:

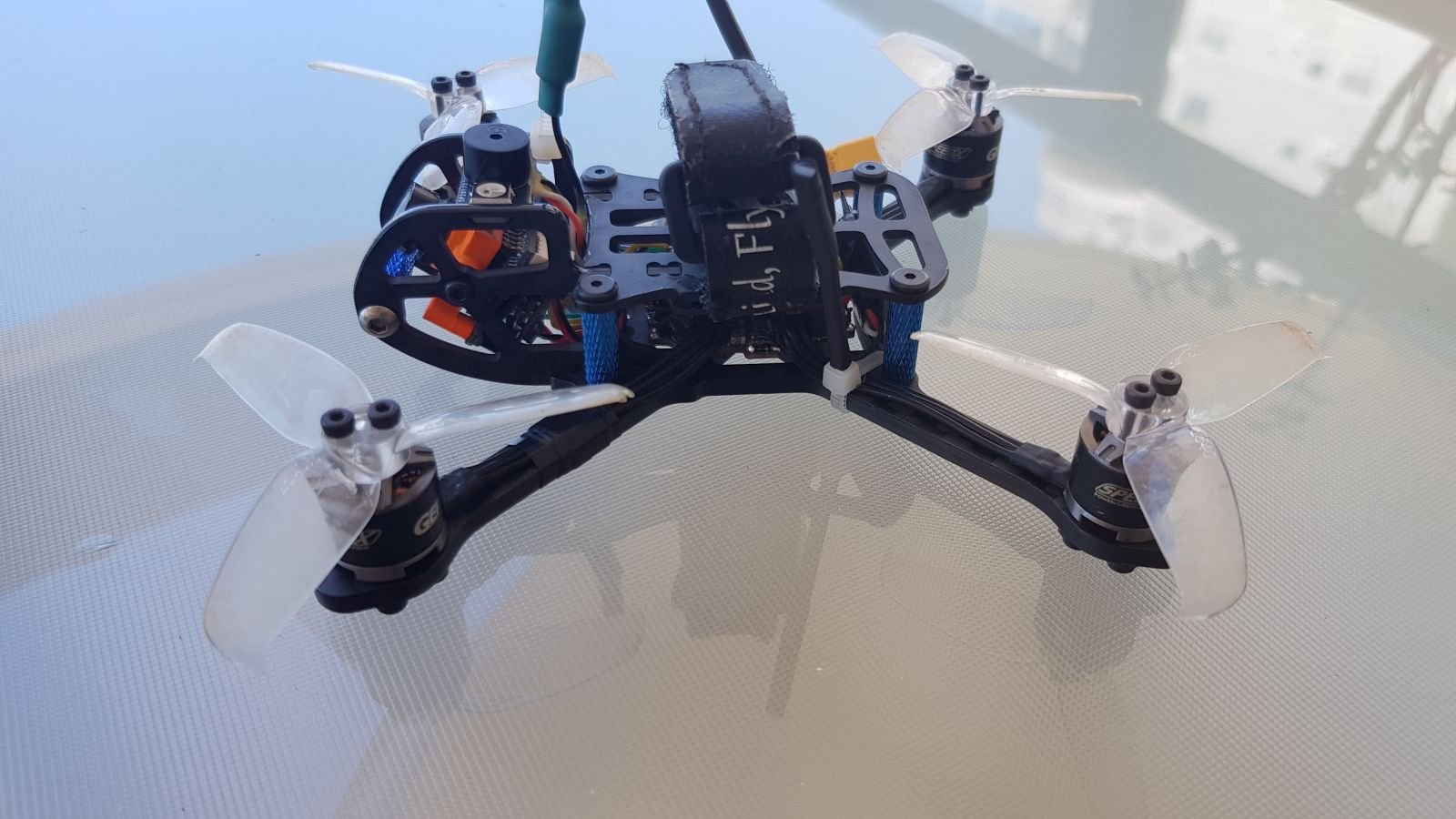

Fully assembled, setup:

1. HGLRC XJB428

2. Runcam Swift Micro V1

3. Runcam TX200U

4. HGLRC Buzzer + Led Board

5. GepRC 1106, 6000 Kv

6. Frsky XM+

7. Gemfan Flash 2540x3
