MS125 Micro Quadcopter -V4


Price : $ 30.00

Propeller size : 2.5"



Description

IMPORTANT:  This is a carbon only kit. All hardware and accessories will need to be provided by the builder to finish the kit.

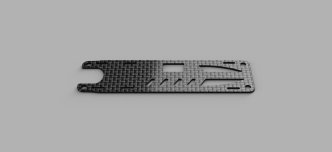

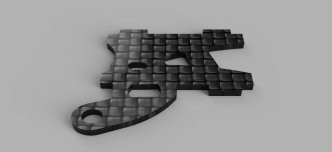

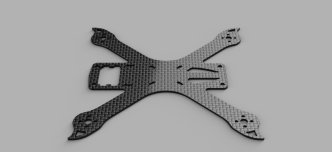

Micro quadcopter kit designed around the Flitetest Gremlin power pack. It is designed to hold a Runcam Mirco Swift/Swift 2 or similar sized camera with a Eachine VTX03 or similar design video transmitter. The top plate has a cutout to allow for easy viewing or the LED display on the VTX03 video transmitter. The top and bottom plates have chamfered edges and the carbon fiber has been orientated to run parallel to the direction of the arms on the bottom plate.

The frame allows for the mounting of either a 20x20mm flight controller or a smaller 16x16mm one.   The kit requires a single 20mm and 4 15mm standoffs. Three millimeter screws will also need to be supplied by the builder. It is recommended to use a minimum of 8mm long screws for the bottom plate and 6mm long screws for the remainder. A standard sized battery strap will also be required. Using plastic hardware provides for a ~24g frame weight before adding other components.

2.5 inch propellers should fit this frame as well as the stock Emax propellers included in the power pack.

For 3D printable accessories check out my Thingiverses page to download the files.
