TOXIC WALTZ 200mm (Chefs Special)
Item List
-
3mm Main plate for Toxic Waltz
Quantity :1
-
3mm 5inch Arm for Toxic Waltz
Quantity :6
-
2mm top plate for Toxic Waltz frame
Quantity :1
-
28mm M3 F/F Alumi Tapped Stepped Standoff Black Anodized 5.5mm O.D.
Quantity :4
-
10mm M3 Steel Button Head Bolt Black Anodized
Quantity :5
-
M3 Nylon Insert Nut Black Anodized (Nylock)
Quantity :5
-
7mm M3 Steel Button Head Bolt Black Anodized
Quantity :5
-
12mm M3 Steel Button Head Bolt Black Anodized
Quantity :5
Description
DISCOUNTED PRICE FOR PROMOTION
Toxic Waltz Frame Kit
Calculated weight about 35-45 gr. (carbon only)
This kit include
1x Main plate
1x Top plate
6x Arm
and screws, bolts, spacers all your needs for that frame with spares.
True X 200mm ultralight extreme racing frame !

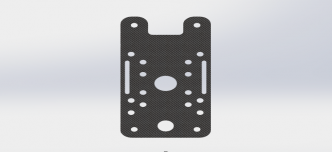

The main plate has duplicated 20*20 mm and standart FC mount holes so you can mount your FC on center of the frame for easier PID tuning or a few mm behind from center for more free space inside. Also this main plate has holes for pass through the cables so when you break an arm your solder pads will be still good, the tension will stop on cables and frame.
When i design this plate, i analyze it and strengthen it so when you crash somewhere arm would be break first, this impact will absorb energy and your main plate will be still perfect.
The top plate also has duplicated 20*20 mm and standart FC mount holes and battery strap holes so you can mount your fc upside if you want (usefull when you build it low) and your battery on the frame

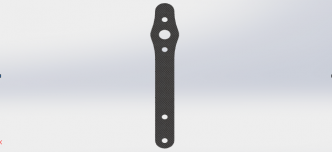

This arm has 19mm between motor mount holes as every 22** - 23** motors has.
This arm is designed to sacrifice itself, if something will break anyway. But still it dont have any weak spot, this is the best shape of 5 grams of carbon fiber.
