Included Kit contents:

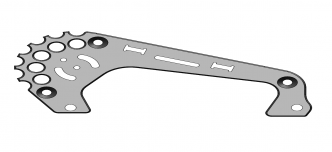

1 x SXQ5 CR Plate

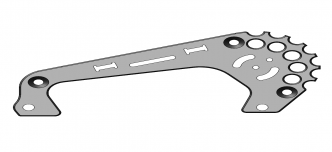

1 x SXQ5 CL Plate
1 x SXQ5 VTX Plate

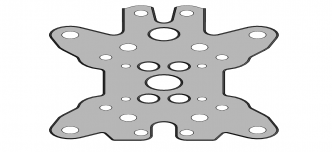

1 x SXQ5 FC Deck

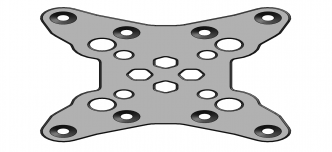

1 x SXQ5 LIPO Deck
4 x SXQ5 ARMS

8 x M3 Tapped Stainless Steel Frame Inserts

4 x M3 x 5mm Socket Head Cap Screws

Additional Kit Require:

All Additional Items are in stock and available from QuadFramesUK, Please email sales@quadframesuk.co.uk or visit the website www.quadframesuk.co.uk

2 x SXQ5 PIVOT CNC BLOCKS (3D Printable Version in design Process and available on Thingiverse, Alloy Version Available from QuadFramesUK & T9 Hobbysport)
3 x M3 x 22mm Standoffs
6 x M3 x 8mm Socket Countersunk Screws
8 x M3 x 12mm Socket Countersunk Screws

SXQ5 Build Instructions PDF is available here

Without Pod

https://1drv.ms/b/s!AqYE1MiwHVxskCRHl5OH3YYJaVG1

With Pod

https://1drv.ms/b/s!AqYE1MiwHVxskB0ibvBm0PB16Nfa

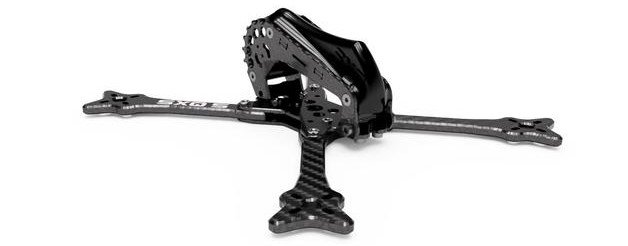

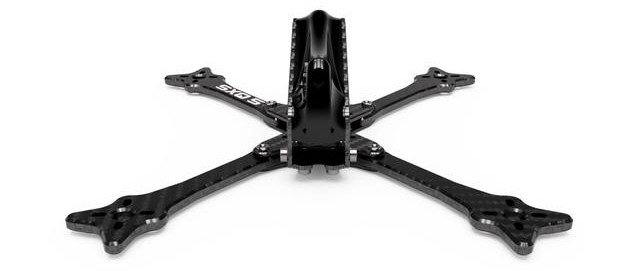

SXQ5 - Stretched X

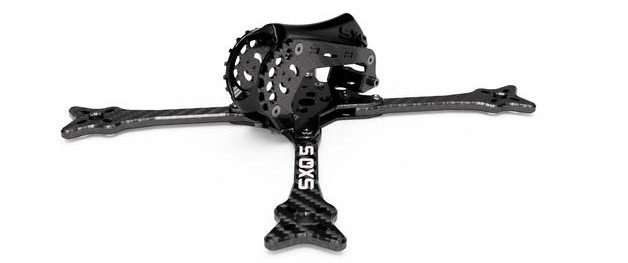

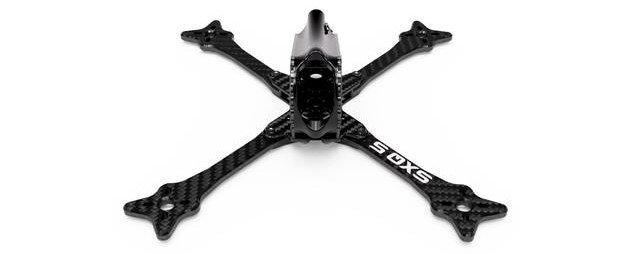

Race / Freestyle Quadcopter Frame

SXQ5 Quadcopter Frame by QuadFramesUK (UK Based Support, Design & Manufacturer)

QuadFramesUK lead designer has a background in Mechanical Engineering & design for over 10 years with lots of experience in many industries and now he has turned his attention to Quadcopter Frames, he has also worked alongside some of the top pilots & companies in the drone industry.

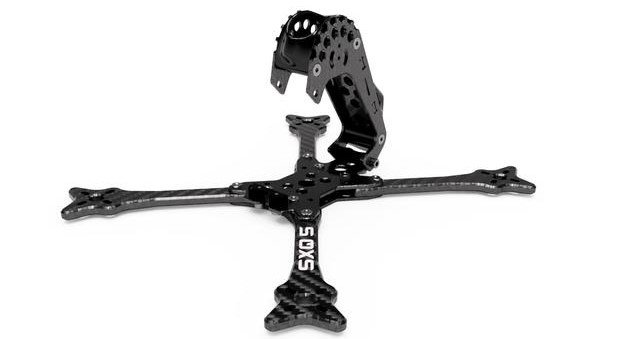

No Expense has been spared on this design with its unique top assembly pivot mechanism for quick and easy access to all of the Quadcopters key components, its silky smooth full 3k matte twill Carbon with a custom 15 degree weave offset, chamfered edges, flush screws & light weight CNC pivot blocks, it’s a thing of beauty.

This frame is set to become the next must frame, however this is not just a hype, some of the top pilots in the UK already have their hands on this Quadcopter frame putting it through its paces while it was in its prototype stages, now it’s there go to Quadcopter frame of choice.

Quote from EddisonFPV

“This is a Quadcopter frame that will just keep on performing indoors and outdoors”

Quote from will Annerson

“Unbelievable strength but yet so light, I have two that are my regular go to quad”

Technical Information:

·         Stretched X - Diagonal motor centre to centre 220mm (designed for 5” props)

·         Camera dimensions 22mm, designed for the Runcam mini, Micro & Runcam Split.

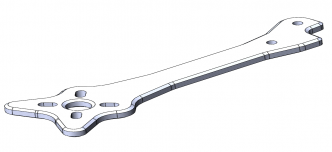

·          Arms are 5mm thick, 10mm wide with chamfered edges and quickly replaceable via 2 screws.

·         Top / bottom and side plates are all 2mm thick with chamfered edges to the outside.

·         Canopy pivots for easy access to components and to perform any field repairs required.

·         M3 Tapped composite inserts allow for easy and stress free fitment.

·         2 x VTX Hard mount placements for SMA pigtails

.        Frame weight complete with hardware is 95g

There is also a 3D Printed pod that is available for the frame and the file can be downloaded free of charge.

https://www.thingiverse.com/thing:2611539

Package contents:

1 x SXQ5 CR Plate

1 x SXQ5 CL Plate

1 x SXQ5 VTX Plate

1 x SXQ5 FC Deck

1 x SXQ5 LIPO Deck

4 x SXQ5 ARMS (1 Silk Screened)

2 x SXQ5 PIVOT CNC BLOCKS

8 x M3 Tapped Stainless Steel Frame Inserts

3 x M3 x 22mm Standoffs

6 x M3 x 8mm Countersunk Screws

8 x M3 x 10mm Countersunk Screws

4 x M3 x 8mm Socket Head Cap Screws

4 x M3 x 5mm Socket Head Cap Screws

Build PDF is available for this link – SXQ5 Build Instructions (I will give you the link once I have uploaded it online)

The frame has been tried and tested by some of the top pilots in FPV Racing. You will not be disappointed with the SXQ5.
