H3X0R 3 Inch Hex Frame
Price :
$
39.96
Propeller size :
3"
Item List
-

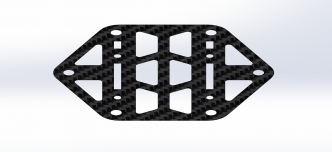

H3X0R Frame Top Plate 2mm
Quantity :1
-

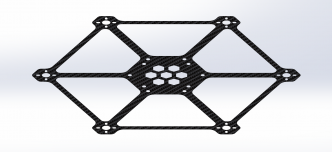

H3X0R Frame Bottom Plate 3mm
Quantity :1
-

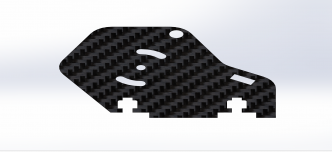

H3X0R Frame Camera Mount Plate 2mm
Quantity :1
-
25mm M3 F/F Alumi Tapped Standoff Black Anodized 5.5mm O.D.
Quantity :6
-
8mm M3 Steel Button Head Bolt Black Anodized
Quantity :14
-
8mm M2 Steel Cap Head Bolt Black Anodized (per piece)
Quantity :4
-
20mm M3 F/F Alumi Tapped Stepped Standoff Black Anodized 5.5mm O.D.
Quantity :1
Description
H3X0R - A true 165mm hex for 3" props.
Made to fit a Runcam Split or any camera which uses the same mounting pattern.
30.5 x 30.5 Board mounting pattern
Recommended Motor Size: 13XX-14XX
The 20mm standoff for the camera plate should really be 22mm, so if you can source a 22mm standoff I would recommend that. Otherwise, use a 1mm washer on both ends. The kit is also missing 4 M2 Lock nuts to hold the camera plates to the top plate.
