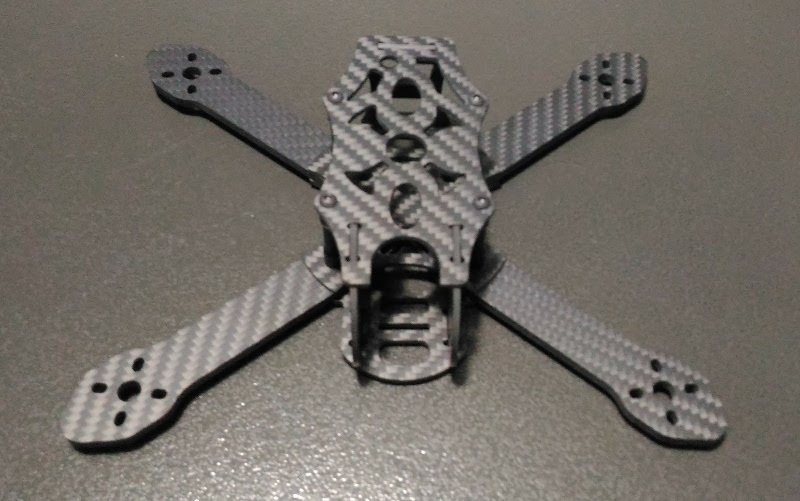

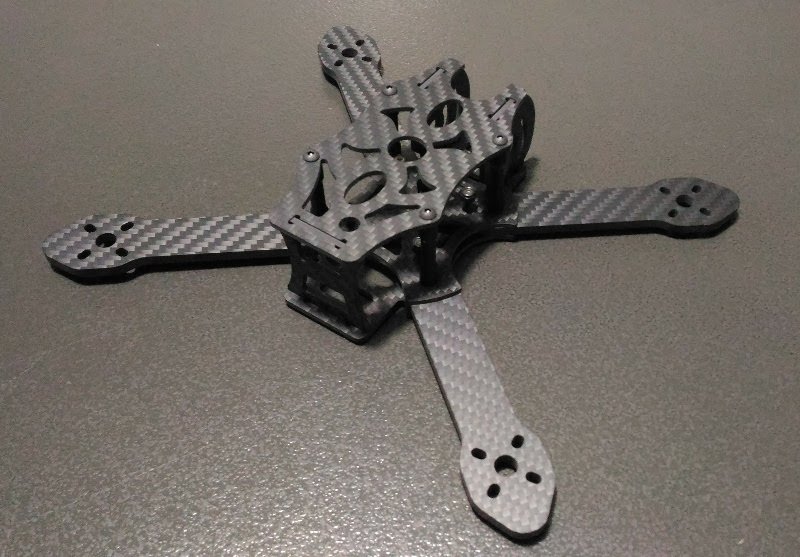

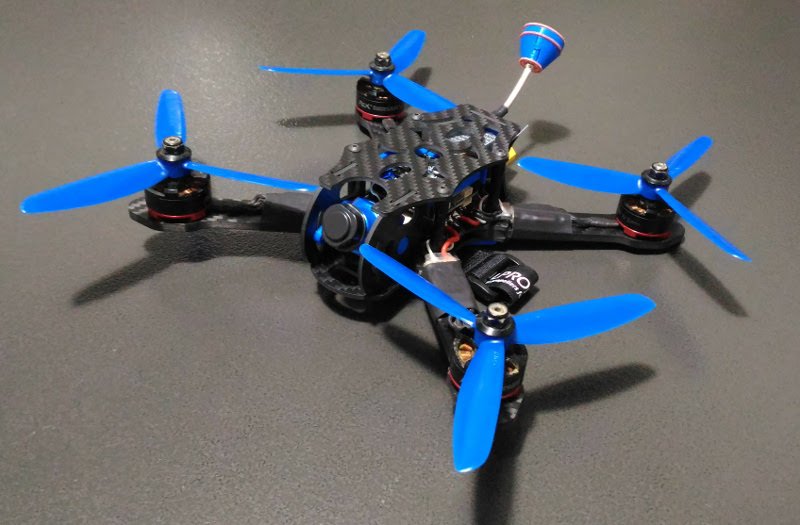

QKK Nibbio FPV 5 inch (210mm)
Item List
-
QKK Nibbio FPV top plate
Quantity :1
-
QKK Nibbio FPV rear panel
Quantity :1
-
QKK Nibbio FPV upper central plate
Quantity :1
-
QKK Nibbio FPV lower central plate
Quantity :1
-
Nibbio 5 inch arm (210mm frames)
Quantity :4
-
QKK Nibbio FPV Cam mount with protection holes
Quantity :2
-
7mm M3 Steel Button Head Bolt Black Anodized
Quantity :16
-
6mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
-
M3 Nylon Insert Nut Black Anodized (Nylock)
Quantity :4
-
30mm M3 F/F Alumi Tapped Stepped Standoff Black Anodized 6.3mm O.D.
Quantity :4
-
16mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
-
12mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
-
5mm M2 Steel Cap Head Bolt Black Anodized (per piece)
Quantity :8
Description
- Wheelbase: 210mm
- 4mm thickness replaceable arms (If you break an arm, just change it)
- 2mm thickness central plates
- Weight 102g included hardware (except motors screws)
- Motors: 2205/2206 2300/2700KV
- Max props dimension: 5"
- Suggested battery: LIPO 4S 1300/1400mAh 65C or more
- Optional 3D printable plastic parts, downloadables for free here
Additional Information
It's possoble to mount a mini format CAM (like the Foxeer Arrow Mini), using the support provided in the CAM package. (The maximum with is 28mm)
Are also available for free on Thingiverse the STL files, for print the support to fit various kind of FPV CAMs https://www.thingiverse.com/thing:2665707

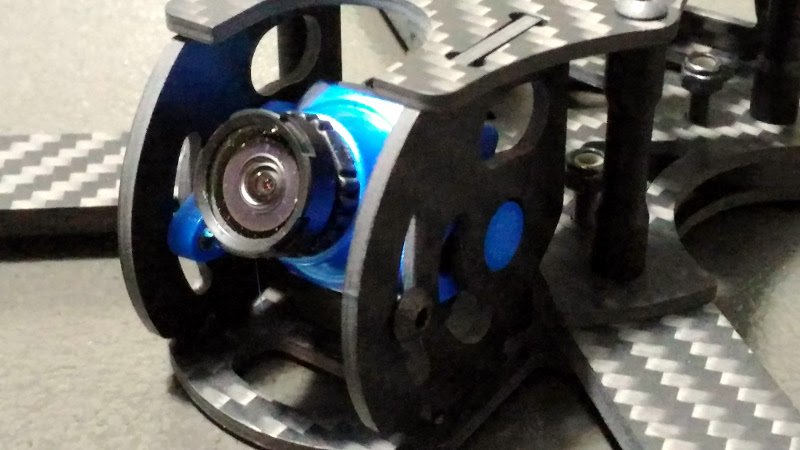

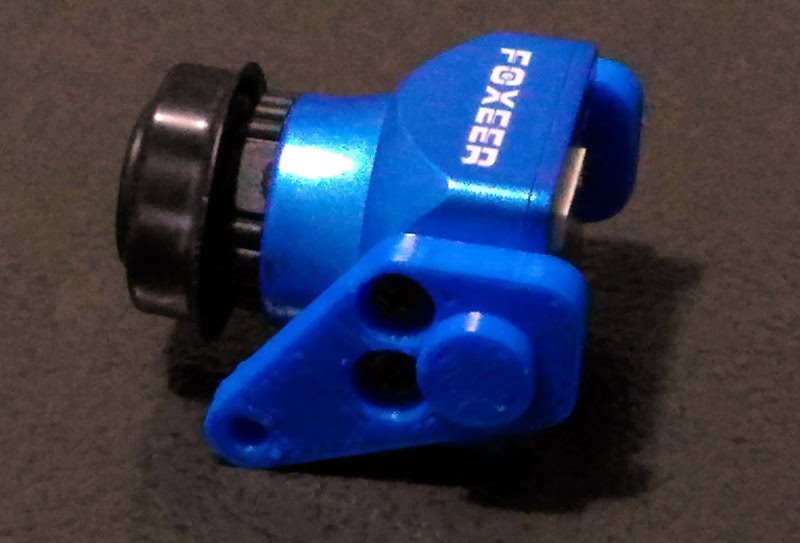

Like Foxeer Arrow Mini format:

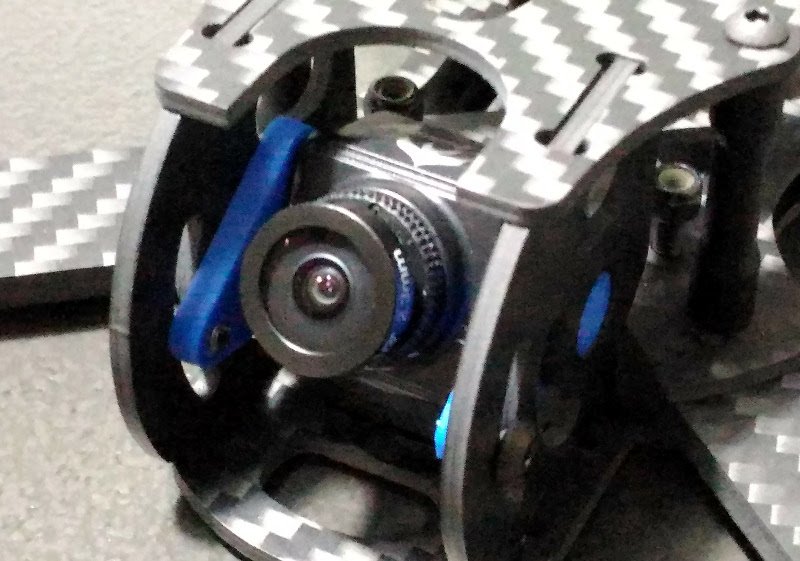

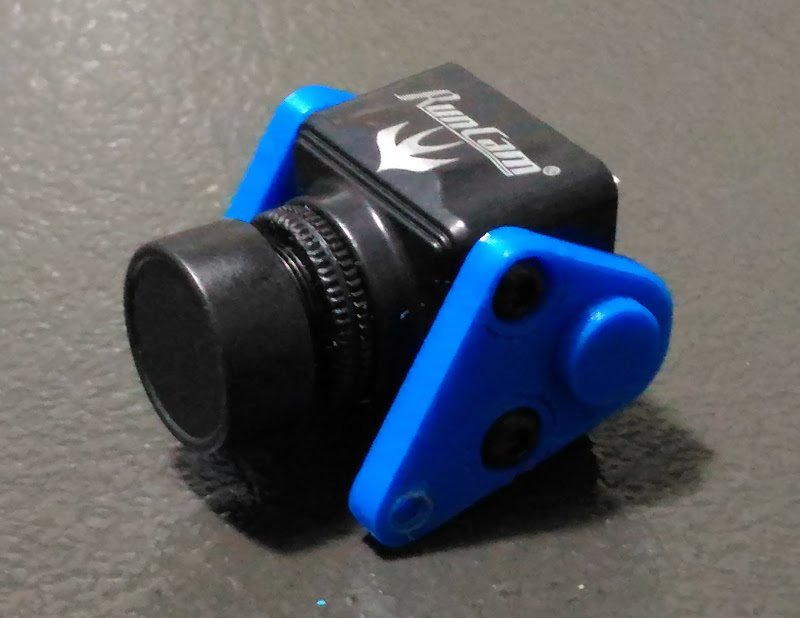

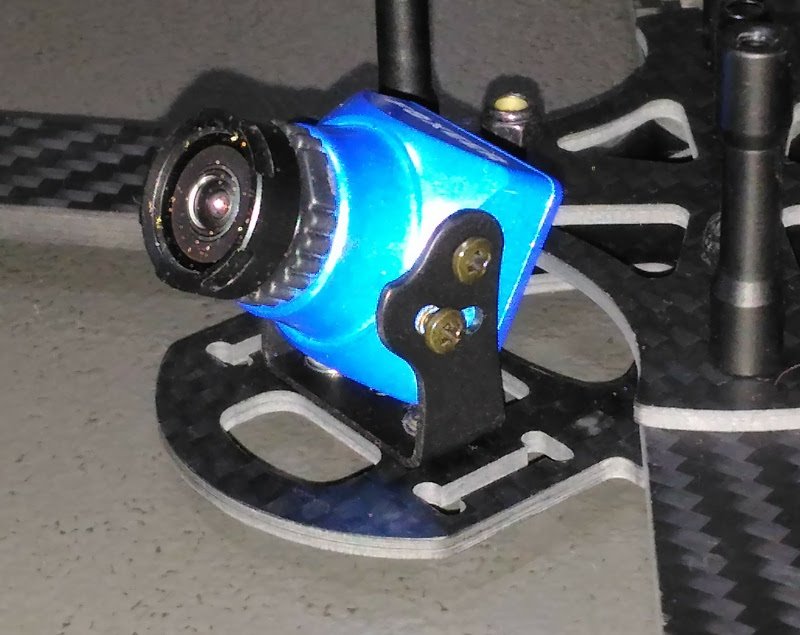

Runcam Swift Mini format:

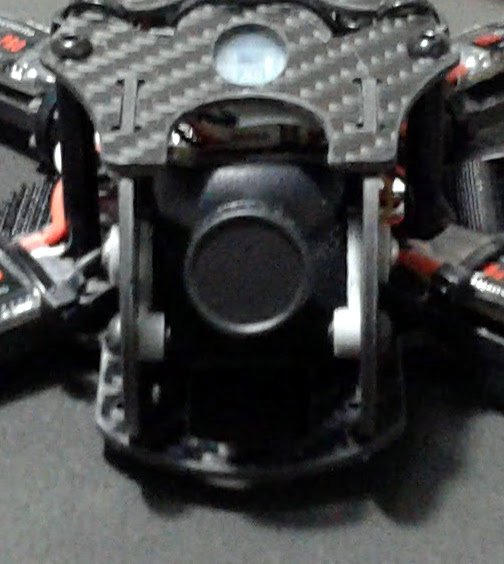

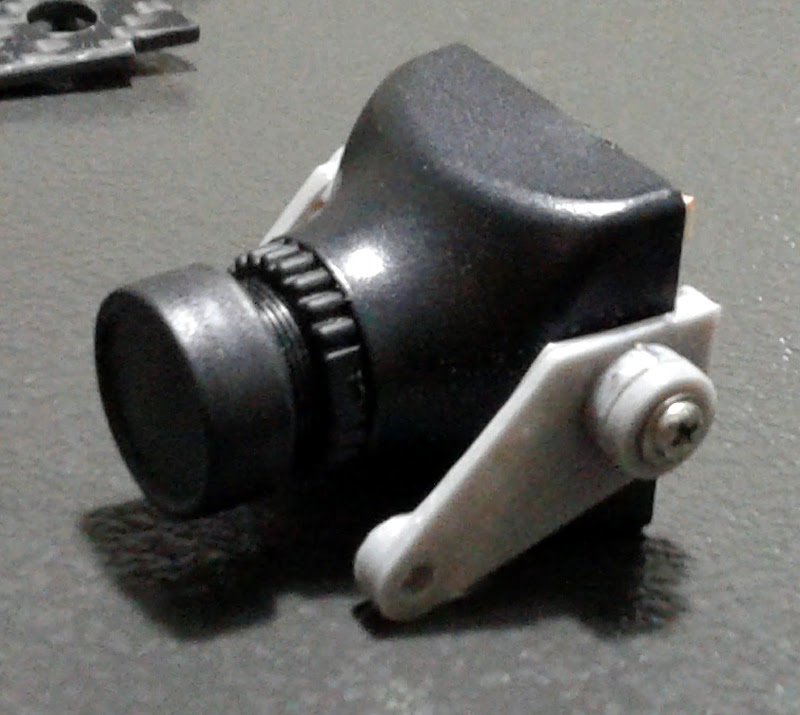

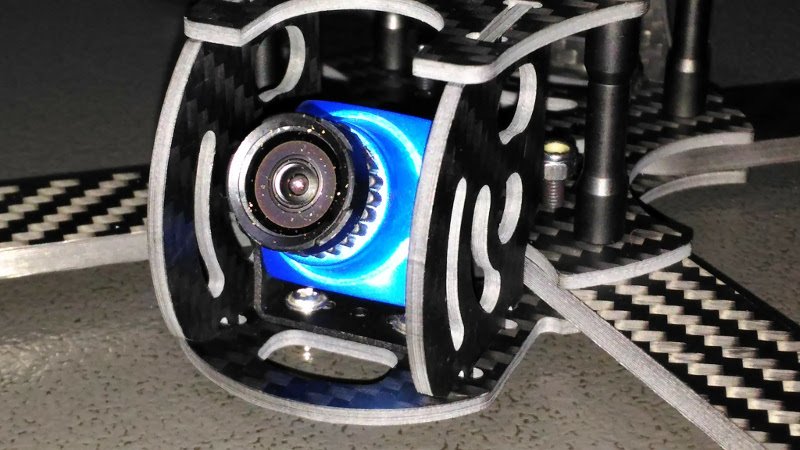

HS1177 Format (es.Swift):
Re also avaliable for download other accessories https://www.thingiverse.com/thing:2665707

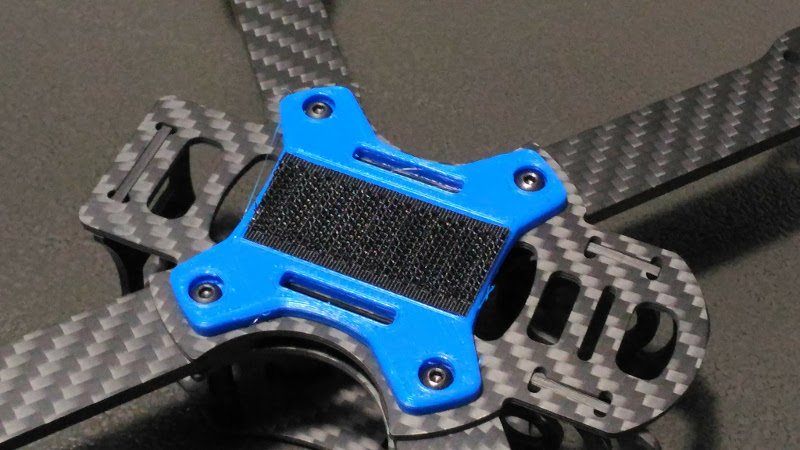

Like a battery support:

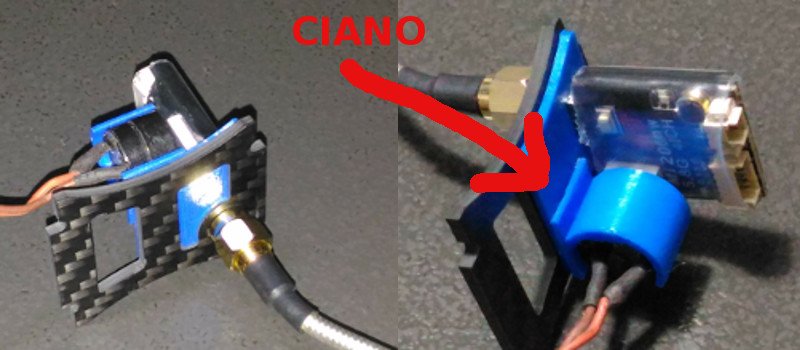

A rear panel able to fit a buzzer and avoid the VTX rotation:
.jpg)

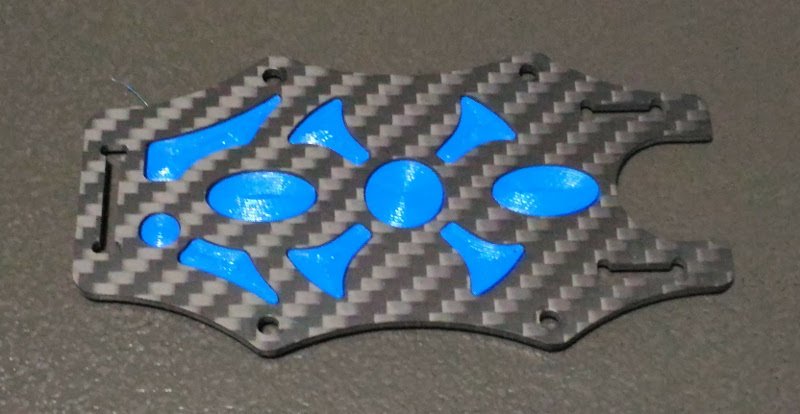

A top panel decoration:

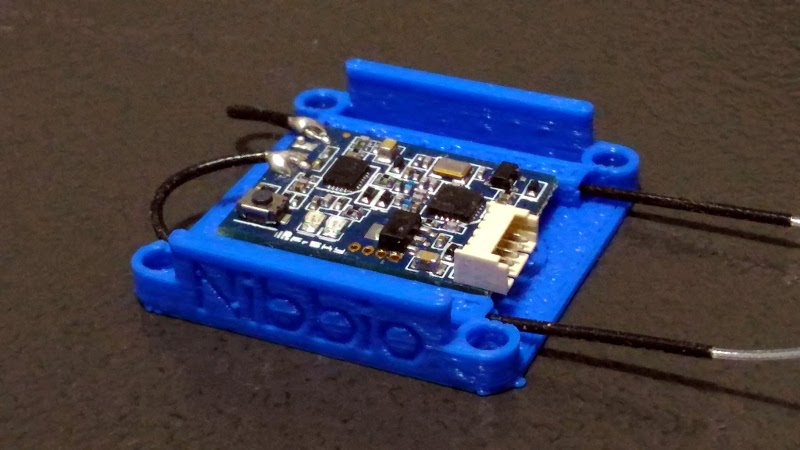

An RX support, to fit it over the FC:
And other things are coming soon..
