Q-frames
Q-frames designs frames and 3D models that can be found on Thingiverse or for people that want there own custom designs for them self.
The frames are designed to different standards because every body has his own preferences. Some want a light weight were others want a stronger frame. That is why Q-frames offer different types of frames in different sizes.
Q-frames will also over 3D models for the frames like cam mounts, arm protectors and more that can be downloaded for free from Thingiverse.
Ad this moment Q-frames is working to bring for all versions mounts for hd cam’s and arm and lipo protectors.
When ready, they can be found here. http://www.thingiverse.com/emiel1976/about
Ad this moment there are 2 different frames, the Q-SX218 and the Q-SX225 Extreme.
The Q-SX218 is a single bottom plate frame with an ultra low top plate. The wheelbase is 218mm.
The Q-SX225 Extreme comes in different options. The 5 inch has a wheelbase of 225mm. That is also the base for the other sizes.
Where the Q-SX218 is only available, the Q-SX225 is available in different styles like lightweight, single plate and from 4 to 6 inch.
Attention.
The frames made by Armattanproductions are made by the highest quality 3k carbon fiber.
All designs on Armattan Productions are manufactured-on-demand. It takes 7-14 business days to manufacture your order.
Any questions regarding your order should be directed to support@armattanproductions.com, other questions regarding the product can be send to Q-frames.
You can find the mail address in the top right.
?If you want to now what is comming next, follow me on instagram. https://www.instagram.com/emiel1976/
Stealth SX5
Item List
-
Stealth XS5 Top plate 2mm
Quantity :1
-
Stealth XS5 Bottom plate 2mm
Quantity :1
-
Stealth XS5 Bottom plate 1.5mm
Quantity :1
-
Stealth XS5 Arm 4mm
Quantity :4
-
25mm M3 F/F Alumi Tapped Standoff Black Anodized 5.5mm O.D.
Quantity :4
-
7mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
-
M3 Nylon Insert Nut Black Anodized (Nylock)
Quantity :8
-
12mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
-
16mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
Description

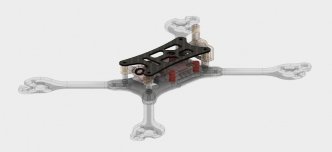

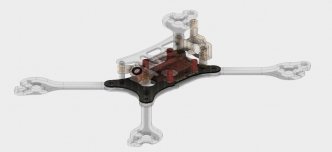

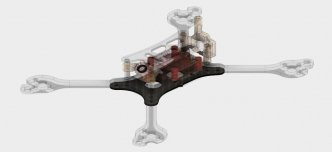

This is a 5 inch frame designed to fit 22xx sized motors and 20x20/30.5x30.5 electronics.
There is mounting for the Runcam/Foxeer micro and for the eachine vtx03.
The 3D parts are availeble on thingiverse.
https://www.thingiverse.com/thing:2528677
There will also be a vtx antenna mount for as you want to use a tramp or unify.
Additional Information
Spec's
Arms 4mm thick and 9mm in width.
Bottom plate 2mm
?Mid plate 1.5mm
Top plate 2mm
I made the bottom plate 2mm to get a bit more strength for the bigger lipo's
The plate is also wider than the 3 and 4 inch version.
Standoffs 25mm than are mounted on lock nuts to get a bit more space for electronics. You can also leave those away to get a lower frame.
