Phoenix 5inch StretchX v1.1
Item List
-
Phoenix Top Plate v1.1 - 2mm
Quantity :1
-
Phoenix Main Plate v1.1 - 2.0mm
Quantity :1
-
Phoenix 25mm camera plate v1.1 - 1.5mm
Quantity :2
-
Bottom Plate 1.5mm v1.1
Quantity :1
-

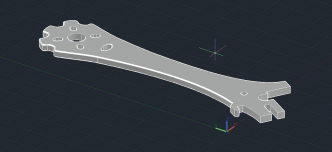

Phoenix StretchX arm_CHAMFERED_ALONG THE WEAVE_v1.1
Quantity :4
-
25mm M3 F/F Alumi Tapped Standoff Black Anodized 5.5mm O.D.
Quantity :9
-
12mm M3 Steel Button Head Bolt Black Anodized
Quantity :5
-
M3 Stainless Steel Sunk Nuts (per piece)
Quantity :5
-
7mm M3 Steel Button Head Bolt Black Anodized
Quantity :22
-
6mm M3 M/F Nylon Standoff (per piece)
Quantity :5
Description
Image will be updated with new render to show the altered wheelbase soon
Detailed aesthetic design
Compact and low profile with 25mm standoffs - can esaily fit 2 board stack, 3 is possible but will be tight
Space at back of frame for most vtxs to fit easily
Light weight at approx 100g complete frame weight
Very durable: 4mm individual arms with quick replacement system (only requires the removal of one bolt, and one more to be loosened a bit), 2mm main plate and 1.5mm top plate and reinforcing bottom plate
Compatible with a wide range of fpv cameras, and provides good protection to the camera
Battery can be top or bottom mounted (recommend bottom mount if using a gopro), strap hooks hold a 25mm strap securely in place
This is the stretch X version of the Phoenix. Wheelbase is narrow accross the roll axis, and elongated on the pitch axis
