Adam Wilkinsons Multirotors

Here you will find the multirotors that I've build for myself but also have for sale :)

ZMR Micro v2


Price : $ 12.88

Propeller size : None



Description

Please note that this kit requires 6x M2 20mm stand offs. Armattan doesn't stock these.

Also note that I don't personally have my copy of this v2 frame yet. I am confident my changes will work out well but there is a small chance I could have overlooked something. I will update this page when I have built mine up.

This frame started out as something I quickly drew up to allow me to recycle components I already had and start flying micro quads with friends. The original design allowed for a D4R-II and Afromini flight controller mounted in the back. The top plate design is very similar to the "ZMR Slim" that I made a few years ago so that's where the name has come from for this quad.

ZMR Micro v1:

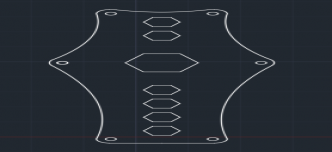

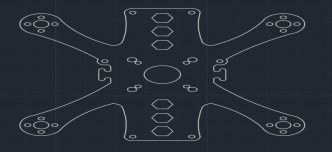

ZMR Micro V1:



I wasn't expecting much from the original quad, but it turned out much better than I thought. The components are well protected due to the enclosed middle section so after many crashes I am yet to break anything. The only issue with the original frame is that the tabs for the rubber band to hold the battery on were pooly designed so after a crash, the rubber band would often fly off.

The ZMR Micro V2 addresses the battery mount issue as well as including many other small changes. The motor to motor distance is a little less decreasing the chance of clipping a gate. The motor to motor distance on v1 was 113mm, and on v2 it is 105mm.

The middle section is also shorter, so component selection is a little more important but there is still quite a lot of room for a 2" quad making for an easy build.

The mounting holes in the middle of the frame allow for a 20x20mm flight controller, or a 16x16mm.

The largest prop you can fit on this frame is 2" and the motor mounts are for 11xx motors or similar.

For mounting the FPV camera, I personally find double sided tape and a bit of hot glue to work well. There is no specific way to mount the camera within the design, so you'll have to get creative.

There are so many potentially great power combinations for this frame, but for my indoor quad I'll be using:

1104 6500KV motors

Gemfan 2035 Quad props

550mAh 2S
