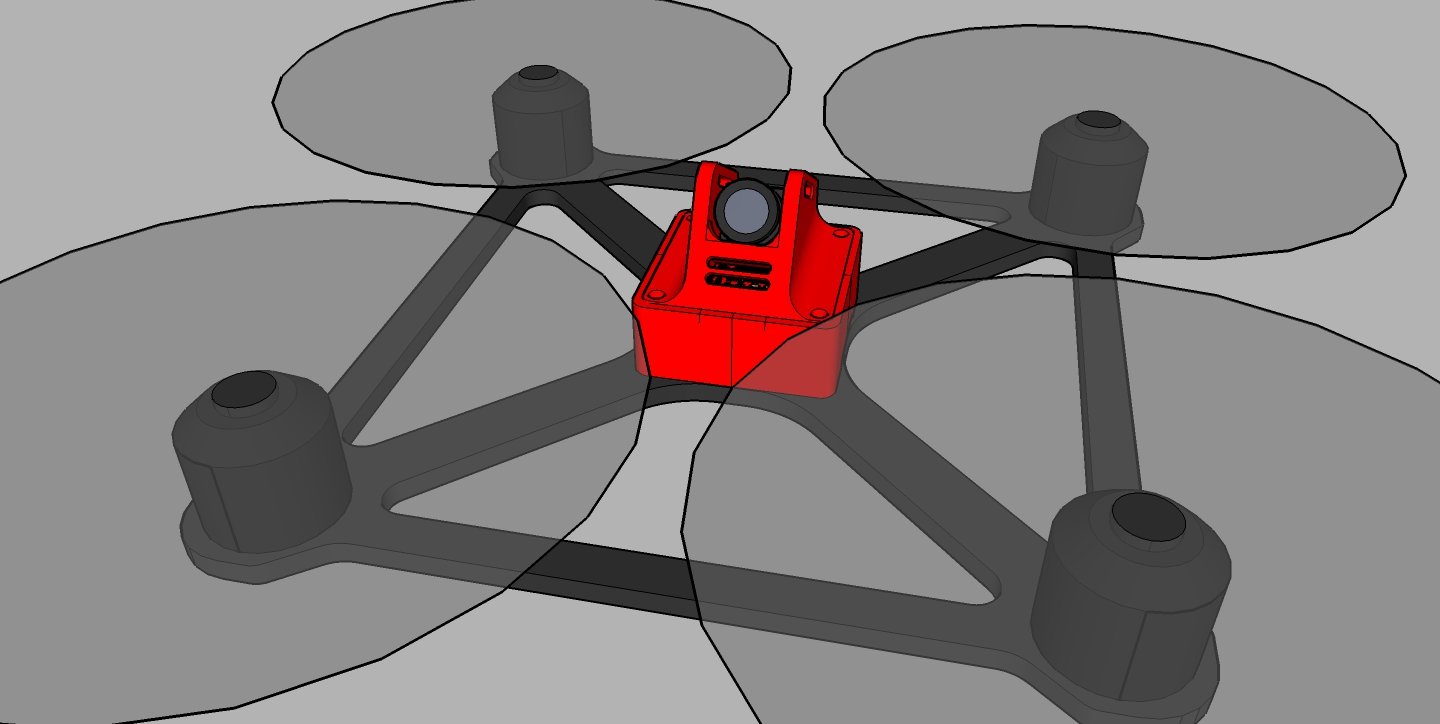

Compact design based on other great frames like the Phoenix Flight Gear Ring and more recently the Black Bolt XBR.

3mm thick frame (for overkill, try the heavy and expensive 5mm ver.)

242g aprox build weight with 1806 motors (22g)

280g aprox weight with emax 2205 (29g)

194mm motor to motor.

5in prop max size.

Please see FPV camera mount available here: http://shpws.me/KZfk

Box Skirt is available here: http://www.shapeways.com/product/AA9X5MGES/rg-194x-skirt-box

Hardware needed:

4x - 3Mx28mm machine screw (i used 25mm steel but 27mm aluminum might be best)
https://www.ebay.com/ulk/itm/151687284587

12x - 3M nylon nut

4x - 3Mx1mm rubber o-ring optional

4x - 6mm spacer

4x - plastic washer to isolate PDB from frame.

stack up top to bottom is

camera mount

fc

rx

pdb (make sure to use nylon spacers and electrical tape to isolate pdb from carbon frame)

frame

thanks!

rudygon

Will be testing this with some of the heavier motor options out there currently.

Compatible with 3D printed parts from the 3mm version.
