Kit Details

Item List

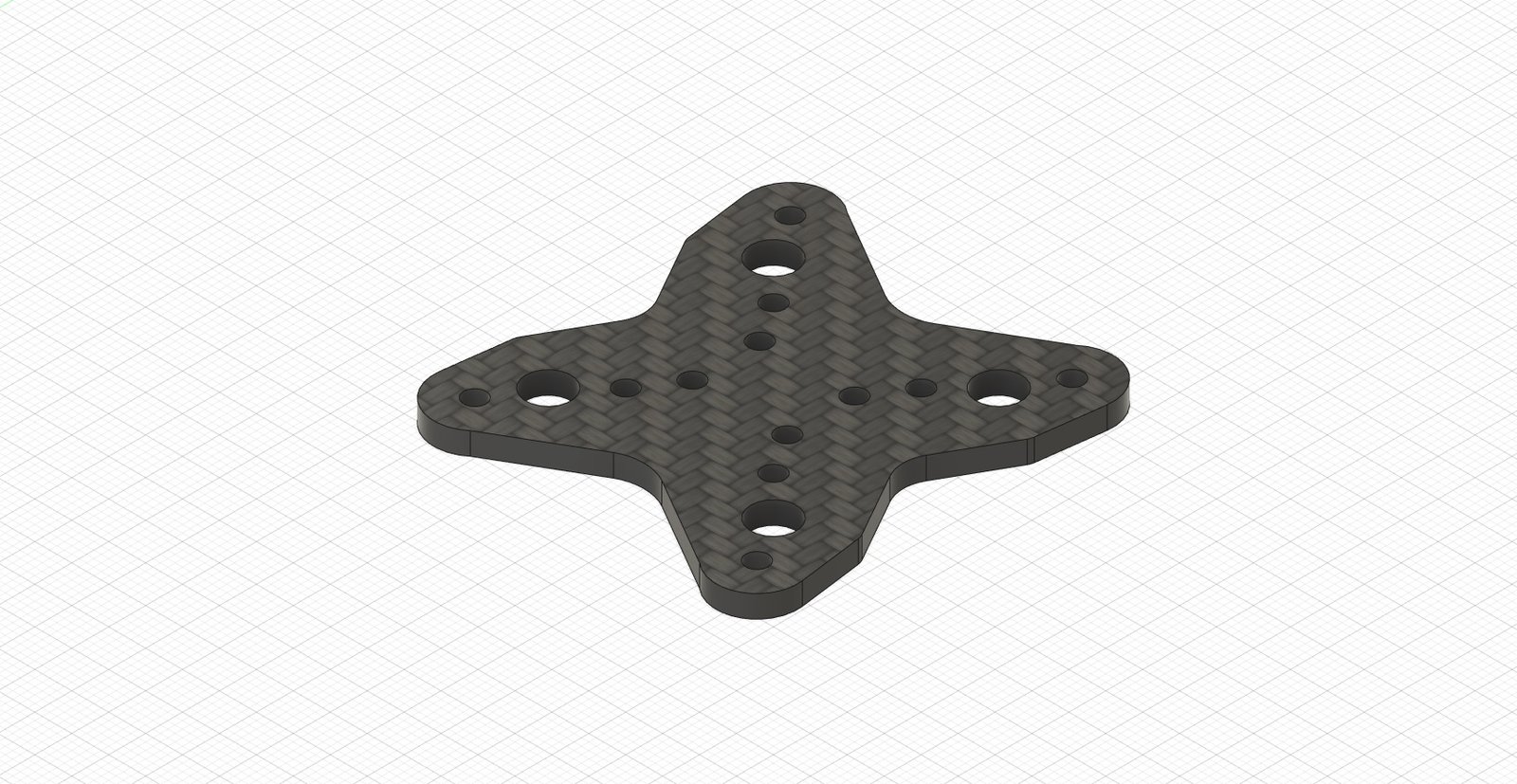

SONIC FIVE - TOP PLATE Quantity :1
SONIC FIVE - CENTER PLATE Quantity :1
SONIC FIVE - BOTTOM PLATE Quantity :1

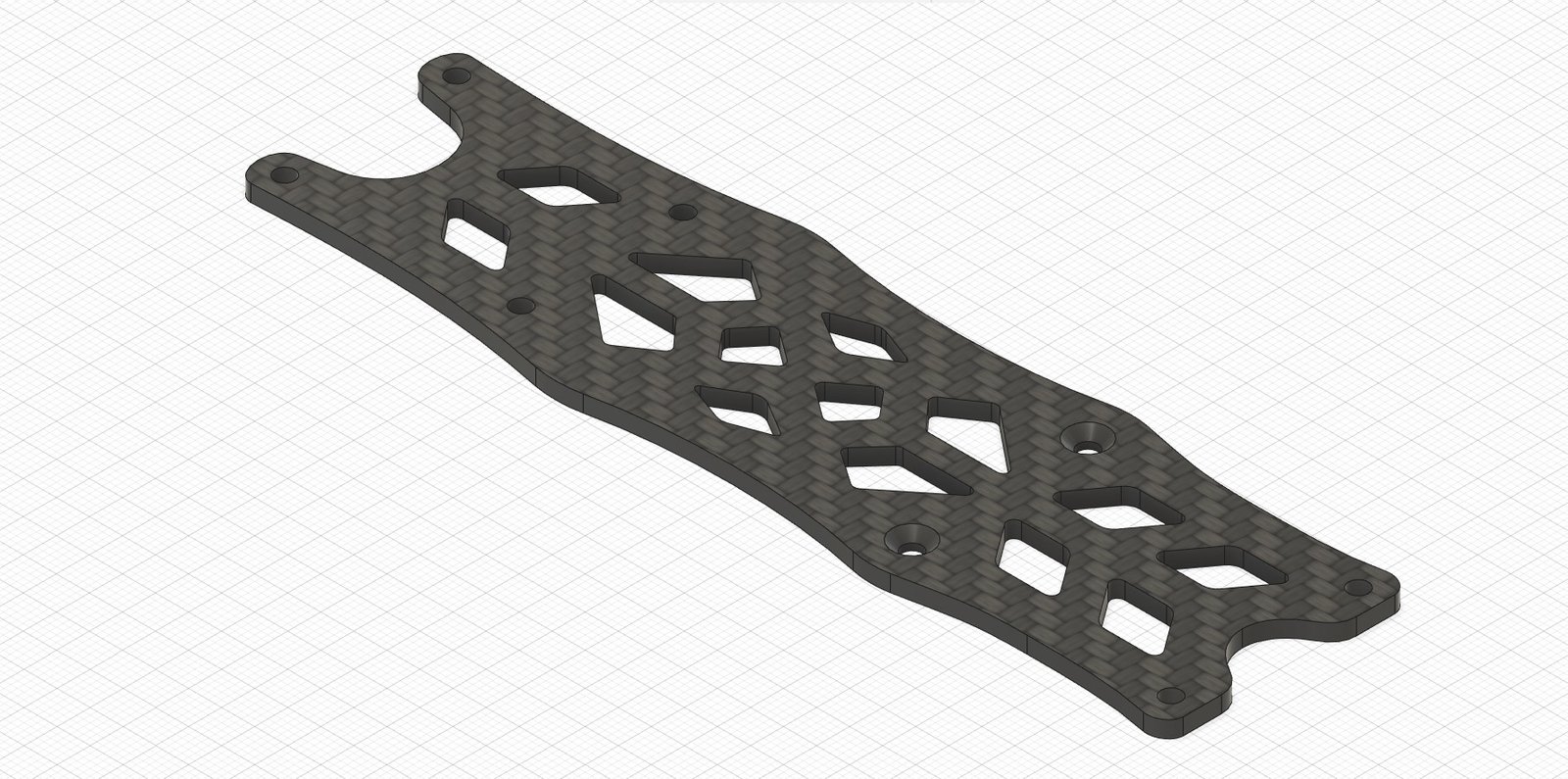

SONIC FIVE - ARM 5 inch Quantity :4
8mm M3 Steel Button Head Bolt Black Anodized Quantity :16
14mm M3 Steel Button Head Bolt Black Anodized Quantity :8
28mm M3 F/F Alumi Tapped Stepped Standoff Black Anodized 5.5mm O.D. Quantity :8
M3 Stainless Steel Sunk Nuts (per piece) Quantity :8

Description

ABOUT THE FRAME:

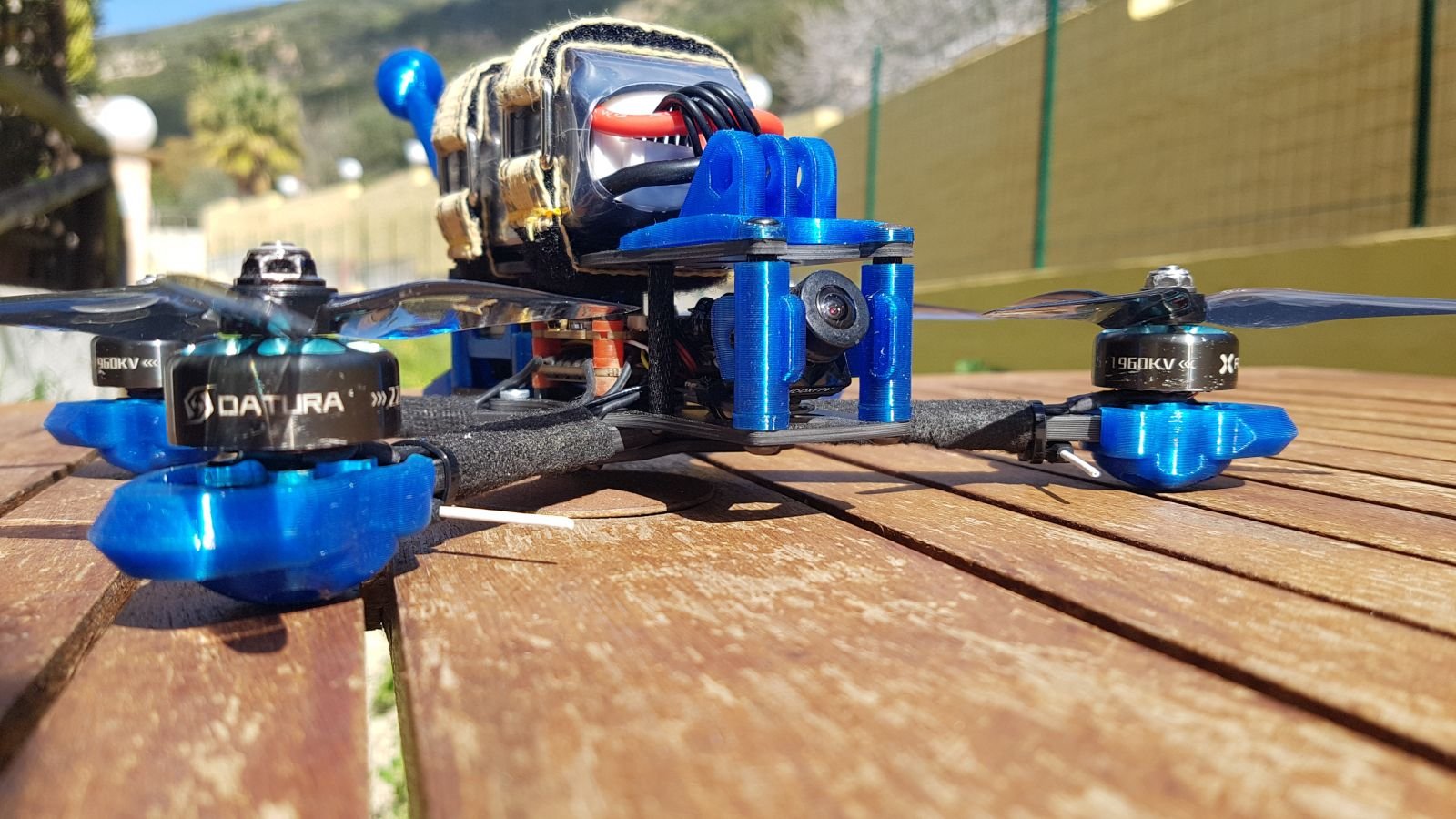

The SONIC FIVE is a compact and durable freestyle frame for those looking for challenges in the most demanding scenarios.

The internal frame offers plenty of space to store all components easily.
The frame is versatile and suitable for all situations, the very clean BLACK BOX LOGS make it also suitable for kinematic and MID Range flights.

Fast arm removal. Just unscrew two screws and the arm comes off, no need to remove the stack.

Isolated from vibrations. The stack is only fixed in the centre plate. The stack screws are never in direct contact with either the arms or the bottom plate.

Quick and easy to assemble. The number of carbon parts and hardware is reduced to the essentials: 3 plates, 4 arms, 8 standoffs, that's all you need.

Squashed X Design. This configuration has greater stability on the roll axis and reduces the presence of propellers in the FPV camera.

Compatible with Digital and Analogue. The major HD and Analogue video systems can be used: DJI O3, CADDX VISTA, WALKSNAIL MOONLIGHT, AVATAR HD, HDZERO Freestyle V2 and RACE V2 & V3. Also compatible with most analogue VTXs on the market.

SPECS:
Top Plate: 2.5mm
Center Plate: 3.0 mm
Bottom Plate 3.0 mm
Arms: 6.0 mm

REQUIRED EXTRA HARDWARE (Not included in this kit):
2pcs M3x8mm countersunk screws

https://s.click.aliexpress.com/e/_DEOJlfr
https://amzn.to/4bMaY5f
https://www.banggood.com/custlink/Gmm5U5Td0S

TPU PARTS:
https://bit.ly/SONIC5-TPU

Assembly:
