ARMATTAN GECKO DJI 3.5 INCH CONVERSION KIT - CADDX VISTA / POLAR - 3MM FRAME - 12MM MOTOR PATTERN


Price : $ 31.60

Propeller size : 3.5"



Description

Introducing the Armattan Gecko DJI 3.5 inch Main Plate conversion kit. Featuring a 3mm main plate designed for a 20x20 flight controller with 12mm motor mount pattern for 4s-6s 1505, 1606, 1808, 2004 or even 2203.5 motors (crazy fast and agile).

DronerFPV designed with Armattan Productions to replace the existing Armattan Gecko 3 or 4 inch and feel more like a 5-inch freestyle frame with more agility, zippiness and flight time. The LIPO plate sits taller with the use of 2-20mm standoffs on the back to allow for the addition of the Caddx Vista or Caddx Polar with plenty of room and is also longer to hold 650mAh batteries. You can also add 1.5mm standoffs in front to increase the height with the existing camera bracket or use the new one.

The added stability, motor and battery size make it perfect for carrying the extra weight of a Naked GoPro, SMO4K or Insta360 GO2 or GO to capture your freestyle footage in HD.

Additional Information

Includes:

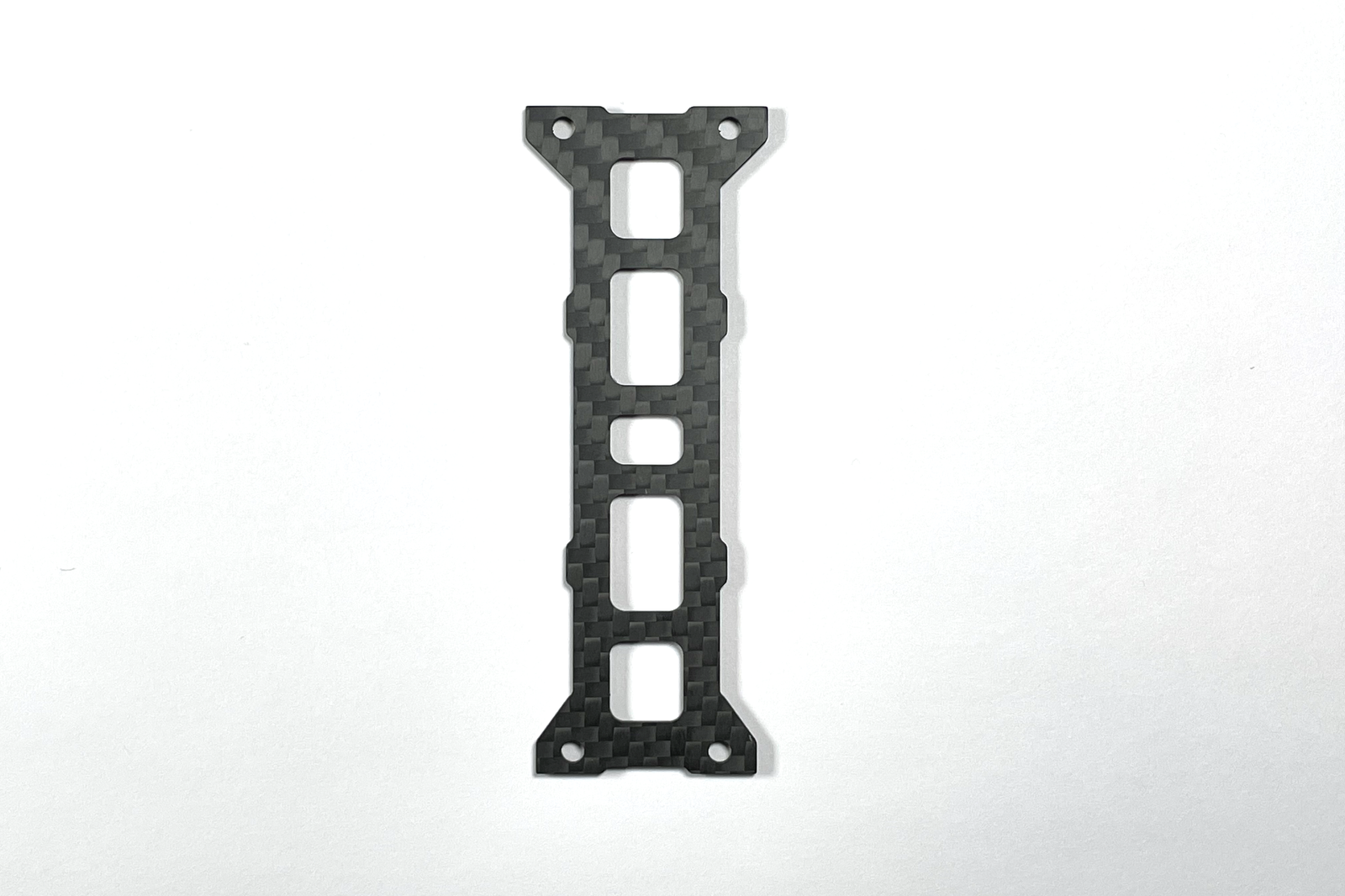

  • 1 x Armattan Gecko DJI 3.5 inch Main Plate Conversion Kit for Caddx Vista or Polar - 20x20 flight controller and 3mm plate thickness with 12mm motor mounts (Main Plate).

  • 1 x Armattan Gecko DJI Extended LIPO Plate

Assembly and hardware needed:

  • 2x Titanium Gecko Camera-cage braces
  • 2x Gecko Camera-saver braces

  • 1x 19.1mm Front M3 standoff (silver)

  • 2x 22mm M3 Back standoffs black (these could be 23mm if that's all you have)

  • 8x 6mm button-head M3 bolts

  • 2x 4mm button-head M3 bolts

  • 10x 18mm Iron cup head screw black anodized

  • 10x M2 Nylon insert nut black anodized (nylock/lock nut)

  • 1x LiPo strap

  • 2x Tadpole LiPo foam pad (designed the LiPo plate to be same size width as Tadpole, but you need two)

  • 2x Dog-bone landing pads (these can be cut in half)

  • 1x TPU Antenna print
