Kit Details

Item List

Top Plate Nakado/Pro Quantity :1
SW Top NK Quantity :1
SW Bot NK Quantity :1
Carbon Finn Nakado/Pro Quantity :1
Carbon Cam Support Nakado/Pro Quantity :2
Mid Plate NK Quantity :1
Arm NK Quantity :4
M3 Stainless Steel Sunk Nuts (per piece) Quantity :6
8mm M3 Steel Button Head Bolt Black Anodized Quantity :4
6mm M3 Steel Button Head Bolt Black Anodized Quantity :10
25mm M3 F/F Alumi Tapped Standoff Black Anodized 5.5mm O.D. Quantity :4
10mm M3 12.9 Grade Steel Button Head Screw Black Anodized Quantity :4
11mm M3 Steel Button Head Bolt Black Anodized Quantity :4

Description

The 2020 Nakado is the racing version of the 2020 frame; it is extremely light weight and with its middle plate the arms will stay rigidly in their position!

This frame is compatible with all 36x36 and 20x20 stacks and in 25mm of height you can place pratically everything; the arms are easily replaceable: unscrewing the "external" M3x11mm srew (and looseing the "internal" screw if you are using 36x36 stacks) the arm should come off.

All the frame is constantly improved, working with pilots i can guarantee them a relaiable and performing frame.

If you have a 3D printer or you can print 3D models you can find all the "extra components" (cam mount, finn, antenna mount and capacitor support) on my Thingivers:

TPU Fin: Here

TPU Cam Cover: Here

TPU Capacitor Support: Here

NOTE: The pressnuts are not preinstalled

Frame specification:

Weight: 54g/65g (with all TPU parts)

Wheelbase: 190mm (5"/5,1")

Total height: 36mm Housing height: 25mm

Arms: 5x8,5mm

Bottom plate thickness: 2mm

Central, top and side plates thickness: 2,5mm

Propeller Size: up to 5.1"

True X

Compatibility:

All 30x30 and 20x20 stacks

All motors with 16-19 mounting holes

All nano cameras (*if you print the cam mount you can only use 12mm lenses)

Tips:

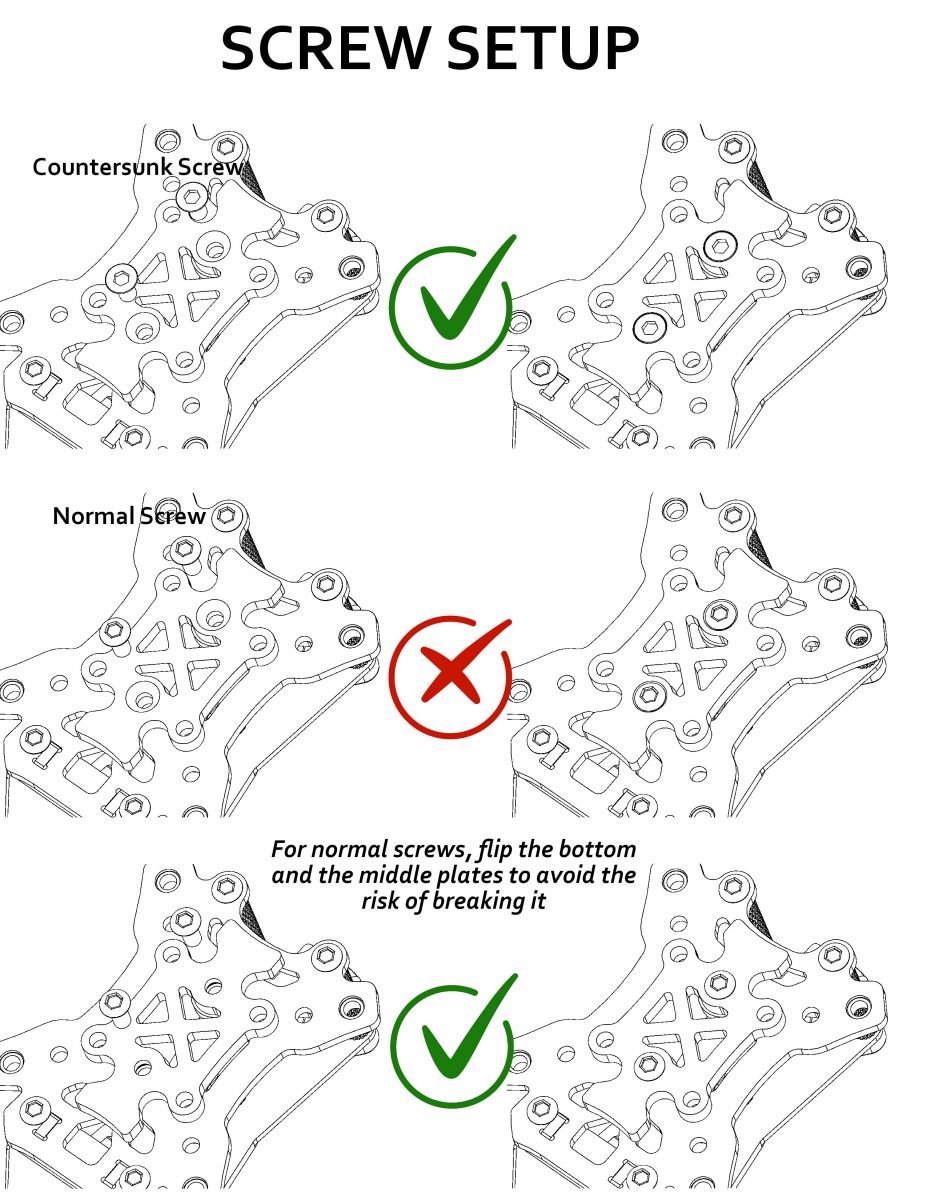

In the kit the countersunk screws, for the bottom and middle plate, are not included, if you have not countersunk screws i advide you to mount the bottom and the middle plates with the countersunk holes facing the arms and use the normal screws included in the kit.

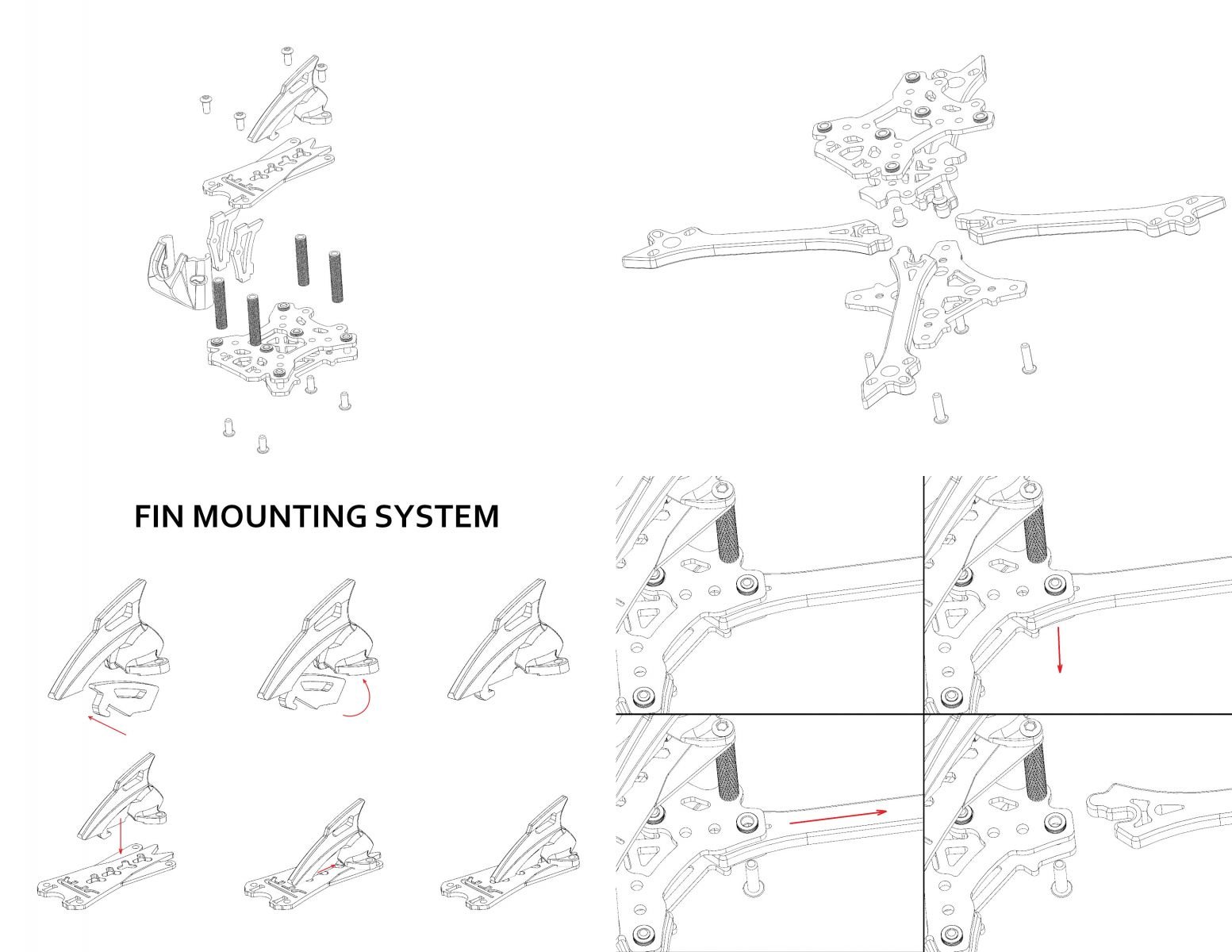

(In the kit are included the M3x8 screws for the 20x20 stacks mounting; if you mount 36x36 stack, use the M3x11 screws)

P.S.: In the picture you can see the Nakado Pro because i wasn't able to take a picture of the "basic" Nakado but the Nakado and the Nakado Pro are aesthetically the same unless for the middle plate
