DFR Frames
2020
Item List
-
SW Bot 2020
Quantity :1
-
Carbon Cam Holder 2020
Quantity :3
-
Arm 2020
Quantity :4
-
SW Top 2020
Quantity :1
-
Top Plate 2020
Quantity :1
-
Side Reinforcement 2020
Quantity :3
-
2020 Carbon Fin
Quantity :2
-
M3 Stainless Steel Sunk Nuts (per piece)
Quantity :13
-
11mm M3 Steel Button Head Bolt Black Anodized
Quantity :9
-
7mm M3 Steel Button Head Bolt Black Anodized
Quantity :13
-
6mm M3 Steel Button Head Bolt Black Anodized
Quantity :5
-
25mm M3 F/F Alumi Tapped Standoff Black Anodized 5.5mm O.D.
Quantity :5
-
14mm M3 Steel Button Head Bolt Black Anodized
Quantity :5
Description

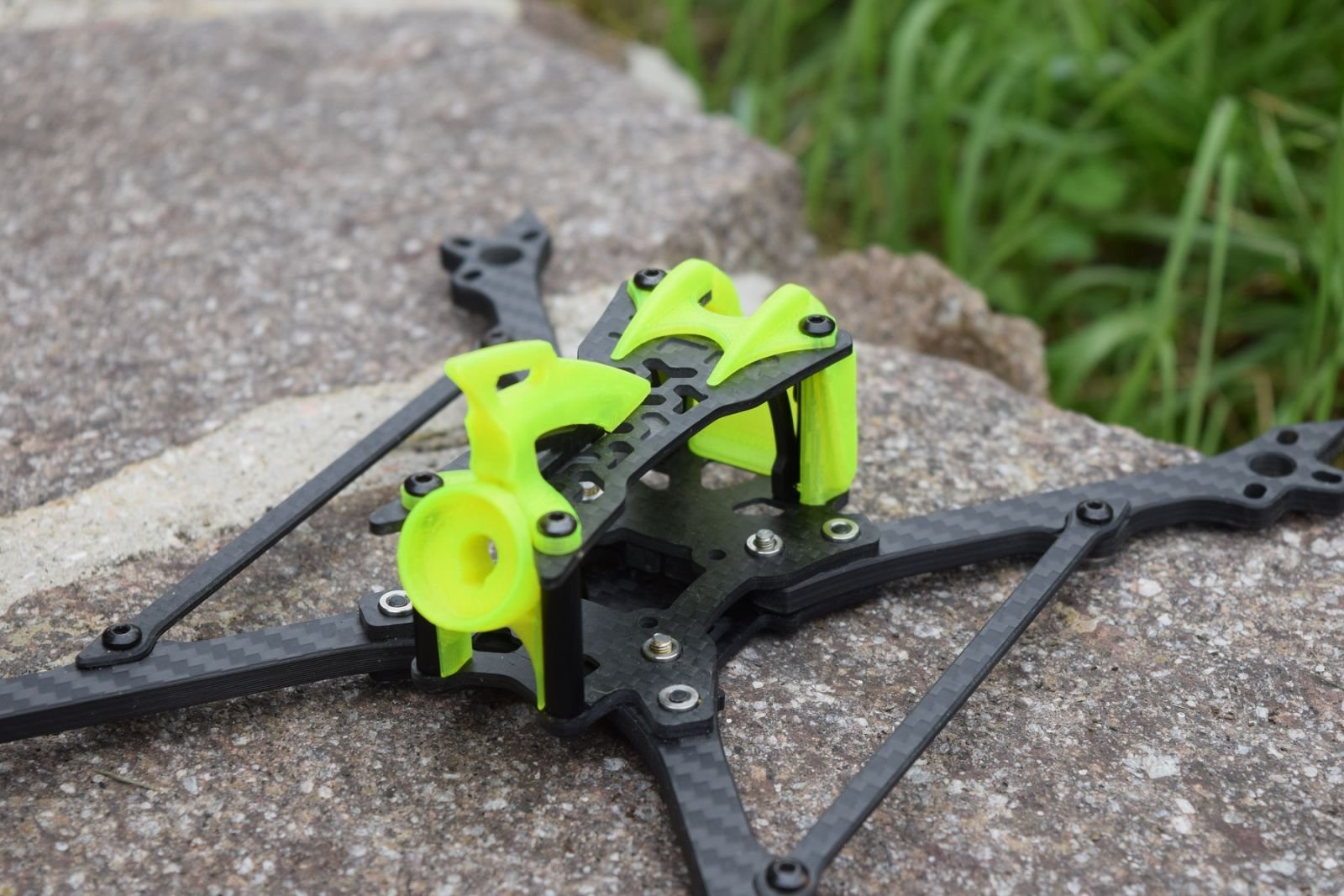

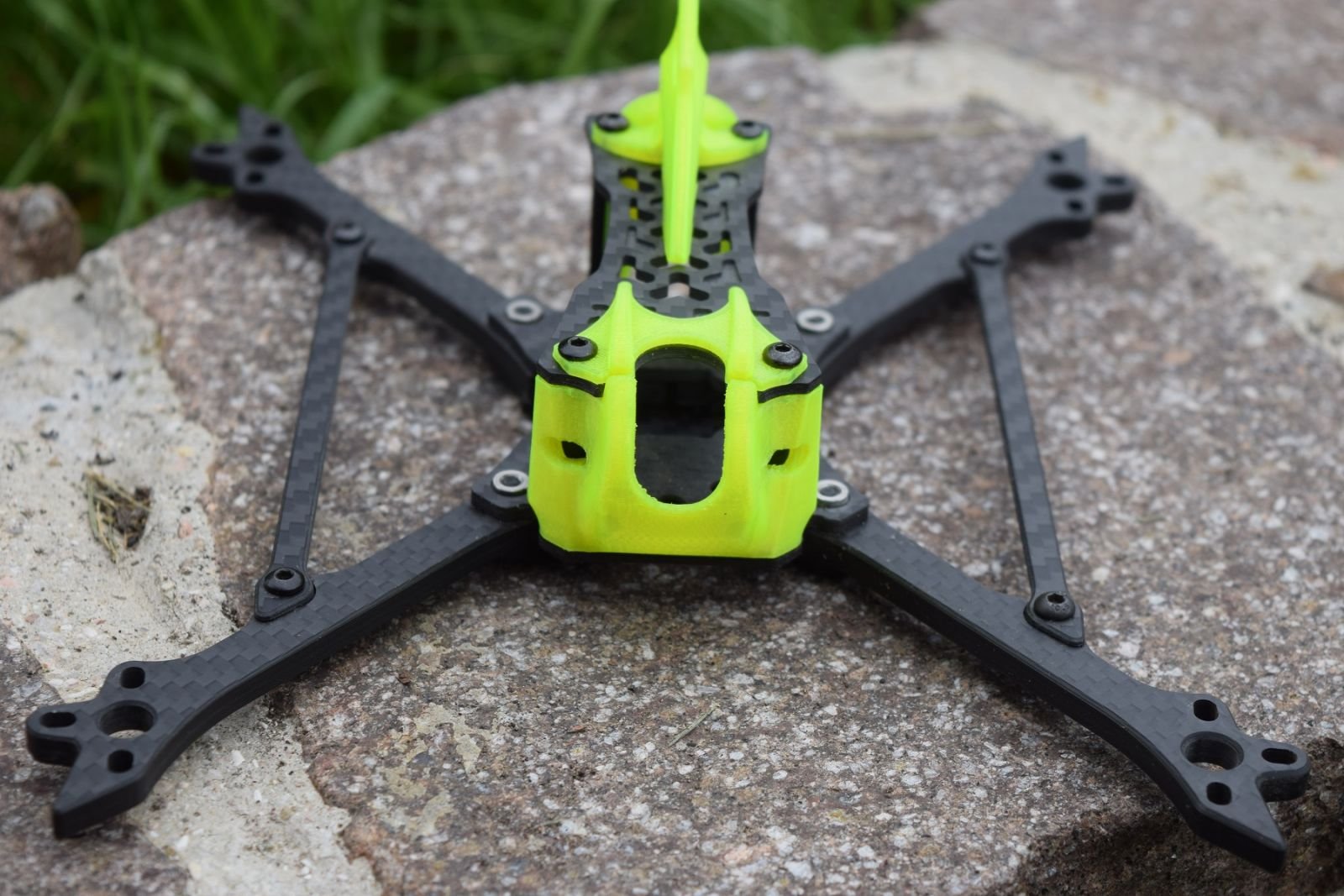

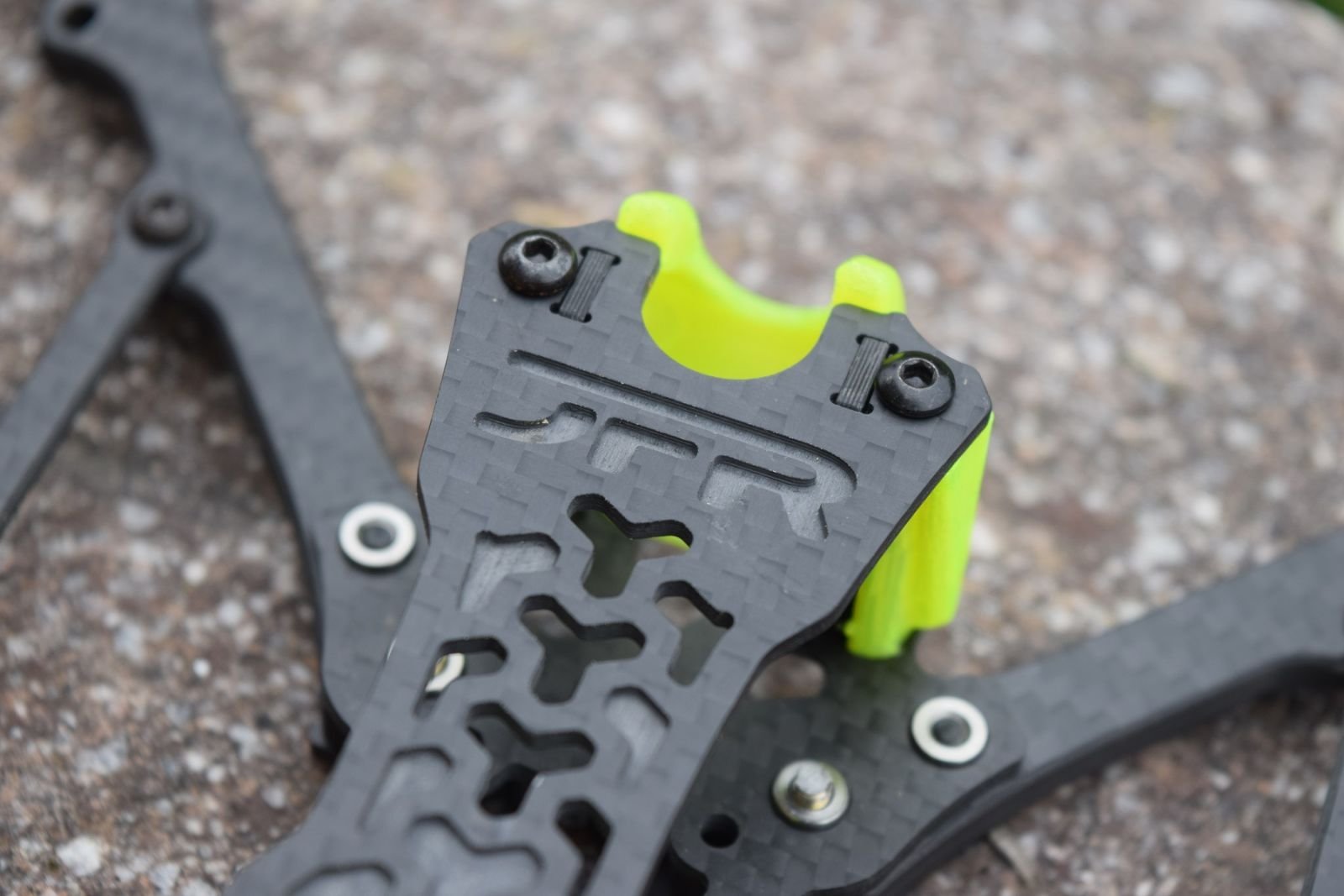

The 2020 is a very strong frame, light and cool, compatible with all 36x36 and 20x20 stacks and FCs; in 25mm of height you can accomodate practically everything, 4in1 ESC, FC and VTX; the arms are easily replaceable: unscrewing the "external" M3x11mm srew and looseing the "internal" screw the arm should come off.
All the frame is constantly improved, working with pilots i can guarantee them a relaiable and performing frame.
If you have a 3D printer or you can print 3D models you can find all the "extra components" (cam mount, finn, antenna mount and front winglets) on my thingivers:
https://www.thingiverse.com/Difo_96/designs
NOTE: The pressnuts are not preinstalled
Frame specification:
Weight: 87g (with all TPU parts)
Wheelbase: 210mm
Total height: 37mm Housing height: 25mm
Arms: 5x9mm
Bottom plate thickness: 2,5mm
Central, top and side plates thickness: 2mm
Propeller Size: up to 5.1"
"DFR One Finger" stretched X
Compatibility:
All 36x36 and 20x20 stacks
All motors with 16-19 mounting holes
All micro and nano cameras (*if you print the cam mount you can only use 12mm lenses)
Tips:
In the kit the countersunk screws, for the bottom plate, are not included, if you have not countersunk screws i advide you to mount the bottom plate with the countersunk holes facing the arms and use the normal screws included in the kit.
(In the kit are included the M3x6 screws for the 20x20 stacks mounting; if you mount 20x20 stack, use the M3x11 screws for the 30x30 mounting holes instead of M3x14 screws)
