The Squirrel

Item List

Description

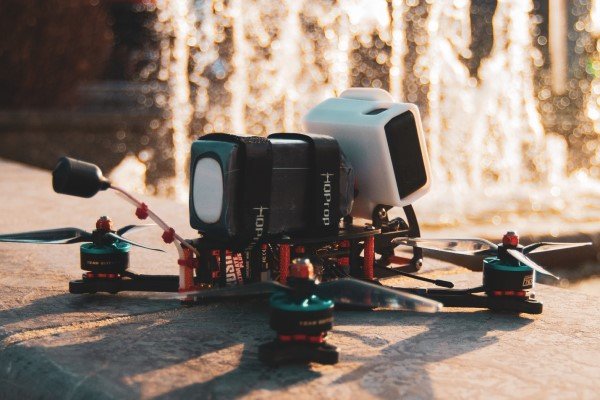

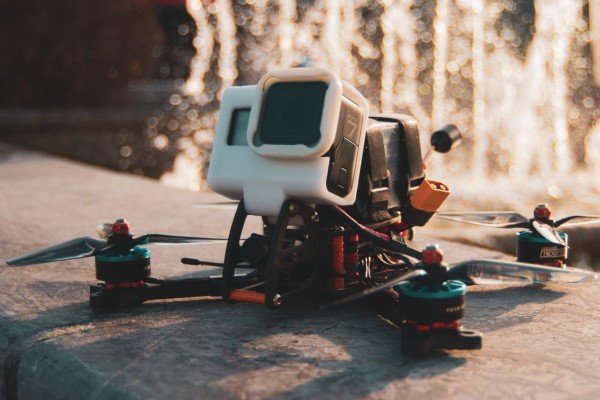

Here is The Squirrel, my first 5" freestyle frame !

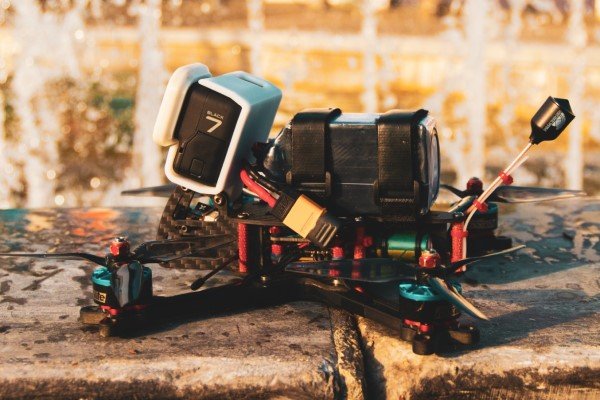

This frame is able to carry a Gopro Hero 7 or same form factor on dynamic flights and to handle crashes pretty well.
To achieve that, I designed a very compact and unique frame.

The short arms are thick, very rigid and strong but aerodynamic because chamfered and not too wide, and add protections for the motors.
The bus is very airy at the front and compact at the rear, so the air flow from the propellers is not affected.

The electronics stack has its own screws, not shared with the arms, for less vibrations and easier maintenance.
The RX and its antenna are far from the VTX, so they do not interfere with each other.
There is a housing in the camera plates dedicated to the Immortal-T

The 3d file to print the gopro support in tpu is available here : https://www.thingiverse.com/thing:3947248

Size : 213mm

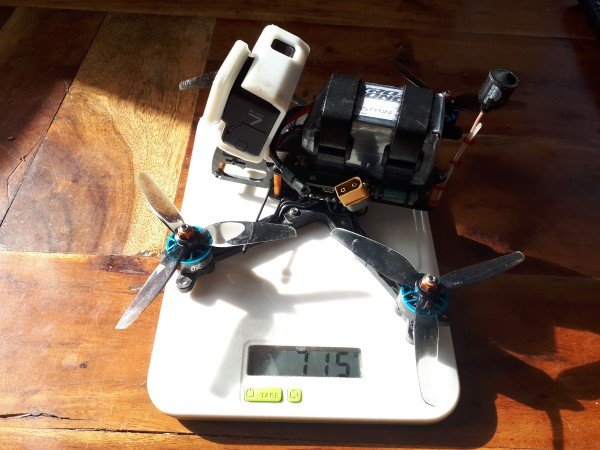

Weight (carbon + metal) : about 130g

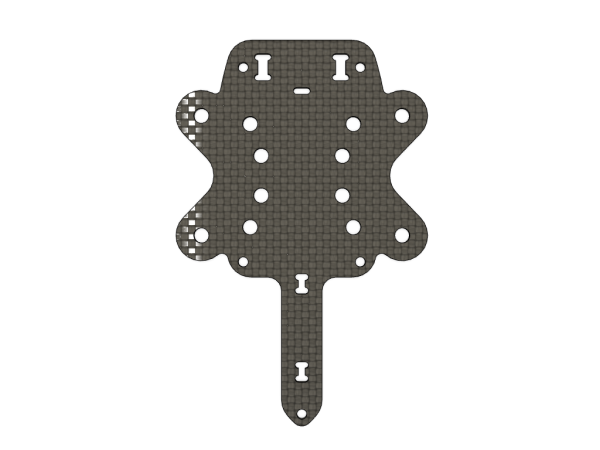

Thickness of the plates (except the camera plates) : 2mm

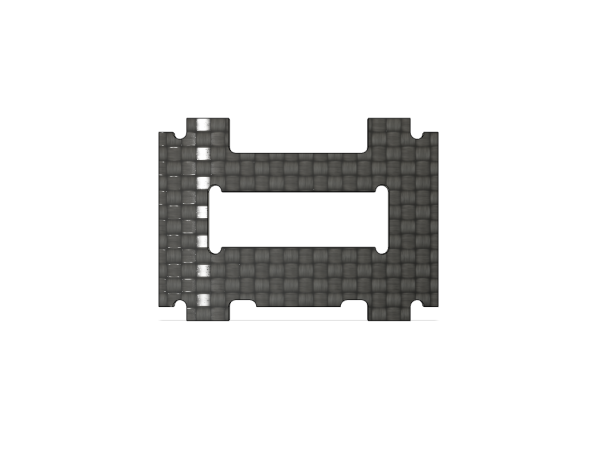

3mm chamfered camera plates
6mm chamfered arms

Hardware compatibility :
Not DJI compatible.
16x16mm motor patern only.
Micro camera only.
Nano RX only (Crossfire fits perfectly).
VTX not bigger than TBS Unify HV (Rush Tank Ultimate Plus is also perfect).
Depending the size of your battery and how you place it, you will not be able to use 5.1" props.

Take a look at how he flies !



Additional Information

NOTE :

The standoffs visible in the photos are not those provided in the kit.
You will need additional screws for your motors : M3 x 8mm (w/o soft-mount) to 10mm (with tpu soft-mount)
You will need to use two simple 16mm lipo straps.
To ensure a minimum clearance of the assemblies, the pieces are cut without tolerance and it is possible that you have to slightly file the cutouts of the top plate and the mid plate for a perfect assembly. Let me know if it's too annoying!


List of parts for my personal setup :

Flight controller : https://www.getfpv.com/flightone-cricket-revolt-osd-lite-flight-controller.html
4in1 ESC : https://www.getfpv.com/xilo-stax-45a-blheli-32-3-6s-4-in-1-esc.html
Motors : https://pyrodrone.com/collections/motors/products/hyperlite-2207-5-1722kv-hv-edition
Camera : https://www.getfpv.com/foxeer-predator-micro-v4-1000tvl-1-8mm-fpv-camera-plug-version.html
VTX : https://pyrodrone.com/collections/vtx/products/rush-tank-plus-vtx-5-8g-smart-audio-0-25-200-500-800mw-built-in-agc-mic
Video antenna : https://www.getfpv.com/vas-5-8ghz-minion-pro-mmcx-90-antenna-rhcp.html
RX : https://www.getfpv.com/tbs-crossfire-nano-rx-special-edition.html
Capacitor 35v 2200uf : https://www.ebay.fr/itm/10V-450V-High-Frequency-LOW-ESR-Radial-Electrolytic-Capacitor-10uF-10000uF-LCD/163790589961?hash=item2622ae1009:m:mapDoAM1qhit8huG9Na5MSg
Standoffs : https://pyrodrone.com/collections/hardware-and-bling/products/textured-aluminum-stand-off
Battery pads : https://www.team-blacksheep.com/products/prod:grip_pads
Battery straps : https://www.getfpv.com/hqprop-lipo-strap-large.html
Batteries : https://pyrodrone.com/collections/race-packs2/products/pyro-drone-graphene-1250mah-6s-22-2v-75c-by-who-cares
Propellers : https://www.getfpv.com/hqprop-ethix-s5-light-grey-props-set-of-4.html
HD Camera : https://gopro.com/fr/fr/shop/cameras/hero7%C2%A0black/CHDHX-701-master.html
