Kalos-88 Official Frame
K2 5mm Arms
Item List
-

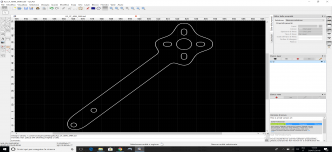

K2_CF_ARM_5MM
Quantity :4
-

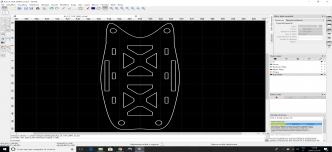

K2_CF_TOP_2MM
Quantity :1
-

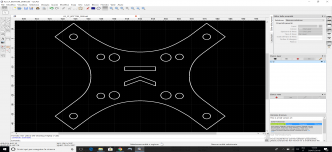

K2_CF_BOTTOM_2MM
Quantity :1
-

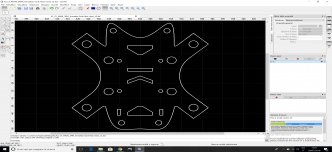

K2_CF_MAIN_2MM_Armattan Sunk Nuts Used
Quantity :1
-
M3 Stainless Steel Sunk Nuts (per piece)
Quantity :8
Description
This frame has been designed by ME, paying attention to weight, easiness of build process and also maintenance.
The result is a Lightweight Racing Drone that you will love from the first flight and that will let you forget about all the limits accepted on your current build. TRY TO BELIEVE
What is the name?
K2
MAIN Specs:
- Pure X (200mm motor to motor)
- 5mm separate arms
- 2mm for lower, main & top plate
- 20x20 hole pattern for esc & fc
- 25mm standoff
- lot of custom 3d printed parts available (cam mount, antenna mount, led mount, gopro mount, lower plate protector, etc...)
REMARKABLE Feauters:
-sunk nuts on the main plate (instead of classical nuts) for easy arms swap.
-fc and esc stack can be mounted after the bottom, arms and main plate are assembled, thanks to the pass-through holes on the bottom plate, which makes the build and the maintenance simpler than ever (no more arms and esc/fc using the same screws)
Part used this build:
- PROTON-X 2204 2750kv
- HGLRC 20x20 F438 Stack (fc + esc)
- FOXEER Predator Micro V2
- FRSKY R-Xsr
- TBS Unify Nano
- Realacc AXii (ufl.x version)
- DEMON PCB motor wires
- HQ Props 5043 V1S
- Turnigy Graphene 4s 1300mah 65c SQUARED
- 25mm aluminium standoffs
- 8mm and 10mm m3 screws
