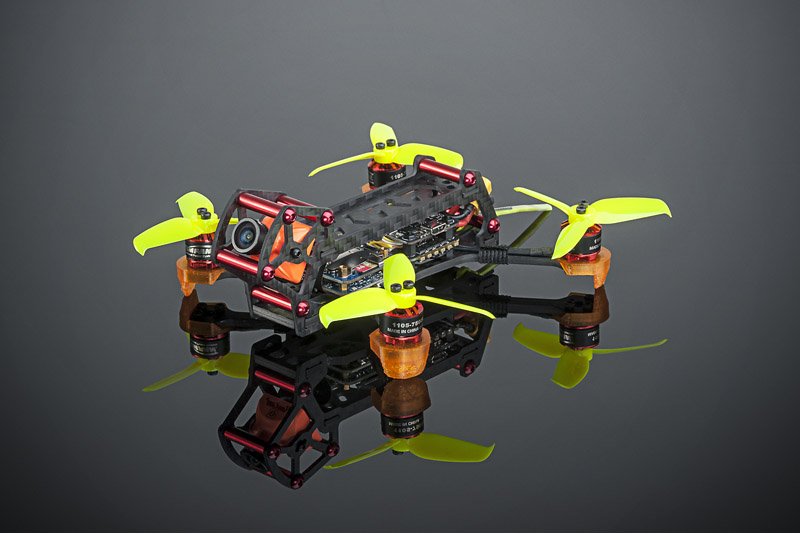

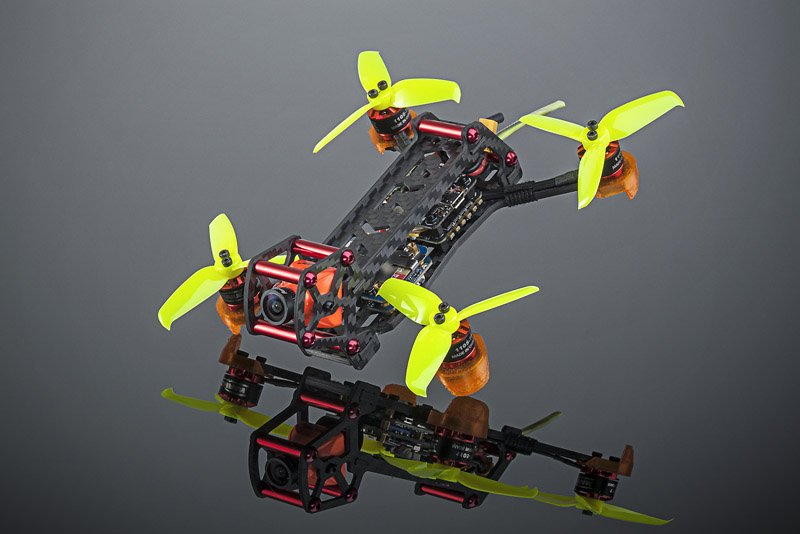

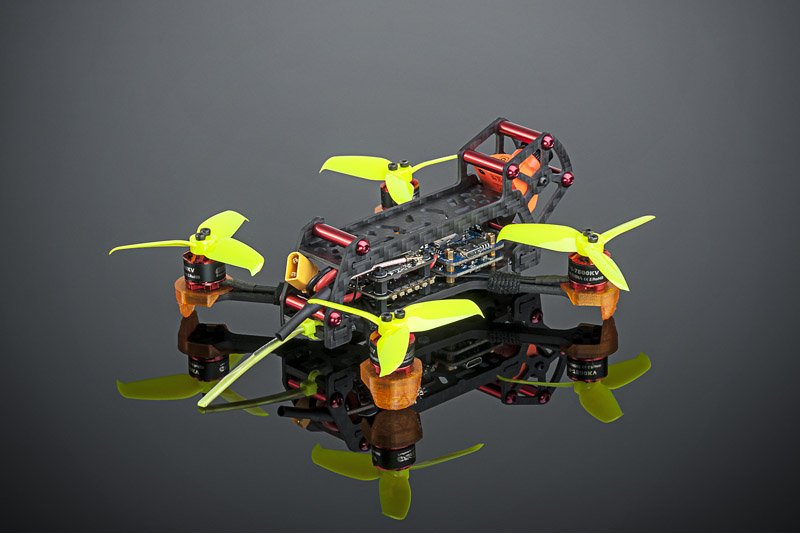

Created for FPV pilots who prefer smaller quads, would also like to capture HD FPV video without the need of carrying an action camera on top of the quad, now it comes with even smaller package by utilizing the Runcam Split Mini .


Design features:

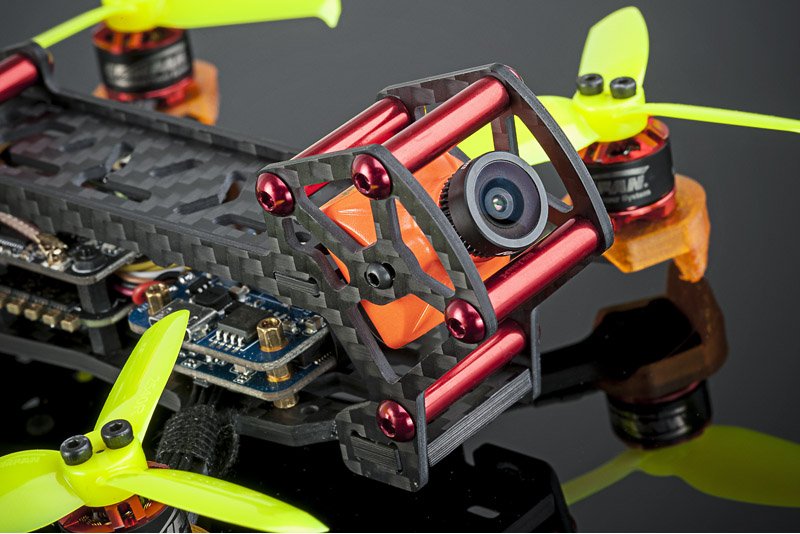

• Higher, extended camera position avoids props in view of HD footage.
• Cage style frame plates provide protection for the lens and electronics.
• Designed for 2.5" props powered by 11xx motors.
• True X motor layout.

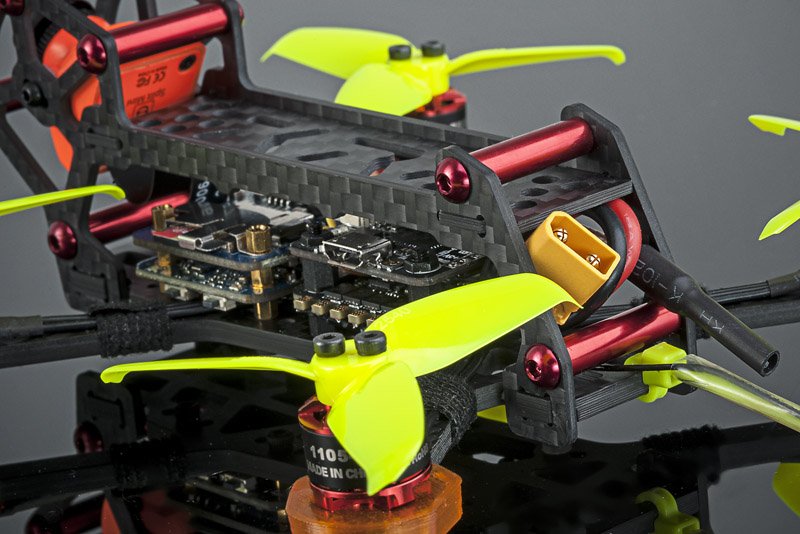

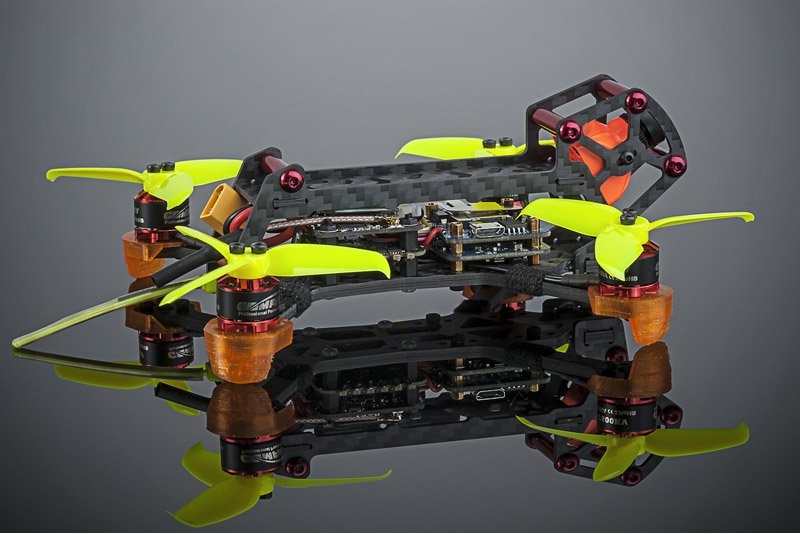

• Dual stack makes low profile design possible, combined with top mounted battery for improved handling.

PROTOTYPE TEST FLIGHT:

NOTE: This kit is at it's UNTESTED PROTOTYPE stage and made available at an introductory sale price.

This kit is tested(finally broke my own) and subject to change (read: redraw from scratch) but won't happen very soon, introductory price will continue until proper version is available.

Get 3D Printed Parts HERE

Kit includes:

• CAGE PLATE x2 ( 2mm )

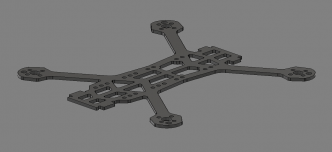

• MAIN PLATE ( 3mm )

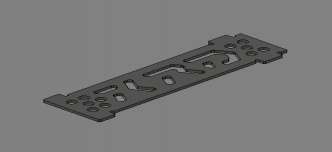

• TOP PLATE ( 1.5mm )

Please be informed hardware is not included, you will need:

• (6) 20mm M3 Standoffs
• (12) M3x5 or M3x6 Screws

You can find the required hardware on the "Hardware" link on the left if you don't have them.

Additional hardware:

• (2) 0.5mm washer/spacer for camera module

Recommended Components:

• FPV Camera: Runcam Split Mini (Obviously!)
• FPV VTX: Micro VTX
• Flight Controller: 20x20 mounting pattern Micro FC with small footprint (Mounting position for HGLRC Zeus is reserved but UNTESTED)
• Receiver: Micro receiver for your radio system of choice
• Power Distribution: N/A
• Motors: 11xx Sized, Preferable 1105 up, you will want 3S capable.
• ESCs: 20x20 mounting pattern 4 in 1 ESCs with small footprint
