Ashade
Nightmare 3
Price :
$
17.78
Propeller size :
3"
Item List
-

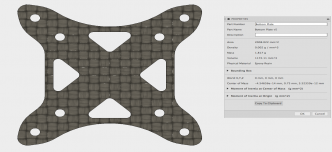

NIGHTMARE - Bottom Plate 1.5mm
Quantity :1
-

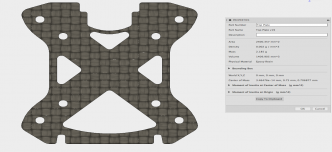

NIGHTMARE - Top Plate 1.5mm
Quantity :1
-

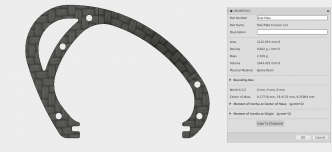

NIGHTMARE - Side Plate 1.5mm
Quantity :2
-

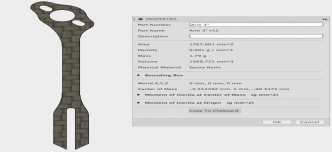

NIGHTMARE - Arm 3 4.0mm
Quantity :4
-

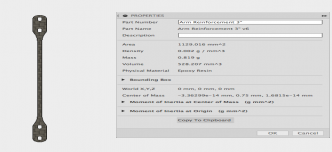

NIGHTMARE - Arm Reinforcement 3 1.5mm
Quantity :2
Description
THIS IS A PROTOTYPE! BUY AT YOUR OWN RISK! FRAME STILL NOT TESTED!
It's sold at cost for now for this very same reason. If you want to buy it, and give feedback, feel free to do so, but don't complain if something doesn't get together or you had to sand stuff to make it work. Replacement parts to fix the problems will show up in the near future.
An ultralight frame with replacable arms. It accept 11XX, 13XX and 14XX pattern motors.
BOM below:
| $173.45 | 177.70g | |||||
| TP | UP | # | TW | UW | ITEM | WEB |
| $0.00 | $0.00 | 1 | 1.48g | 1.82g | BOTTOM PLATE 1.0MM | |
| $0.00 | $0.00 | 1 | 1.48g | 2.19g | TOP PLATE 1.0MM | |
| $0.00 | $0.00 | 2 | 5.10g | 2.55g | SIDE PLATES 1.0MM | |
| $0.00 | $0.00 | 4 | 7.16g | 1.79g | ARM 4.0MM | |
| $0.00 | $0.00 | 2 | 1.64g | 0.82g | ARM REINFORCEMENT 1.0MM | |
| $1.81 | $0.60 | 3 | 1.05g | 0.35g | M2x19mm Two-way Knurled Aluminum | https://es.aliexpress.com/item/Diatone-2018-GT-R90-M2-8mm-M2-19mm-bidireccional-Moleteado-Aluminio-Enfrentamiento-Para-RC-Quadcopter-Repuesto/32842843653.html?spm=a2g0s.9042311.0.0.E5hBSb |
| $1.10 | $0.55 | 2 | 0.37g | 0.19g | M2x10mm | https://es.aliexpress.com/item/10pcs-M2-6-8-10-12-15-18-20-21-22-24-30-Thread-black-Colour/32780390306.html?spm=a2g0s.9042311.0.0.E5hBSb |
| $0.40 | $0.05 | 8 | 1.74g | 0.22g | M2 nylock nuts | https://es.aliexpress.com/store/product/50-unids-M2-M2-5-M3-M4-M5-M6-M8-de-Acero-Inoxidable-Nylock-Inserci-n/1255111_32855279867.html?ws_ab_test=searchweb0_0%2Csearchweb201602_2_10152_10151_10065_10344_10068_10130_10324_10342_10547_10325_10343_10546_10340_10548_10341_10545_10084_10083_10618_10307_5711211_10313_10059_10534_100031_10103_10627_10626_10624_10623_10622_5722411_10621_10620_5711313%2Csearchweb201603_37%2CppcSwitch_5&algo_expid=ac896f4d-c053-484c-8125-e1b31fca442e-6&algo_pvid=ac896f4d-c053-484c-8125-e1b31fca442e&transAbTest=ae803_3&priceBeautifyAB=0 |
| $0.31 | $0.03 | 10 | 1.40g | 0.14g | M2x4mm Button Head | https://es.aliexpress.com/store/product/Free-Shipping-ISO7380-M5-8-M5x8-Stainless-Steel-Hex-Hexagon-Socket-Button-Head-Pan-Head-Screw/937165_1846309705.html?ws_ab_test=searchweb0_0,searchweb201602_2_10152_10151_10065_10344_10068_10130_10324_10342_10547_10325_10343_10546_10340_10548_10341_10545_10084_10083_10618_10307_5711211_10313_10059_10534_100031_10103_10627_10626_10624_10623_10622_5722411_10621_10620_5711313-10152,searchweb201603_37,ppcSwitch_5&algo_expid=00c82dbc-3db4-4819-b511-7c199701eb90-19&algo_pvid=00c82dbc-3db4-4819-b511-7c199701eb90&transAbTest=ae803_3&priceBeautifyAB=0 |
| $0.29 | $0.04 | 8 | 2.06g | 0.26g | M2x8mm Socket Head | https://es.aliexpress.com/store/product/50Pcs-M1-6-M2-M2-5-M3-M4-DIN912-304-Stainless-Steel-Hexagon-Socket-Head-Cap/937165_32809158896.html?ws_ab_test=searchweb0_0,searchweb201602_2_10152_10151_10065_10344_10068_10130_10324_10342_10547_10325_10343_10546_10340_10548_10341_10545_10084_10083_10618_10307_5711211_10313_10059_10534_100031_10103_10627_10626_10624_10623_10622_5722411_10621_10620_5711313,searchweb201603_37,ppcSwitch_5&algo_expid=36e6500c-818f-4257-9e6a-e935f1e249a0-8&algo_pvid=36e6500c-818f-4257-9e6a-e935f1e249a0&transAbTest=ae803_3&priceBeautifyAB=0 |
| $0.15 | $0.04 | 4 | 1.39g | 0.35g | M2x10mm Socket Head | https://es.aliexpress.com/store/product/50Pcs-M1-6-M2-M2-5-M3-M4-DIN912-304-Stainless-Steel-Hexagon-Socket-Head-Cap/937165_32809158896.html?ws_ab_test=searchweb0_0,searchweb201602_2_10152_10151_10065_10344_10068_10130_10324_10342_10547_10325_10343_10546_10340_10548_10341_10545_10084_10083_10618_10307_5711211_10313_10059_10534_100031_10103_10627_10626_10624_10623_10622_5722411_10621_10620_5711313,searchweb201603_37,ppcSwitch_5&algo_expid=36e6500c-818f-4257-9e6a-e935f1e249a0-8&algo_pvid=36e6500c-818f-4257-9e6a-e935f1e249a0&transAbTest=ae803_3&priceBeautifyAB=0 |
| $0.16 | $0.04 | 4 | 1.54g | 0.38g | M2x12mm Socket Head | https://es.aliexpress.com/store/product/50Pcs-M1-6-M2-M2-5-M3-M4-DIN912-304-Stainless-Steel-Hexagon-Socket-Head-Cap/937165_32809158896.html?ws_ab_test=searchweb0_0,searchweb201602_2_10152_10151_10065_10344_10068_10130_10324_10342_10547_10325_10343_10546_10340_10548_10341_10545_10084_10083_10618_10307_5711211_10313_10059_10534_100031_10103_10627_10626_10624_10623_10622_5722411_10621_10620_5711313,searchweb201603_37,ppcSwitch_5&algo_expid=36e6500c-818f-4257-9e6a-e935f1e249a0-8&algo_pvid=36e6500c-818f-4257-9e6a-e935f1e249a0&transAbTest=ae803_3&priceBeautifyAB=0 |
| $59.80 | $59.80 | 1 | 6.50g | 6.50g | HGLRC XJB F428 Micro | https://es.aliexpress.com/store/product/XJB-F428-Micro-F4-AIO-OSD-BEC-Flight-Controller-6-5g-20x20mm-28A-Blhel-S-BB2/2787160_32831450055.html?ws_ab_test=searchweb0_0,searchweb201602_2_10152_10151_10065_10344_10068_10130_10324_10342_10547_10325_10343_10546_10340_10548_10341_10545_10084_10083_10618_10307_5711212_10313_10059_10534_100031_10103_10627_10626_10624_10623_10622_10621_5722412_10620_5711313,searchweb201603_37,ppcSwitch_5&algo_expid=a1131606-66bc-40ad-8227-455f39504e8d-0&algo_pvid=a1131606-66bc-40ad-8227-455f39504e8d&transAbTest=ae803_3&priceBeautifyAB=0 |
| $15.19 | $15.19 | 1 | 4.60g | 4.60g | AKK FX3(20x20 smart audio) | https://www.akktek.com/products/vtx/akk-fx3.html |
| $2.29 | $2.29 | 1 | 2.00g | 2.00g | MMCX 5.8GHG 3dBi FPV Antenna | https://www.banggood.com/Original-MMCX-5_8GHG-3dBi-FPV-Antenna-for-PandaRC-VT5804VT5804PROVT5804V2-p-1226703.html?rmmds=search&cur_warehouse=CN |
| $17.99 | $17.99 | 1 | 4.60g | 4.60g | Caddx Turbo Micro F1 1/3" CMOS 2.1mm 1200TVL | https://www.banggood.com/Caddx-Turbo-Micro-F1-13-CMOS-2_1mm-1200TVL-169-NTSCPAL-Low-Latency-FPV-Camera-4_5g-p-1224248.html?rmmds=search&cur_warehouse=CN |
| $55.99 | $14.00 | 4 | 72.00g | 18.00g | Sunnysky R1408 3800kv | https://es.aliexpress.com/store/product/Sunnysky-4-unids-R1408-1408-3200KV-2-4-S-CW-CCW-Motor-3800KV-Motor-Sin-Escobillas/1825249_32844637772.html?ws_ab_test=searchweb0_0%2Csearchweb201602_2_10152_10151_10065_10344_10068_10130_10324_10342_10547_10325_10343_10546_10340_10548_10341_10545_10084_10083_10618_10307_5711212_10313_10059_10534_100031_10103_10627_10626_10624_10623_10622_10621_5722412_10620_5711313%2Csearchweb201603_37%2CppcSwitch_5&algo_expid=3a785676-0e2a-4243-97d1-59cda52b157b-0&algo_pvid=3a785676-0e2a-4243-97d1-59cda52b157b&transAbTest=ae803_3&priceBeautifyAB=0 |
| $2.99 | $0.75 | 4 | 6.60g | 1.65 | Gemfan Flash 3052 lake blue | https://www.banggood.com/2-Pairs-Gemfan-Flash-3052-PC-3-blade-Propeller-5mm-Mounting-Hole-for-1306-1806-Motor-RC-FPV-Racing-Drone-p-1179233.html?rmmds=search&cur_warehouse=CN |
| $14.99 | $14.99 | 1 | 55.00g | 55.00g | Tattu 14.8V 450mAh 75C 4S Lipo | https://www.amazon.com/gp/product/B072J69HCW?tag=rotor-builds-20 |
