BarraCuda 210 v1.1 Mini Quadcopter Frame Kit
Price :
$
51.48
Propeller size :
5"
Item List
-
BarraCuda210 V1.1 Camera Plate
Quantity :2
-

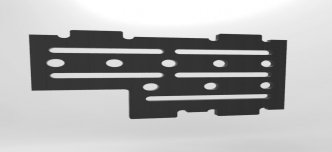

BarraCuda210 V1.1 Spine Plate
Quantity :1
-
BarraCuda210 V1.1 4mm Arm
Quantity :4
-
BarraCuda210 V1.1 Top Plate
Quantity :1
-
BarraCuda210 V1.1 Bottom Plate
Quantity :1
-
BarraCuda210 v1.1 Optional Bracing Plate
Quantity :1
-
30mm M3 F/F Alumi Tapped Stepped Standoff Black Anodized 6.3mm O.D.
Quantity :4
-
7mm M3 Steel Button Head Bolt Black Anodized
Quantity :8
-
12mm M3 Steel Button Head Bolt Black Anodized
Quantity :12
-
M3 Nylon Insert Nut Black Anodized (Nylock)
Quantity :12
-
M3 Nylon Nuts (per piece)
Quantity :8
-
6mm M3 M/F Nylon Standoff (per piece)
Quantity :4
Description

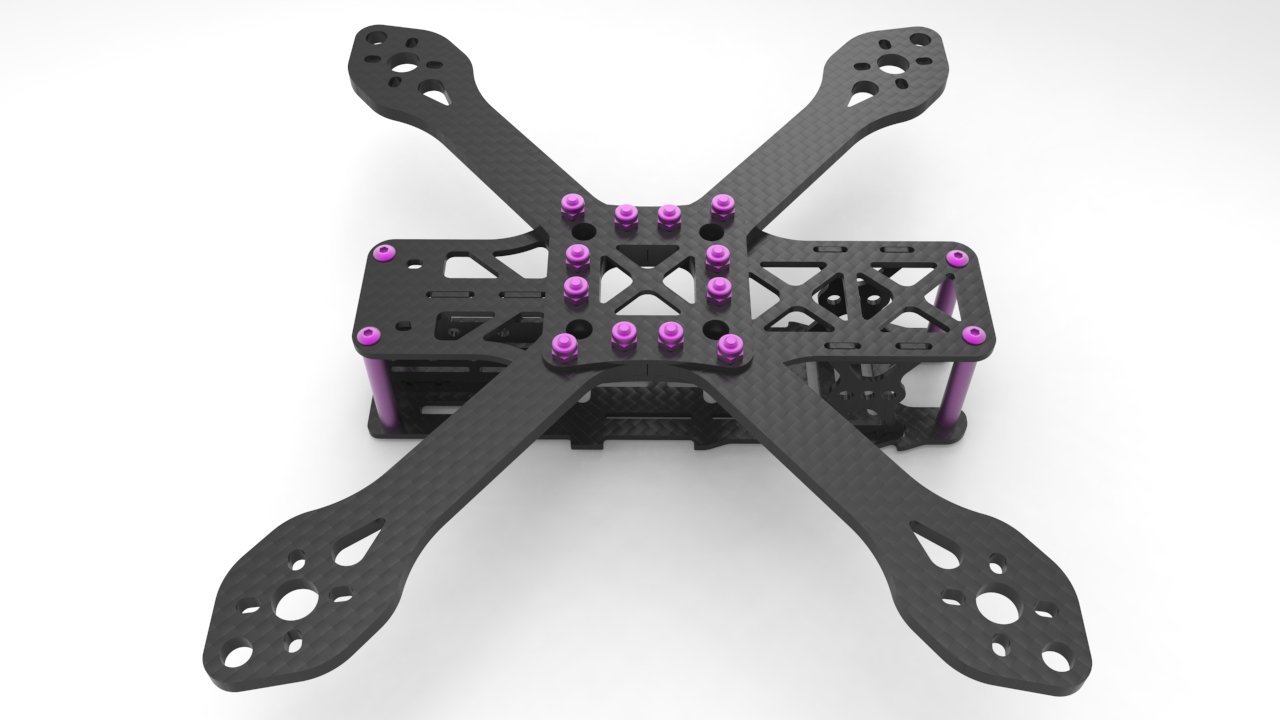

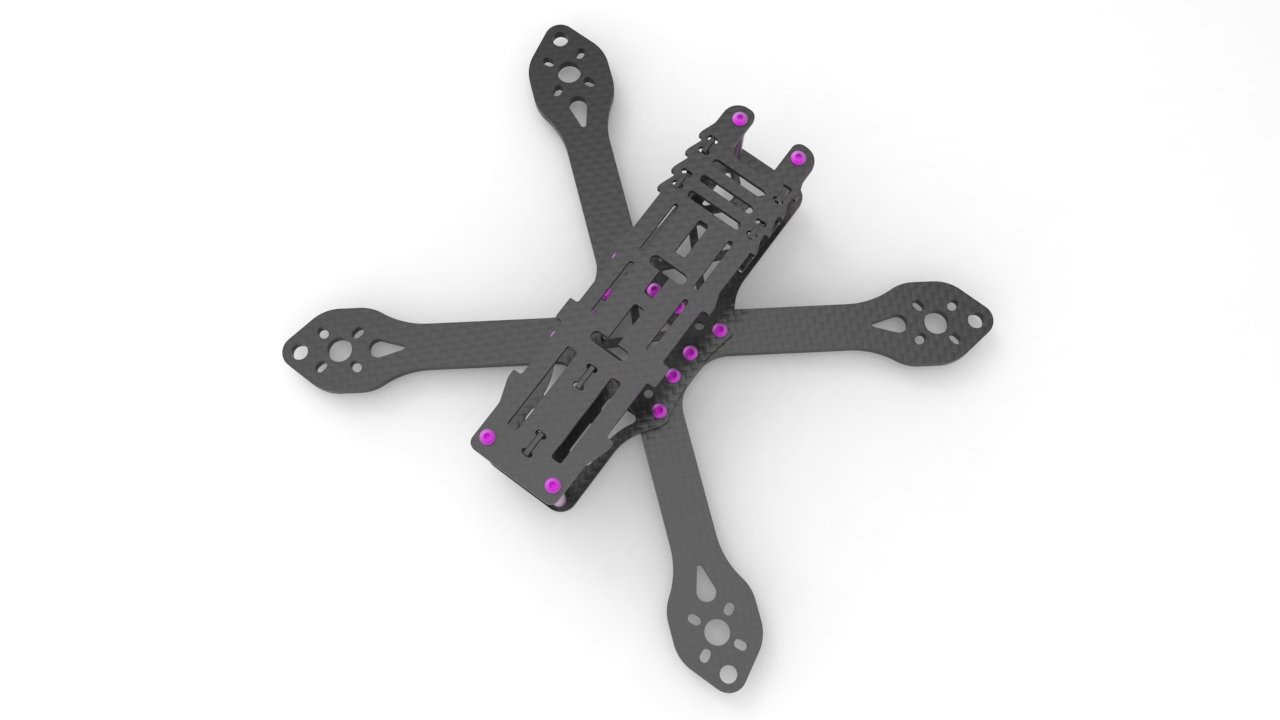

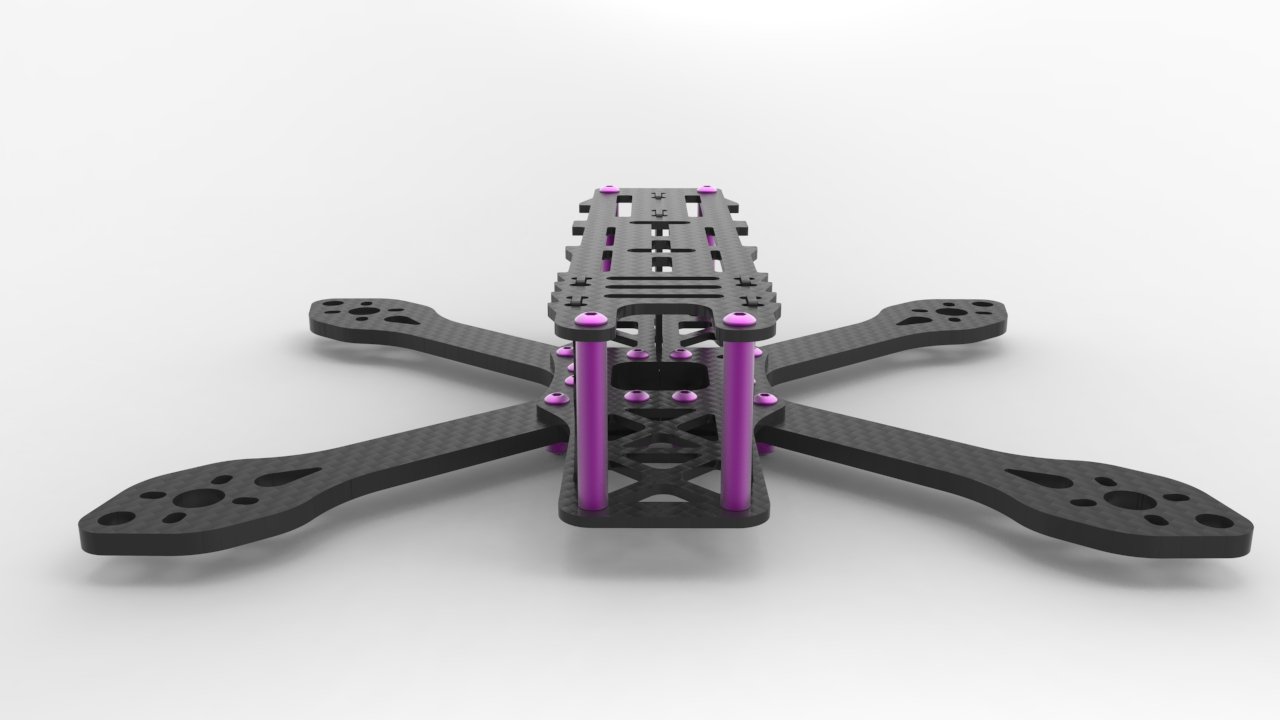

Introducing the BarraCuda 210 v1.1
- An X frame design with 210mm motor to motor
- A unique Spine plate for better mounting options and a cleaner build
- Cutout & holes for mounting an XT60 using this holder
- Support for 5 inch props
- Camera side plates to support HS1177 style camera
- Super rigid & strong yet light weight construction
- 2mm thick Top & Bottom Plates
- 4mm thick Arms
- Includes optional bracing plate for those who push the envelope and need extra crash protection
- Weight is 103g incl. hardware
- Motor mount hole support for 18xx to 22xx
- 30.5mm spacing for PDB and Flight controller mounting.
(Please note the purple anodized hardware shown is not currently available directly from Armattan Productions but is available from various other online stores. Standard steel hardware and black aluminum standoffs are supplied in this kit.)
Spare parts can be purchased separately in my store
