KRD HD3 KIT 1.0F ( 155 TRUE X / 3MM )
Price :
$
33.14
Propeller size :
3"
Item List
-
KRD HD3 MAIN PLATE 1.0F ( 155MM True X 3MM )
Quantity :1
-
KRD HD3 TOP PLATE 1.0E ( Plain 2MM )
Quantity :1
-
KRD HD3 Camera Plate 1.01E
Quantity :2
-
KRD HD3 REAR PLATE ( Echo 2MM )
Quantity :1
-
20mm M3 F/F Alumi Tapped Stepped Standoff Black Anodized 5.5mm O.D.
Quantity :3
-
6mm M3 Steel Button Head Bolt Black Anodized
Quantity :7
-
7mm M3 Steel Button Head Bolt Black Anodized
Quantity :3
Description

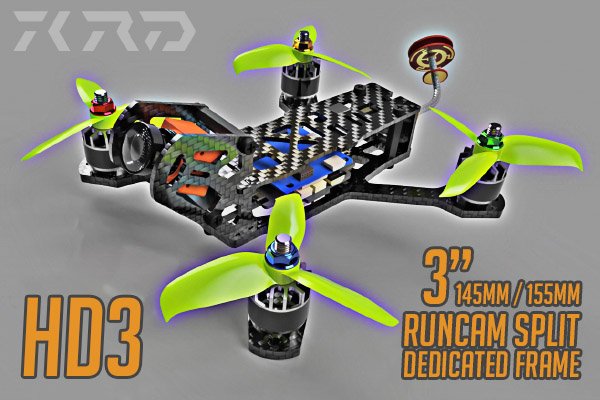

KRD HD3 155 Kit (155 True X / 3mm )
Created for FPV pilots who prefer smaller quad, who still want to capture HD FPV video without the need of carrying an action camera on top of the quad, by utilizing the Runcam Split .
Maiden flight of earlier version:
Design features:
- Higher, extended camera position avoids props in view of HD footage.
- Camera mount plates provide protection around the lens, compatible with BOTH standard and GoPro style lens.
- Designed for 3" props powered by 13xx/14xx motors.
- 155mm Motor to Motor True X design
- Wide arms version for Single ESCs
- Designed for top mounted battery configuration, while you can still bottom mount if you insist...
Additional Information
Get 3D Printed Parts HERE
1.0F Main Plate Update:
- Slightly wider arms for better strength and easier ESC placement (11mm)
- Slightly beefier arm-body joining geometry for better strength
- Slighty smaller motor mounting area for weight recudtion
- Balance of strength and weight between two 1.0E models
Kit includes:
- CAMERA PLATE x2
- MAIN PLATE ( 155MM TRUE X 3MM )
- REAR PLATE ( ECHO 2MM )
- TOP PLATE ( PLAIN 2MM )
- Hardware Kit
NOTE: 2 pcs of washers/spacers/O-rings (1mm thick, M2 thru hole) required for mounitng camera, soft material is recommended for vibration dampening purpose.
Recommended Components:
- FPV Camera: Runcam Split (Obviously!)
- FPV VTX: Any small VTX with SMA extension
- Flight Controller: Any 30.5x30.5 FC with built in PDB / AIO FC
- Power Distribution: N/A
- Motors: 1407 sized, 3100kv+
- ESCs: Single ESCs with small footprint (EMAX Bullet / HGLRC BS28A / etc.) / Built-in ESCs on FC
