EAM5892 - CameraCopter
CC208S
Price :
$
40.00
Propeller size :
5"
Item List
-

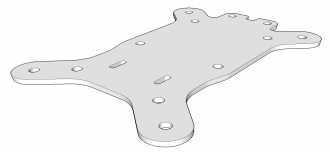

TP_CC208S
Quantity :1
-

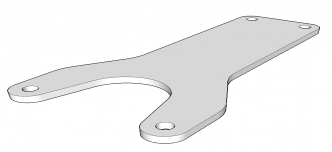

MP_CC208S
Quantity :1
-

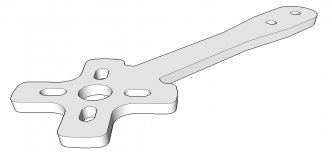

ARM - CC208S - 4mm
Quantity :8
-
M3 Nylon Insert Nut Black Anodized (Nylock)
Quantity :6
-
16mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
-
12mm M3 Steel Button Head Bolt Black Anodized
Quantity :14
Description

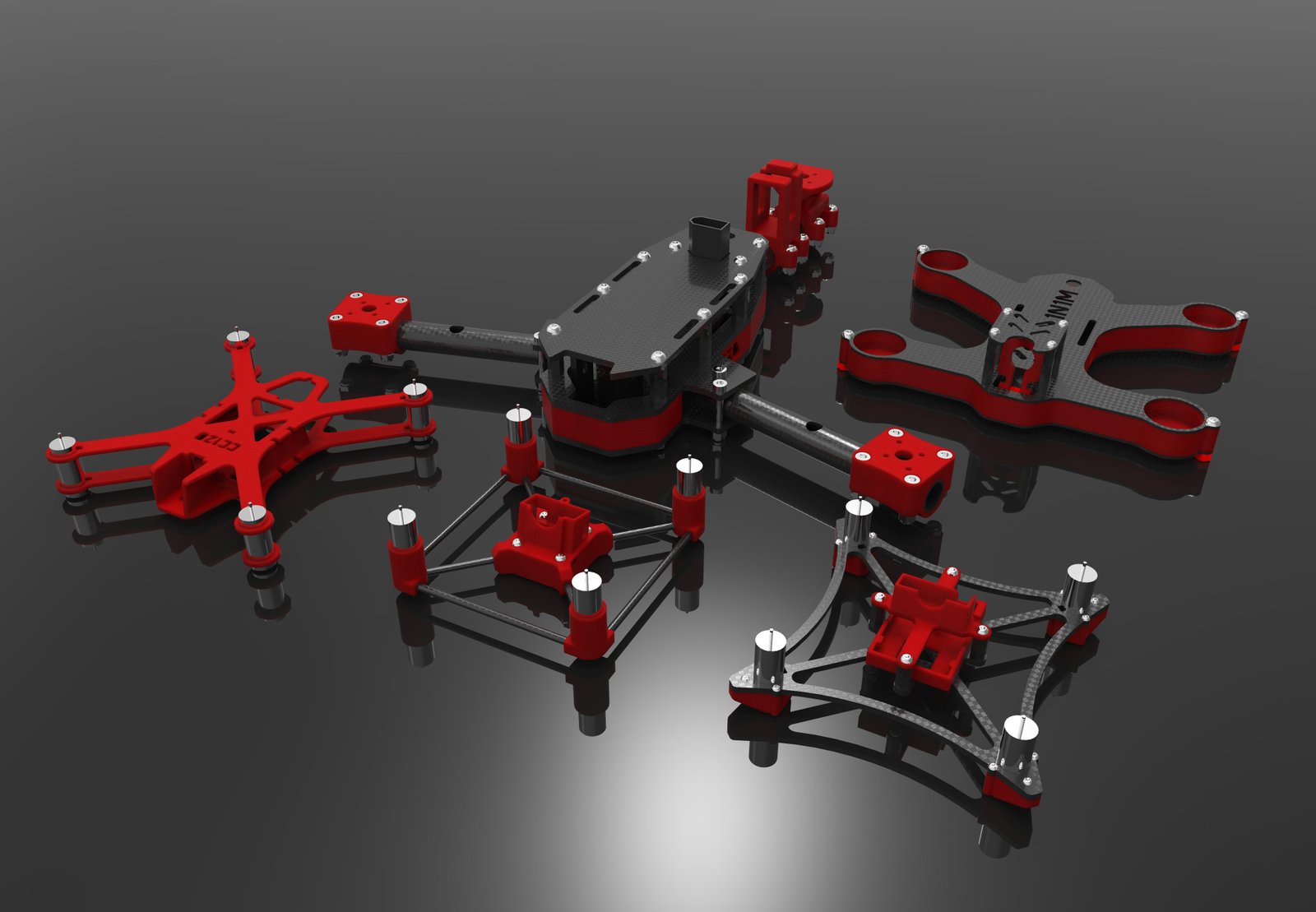

Based in the HyperFloss concept, this frame is designed towards efficiency and arm drag reduction, as well as making it an overall solid and easy to build machine, achieved with the 3D printable pieces designed speciffically for it.
To complete the frame you'll need the following standoffs: - 2 x 30mm
- 2 x 25/26mm (it doesn't affect the final assembly at all)
- (Optional: M3 flanged nuts)
The 3D pieces can be downloaded for free by following the link:
Review Section ( Total Review:1 )
RAFAEL IZQUIERDO LOPEZ
The best frame, lightest & hardest
