Space Cowboy Quad Racers
Lightweight racing focused quad copters designed by Space Cowboy Drone Design. Our goal is to create designs with the best mix of strength and well thought out component placement rolled into a competitive light weight package.
ATTENTION: SCX-200 V2.1 kits and parts now available.
SCX-200 V2.1 available now! SCX-175 and SCX-230 V2.1 (4" and 6" configurations) are coming very soon too!
ATTENTION: All kits purchased through this store are made to order.
Kits listed here are custom made and are not kept in stock. Expect 7-14 business days for production prior to shipment. Any questions regarding your order should be directed to support@armattanproductions.com, technical or design questions can be directed to me via the e-mail link in the upper right. If you are looking to get your hands on a SCX-200 quickly please check out Armattan Lite SCX-200 at http://www.armattanquads.com/scx-200/, this version of the frame comes in two brilliant color combos and is stocked directly by Armattan and it's distributors.
SCX2 Micro Racer Kit
Item List
-
SCX-MICRO CAM PLATE V3
Quantity :2
-
SCX NANO TOP PLATE V2
Quantity :1
-
SCX 100 BASE PLATE V2
Quantity :1
-
25mm M3 F/F Alumi Tapped Standoff Black Anodized 5.5mm O.D.
Quantity :4
-
5mm M2 Steel Cap Head Bolt Black Anodized (per piece)
Quantity :2
-
6mm M3 Steel Button Head Bolt Black Anodized
Quantity :8
Description

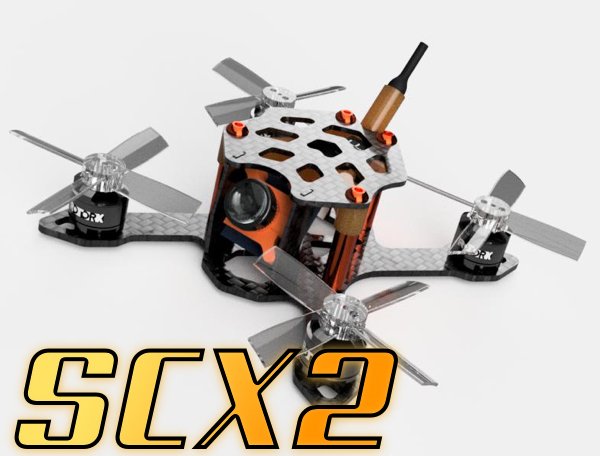

SCX2 Micro Racer Kit for 2" Props!
For 2" props and standard 110x size motors. Designed to work with the new wave of Micro CCD cameras including the Runcam Micro Swift and the Foxeer Micro Arrow in combination with the popular VTX03 switchable video transmitter. This frame is intended for use with 20x20mm mounting components, and works best with individual ESCs and an combined FC/PDB. Due to space I would highly recommend limiting your stack to two or less boards, and due to the multitude of possible FC stack configurations mounting hardware is not included in the kit, so make sure to shop Armattan Productions and choose what you think you will need.
Downloadable STL 3D print file for the VTX03 transmitter can be found here: https://www.thingiverse.com/thing:2479572
Prototype Pictures:
Additional Information
Suggested Components:
FPV Camera: Foxeer Micro Arrow or Runcam Micro Swift (19mm wide)
FPV VTX: VTX03
Flight Controller: 20x20mm FC or FC/PDB
Motors: 110x size motors
Props: 2" Max
