3DPOWER HK FPV Racing Drone
SANW-228-SX V8 Stretch X Kit
Item List
-

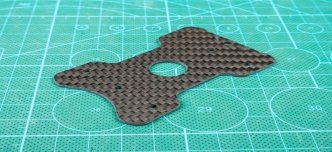

SANW-228 V8 BOTTOM TOP PLATE
Quantity :1
-
SANW-228 V8 BOTTOM BOTTOM PLATE
Quantity :1
-
SANW-228 V6 TOP PLATE
Quantity :1
-
SANW-228 v6 ARM 4mm
Quantity :4
-
M3 Stainless Steel Sunk Nuts (per piece)
Quantity :6
-
20mm M3 F/F Alumi Tapped Stepped Standoff Black Anodized 5.5mm O.D.
Quantity :4
-
16mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
-
10mm M3 Steel Button Head Bolt Black Anodized
Quantity :2
-
6mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
Description
Runcam Swift Micro camera mount can be downloaded at https://www.thingiverse.com/thing:259020
Update:
Slot for Capacitior mounting
Only one screw is needed to remove for arm replacement
Strengthen the bottom plate
Specification:
Frame Size: 228mm motor to motor
Layout: Stretch X
Lower Plate: 2mm Carbon
Top Plate: 2mm Carbon
Arm: 4mm Carbon
Max Prop size: 5.5"
Weight: ~78g (can be lighter with aluminum hardware)
Features:
- Full 3K Carbon Fiber
- Super light weight of frame - ~78g
- Assembled weight of ~280g without battery , ~400 g including 4S 1300mAh 70C battery
- Compatible with RunCam Swift Mini / Micro with 2.1/2.3 wide angle lens
Recommended Setup:
3DPOWER SANW-228-SX Stretch X Kit
CL Racing F4 FC PDB OSD AIO
Spedix GS30 30A Dshot1200 BlHeli 32 bit ESC
BrotherHobby R2 2205 2600kv Motor
HQ Props 5043 5x4.3x3 Propellers
RunCam Swift Micro 2
Matek 5.8G Video Transmitter VTX-HV
Frsky XM+
PANASONIC FM Series 1000UF 35V LOW ESR CAPACITOR
