TAT-RC 215 One V1.03
Item List
-
TOP
Quantity :1
-
CAMERA MOUNT
Quantity :2
-
Buttom plate
Quantity :1
-
7mm M3 Steel Button Head Bolt Black Anodized
Quantity :12
-
8mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
-
30mm M3 F/F Alumi Tapped Stepped Standoff Black Anodized 6.3mm O.D.
Quantity :8
-
M2 Nylon Washer (per piece)
Quantity :12
Description
TAT-RC 215 One
This frame is designed specifically for racing and freestyle. The main emphasis is on strength. The bottom plate is made of 4mm carbon fiber with a minimum number of slots. Top plate - 2mm carbon fiber. The size of the propellers - 5'.The distance between the motors diagonally 215 mm. Other sizes can be seen in the screenshot. If you want to adjust mmix, in the CLI on Cleanflight Configurator enter the following commands:
mixer custom mmix reset mmix 0 1 -1 0.787 -1 mmix 1 1 -1 -0.787 1 mmix 2 1 1 0.787 1 mmix 3 1 1 -0.787 -1
If you have any comments, you can send them to me by email - cvk98@ya.ru
rev. 1.02 - Fixed minor issues identified in the test instance.
rev. 1.03 - Minor changes at the bottom plate
For more information please visiv http://www.rcgroups.com/forums/showthread.php?t=2686467
Additional Information

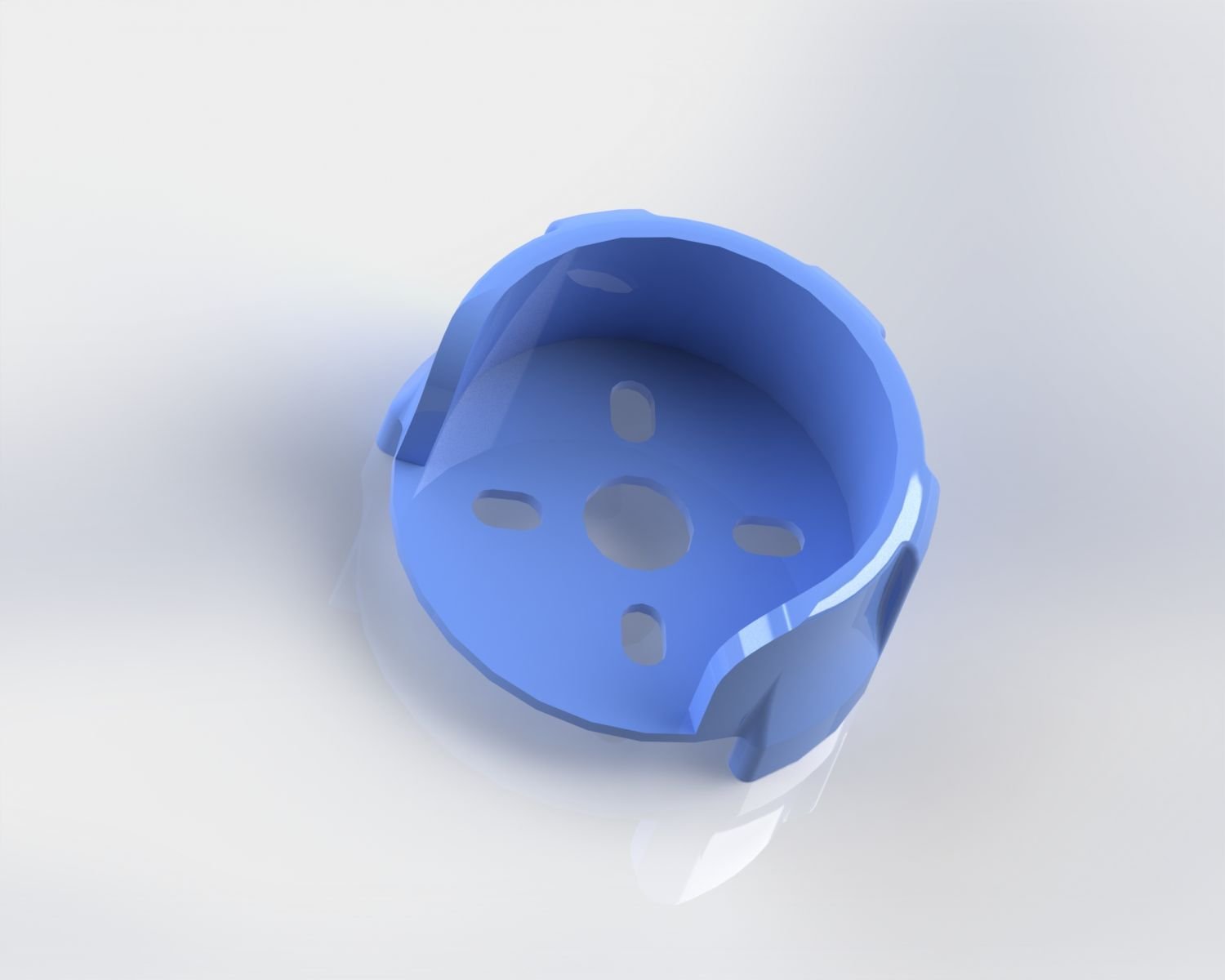

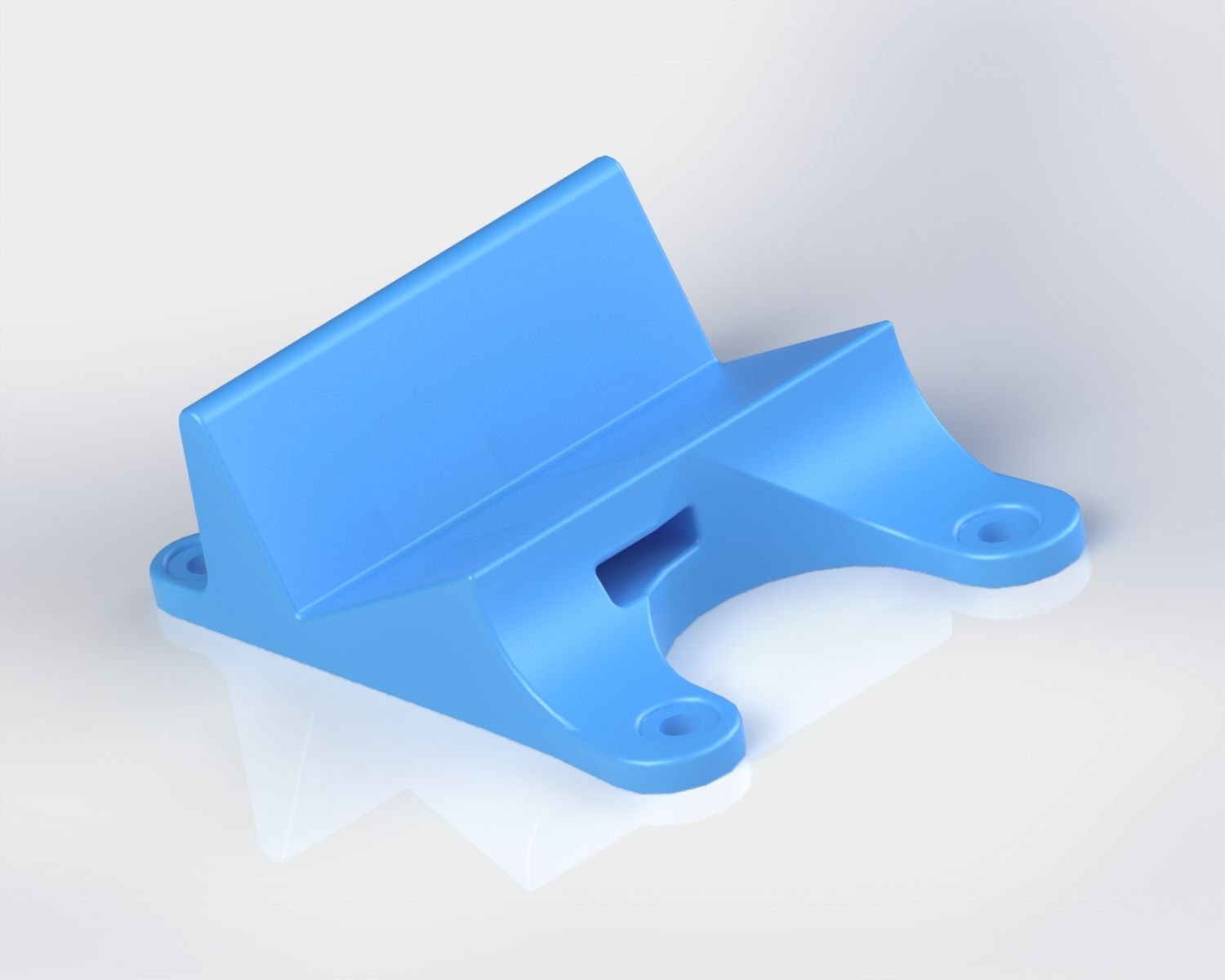

If you want to model protection of motors or camera equipment please click here:
http://www.thingiverse.com/thing:1621548
http://www.thingiverse.com/thing:1621573
