Verdin 147 - Acro
Item List
-
VERDIN 147 - MAIN PLATE Rev2
Quantity :1
-
Verdin Acro - Top Plate (2mm)
Quantity :1
-
20mm M3 Steel Button Head Bolt Black Anodized
Quantity :4
-
Quantity :4
-
M3 Nylon Insert Nut Black Anodized (Nylock)
Quantity :4
-
-
7mm M3 Steel Button Head Bolt Black Anodized
Quantity :20
Description

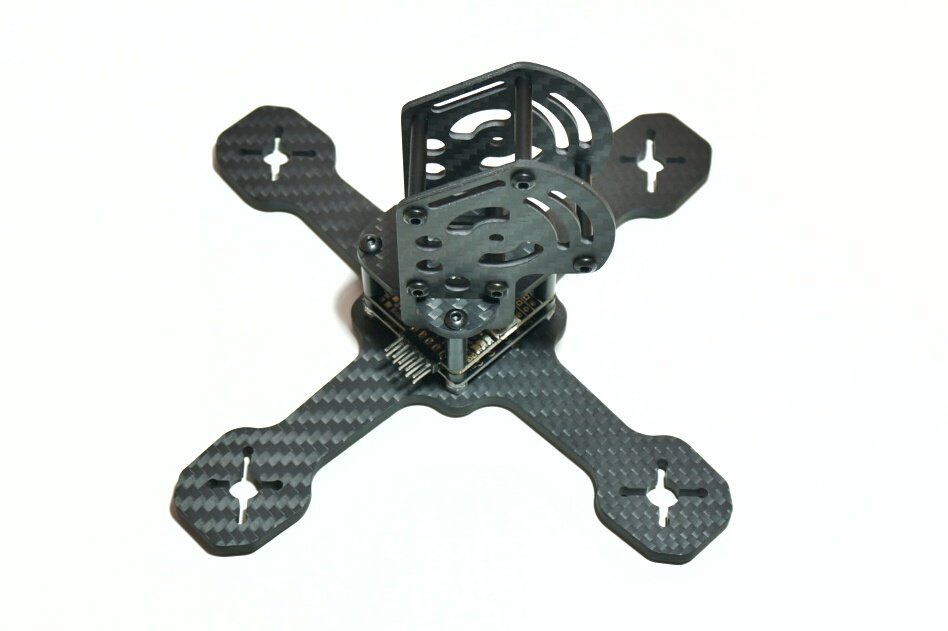

The compact frame version for 4" prop with 147mm motor to motor distance.
Sturdy undestructible unibody frame with 4mm thickness.
FC mount at 45degree orientation. Need to make Yaw Adjusment in Cleanflight.
Motor mount is designed to accept any size of mini motor using M2 or M3 screw (1306, 1806, 2204, 2206, 2208) while keeping motor wire inline with esc and frame arm.
Additional Information
Frame size: 147mm motor to motor
Propeller: Max 4" prop
FC Mount: 30.5mm x 30.5mm (45degree orientation)
Motor mount: 1306, 1806, 2204,2205, 2206, 2208 (M2 and M3 screws)
Frame thickness: 4mm
Top Plate Thickness: 2mm
Frame Dimension
.PNG)
Friendly Reminder
1. Please make sure Yaw Adjustment are made through Cleanflight - 45degree or 315degree based on FC orientation
2. Please double check which is Front side of your frame by looking at Cleanflight screen - by pitch/roll your frame manually.
FPV POD
This is ACRO FRAME.
The FPV pod prototype is still under study and testing.
For HS1177 camera. Hole to strap Mobius/Runcam
.jpeg)
